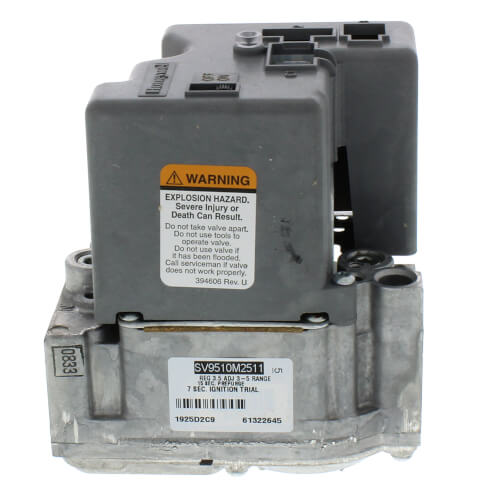

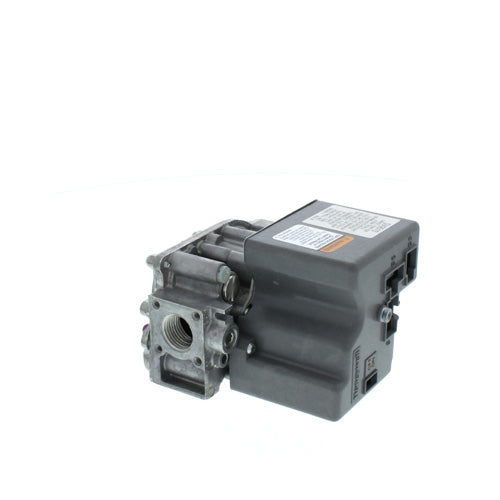

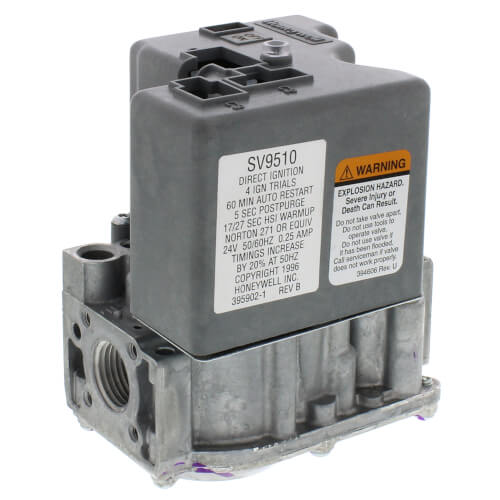

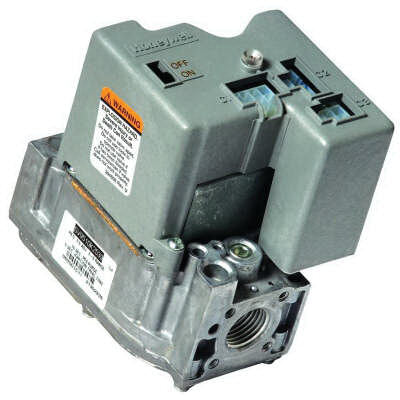

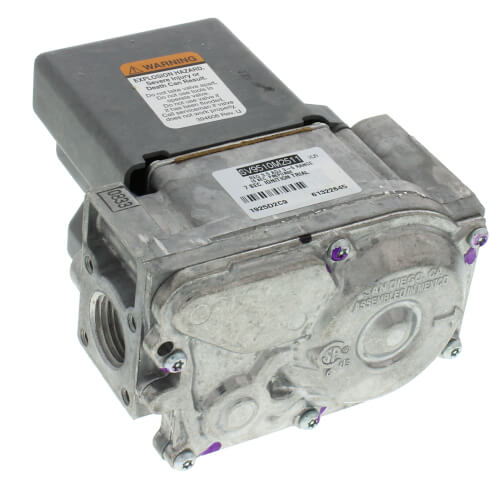

Resideo SV9510M2511 SmartValve Control System for Natural/LP Gas 1/2 inch 24 VAC

Product Description

The Resideo SV9510M2511 SmartValide System Controls are designed to simplify and enhance boiler and furnace operations. Combining gas flow control and electronic ignition sequencing in one compact unit, this device is suitable for a wide array of applications including furnaces, rooftop furnaces, and commercial cooking appliances.

• Integrates directly with ST9160 EFT for optimal furnace performance
• Direct hot surface ignition system ensures reliable operation
• Diagnostic LED for quick system status assessment

Product Highlights

Operates with a 24 VAC power source and includes a 120 Vac combustion air blower. It supports multiple ignition trials with auto-reset from lockout ensuring dependable use. This model also offers both prepurge and postpurge functions which help maintain device integrity and longevity.

Product Information

Standard Information

• Fuel Type: Natural/LP Gas
• Ignition Type: Hot Surface
• Pressure: 1/2 psi Max Pressure Rating, set at 3.5 in. wc.

Technical Specifications

• Connection: 1/2 inch NPT Inlet and Outlet
• Electrical Ratings: 24 Vac, 60 Hz
• Capacity: Maximum 200 ft³/hr
• Temperature Range: -40 F to +175 F
• Mounting: 0 to 90 degrees orientation flexibility
• Dimensions: 3.2 inches wide x 4.9 inches high x 4.1 inches long
