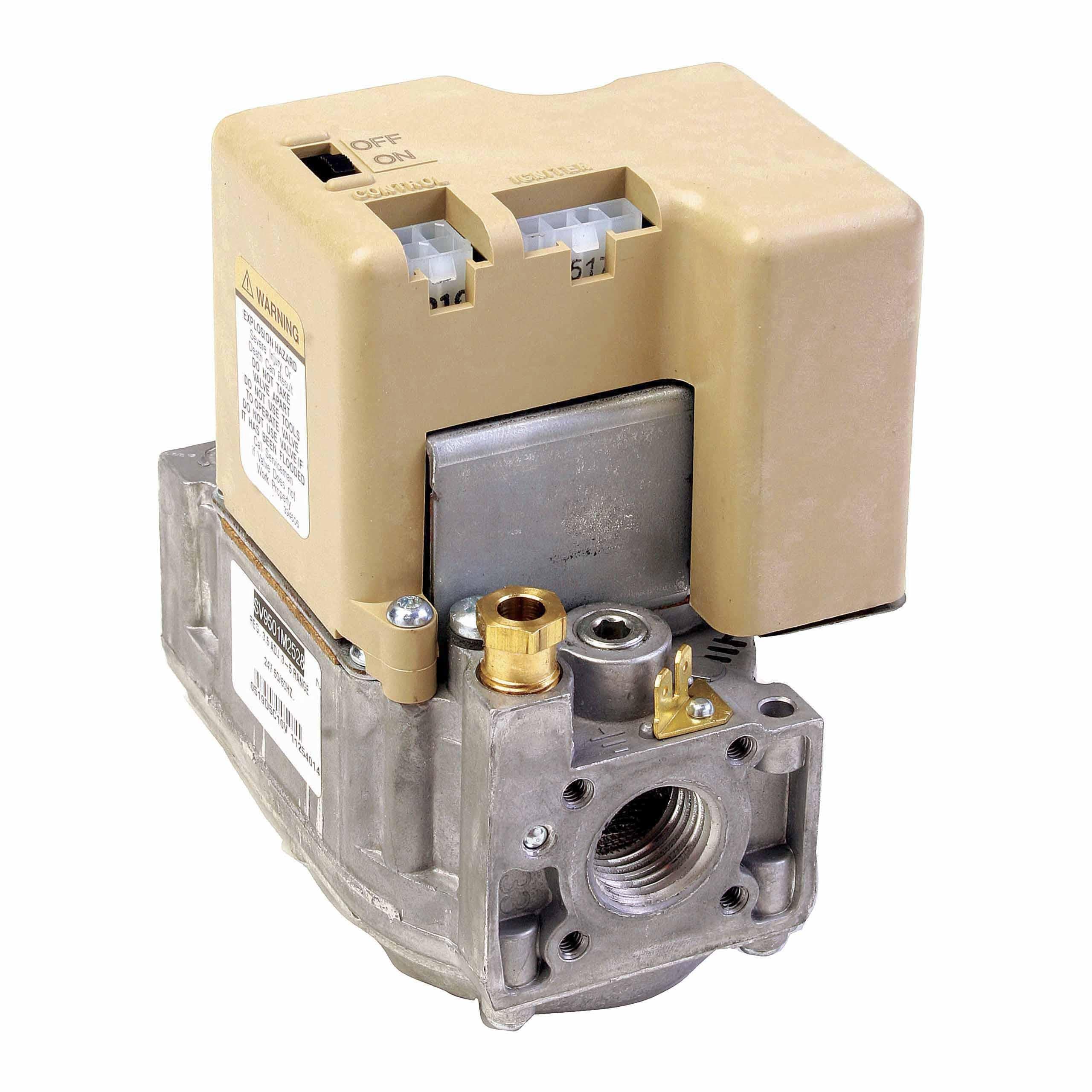

Resideo SV9502H2522/U Gas Valve SmartValve 1/2 in Nominal Intermittent Hot Surface Pilot Ignition

Product Description

The Resideo SmartValve SV9502H2522/U is a gas valve designed for a variety of heating applications. This valve utilizes intermittent hot surface pilot ignition, suitable for natural gas systems. The nominal size is one half inch with a pressure rating of 0.5 psi. A temperature range is from zero to one hundred seventy-five degrees Fahrenheit, ensuring reliable operation across different environments.

• Intermittent pilot ignition for efficiency
• Compatible with various gas-fired appliances
• Designed for easy installation and replacement

Product Highlights

This valve is ideal for residential and commercial applications. It controls gas flow effectively, ensuring safety and efficiency in gas-fired systems.

Product Information

Standard Information

• Brand: Resideo
• MPN: SV9502H2522/U

Technical Specifications

• Series: SV9502
• Gas Type: Natural
• Nominal Size: 1/2 in
• Coil Voltage: 24 VAC 50/60 Hz
• Pressure Rating: 0.5 psi
• Nominal Capacity: 0.6 to 5.7 cu-m/hr
• Temperature Rating: 0 to 175 deg F
• Dimensions: 4.1 in L x 3.2 in W x 4.9 in H
• Country of Origin: MX
• Manufacturer Name: Resideo Technologies
