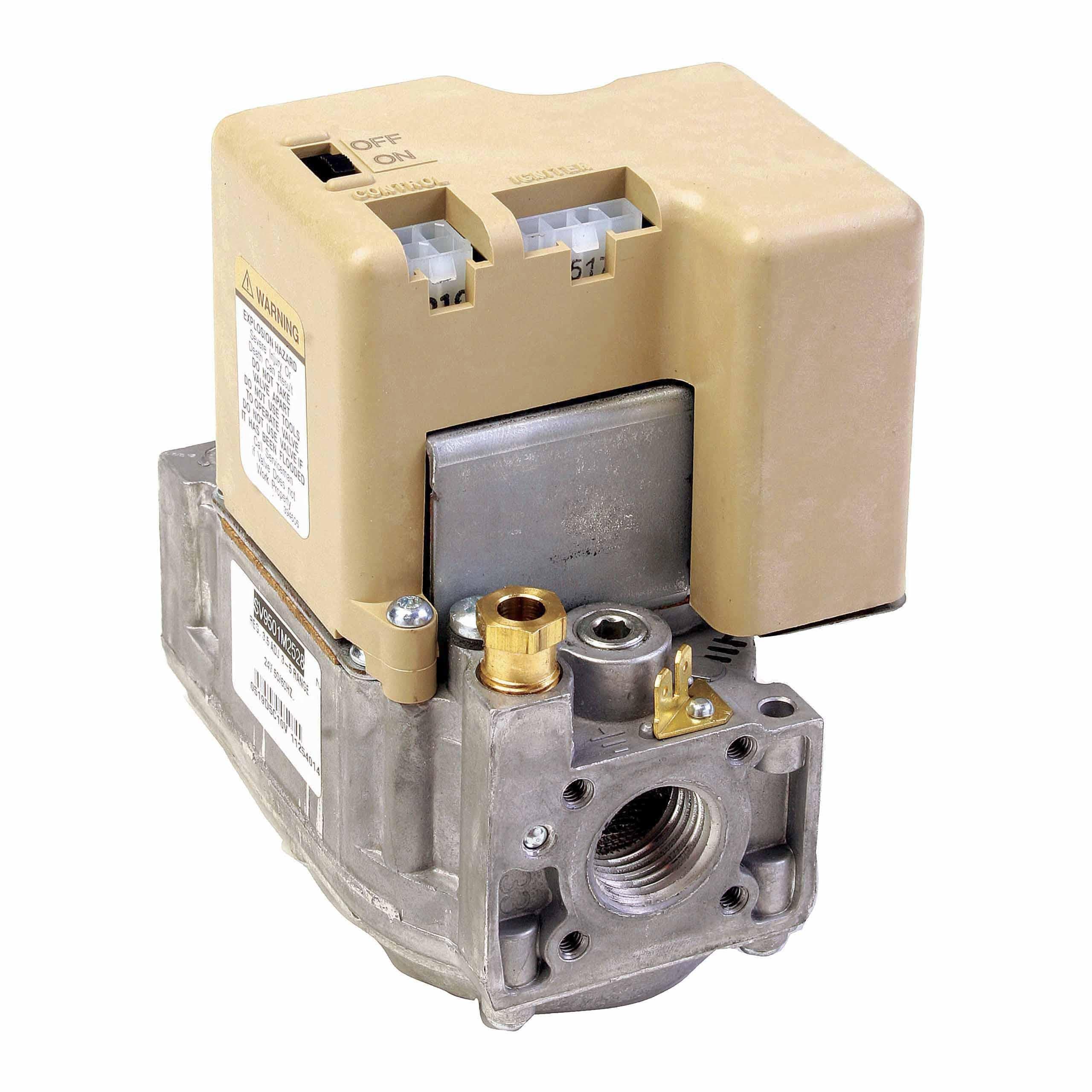

Resideo SV9501M8129/U Gas Valve SmartValve, 1/2 in Nominal, Natural Gas, 24 VAC 50/60 Hz Coil

Product Description

The Resideo SmartValve SV9501M8129/U is a gas valve designed for intermittent pilot ignition systems. It is ideal for various gas-fired appliances, including residential furnaces, boilers, and heaters. The design incorporates both gas flow control and electronic pilot sequencing.

• 1/2 inch nominal size for easy integration
• Natural gas compatibility with a coil voltage of 24 VAC at 50/60 Hz
• Temperature rating ranges from -40 to 175 degrees Fahrenheit

Product Highlights

The SmartValve provides reliable operation for heating systems in residential and commercial applications.

Product Information

Standard Information

• Brand: Resideo
• MPN: SV9501M8129/U

Technical Specifications

• Gas Type: Natural
• End Style: NPT
• Nominal Size: 1/2 in
• Ignition Type: Intermittent Hot Surface Pilot
• Pressure Rating: 0.5 psi
• Nominal Capacity: 0.6 to 5.7 cu-m/hr
• Coil Voltage: 24 VAC 50/60 Hz
• Dimensions: 4.1 in L x 3.2 in W x 4.9 in H
