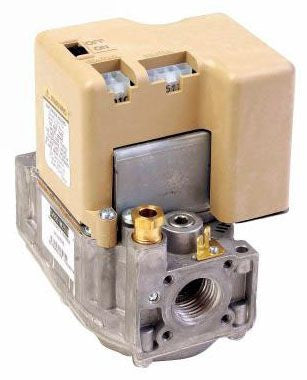

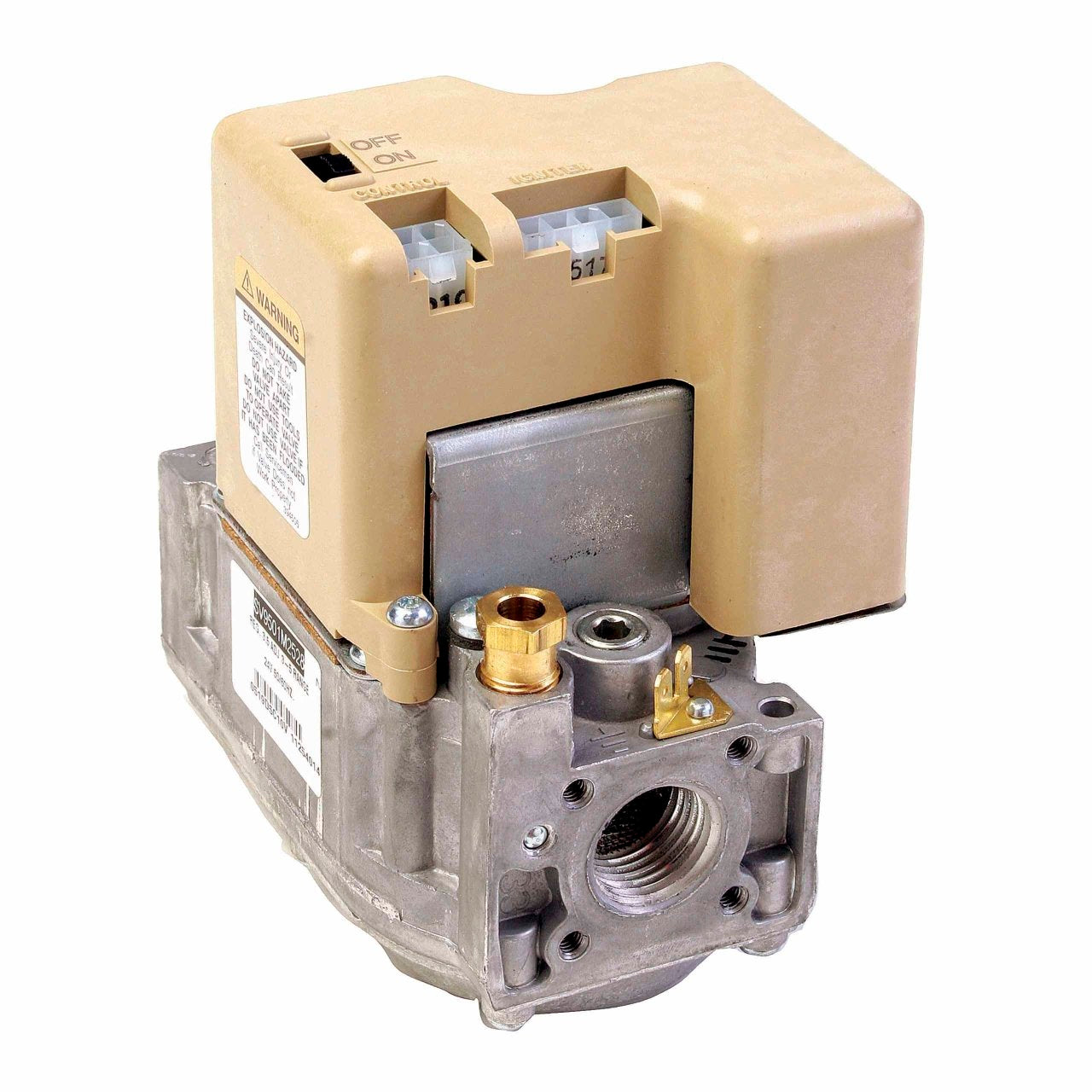

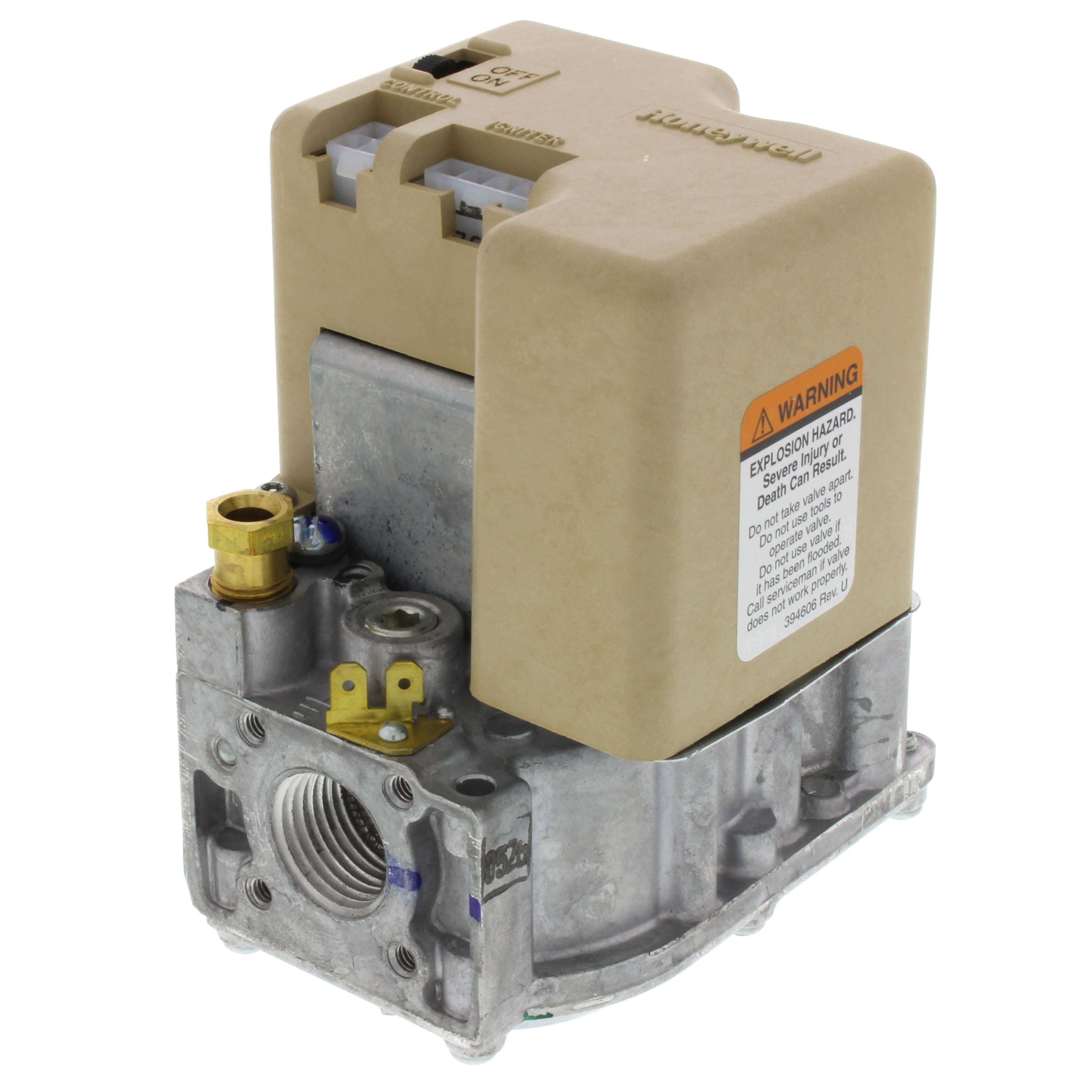

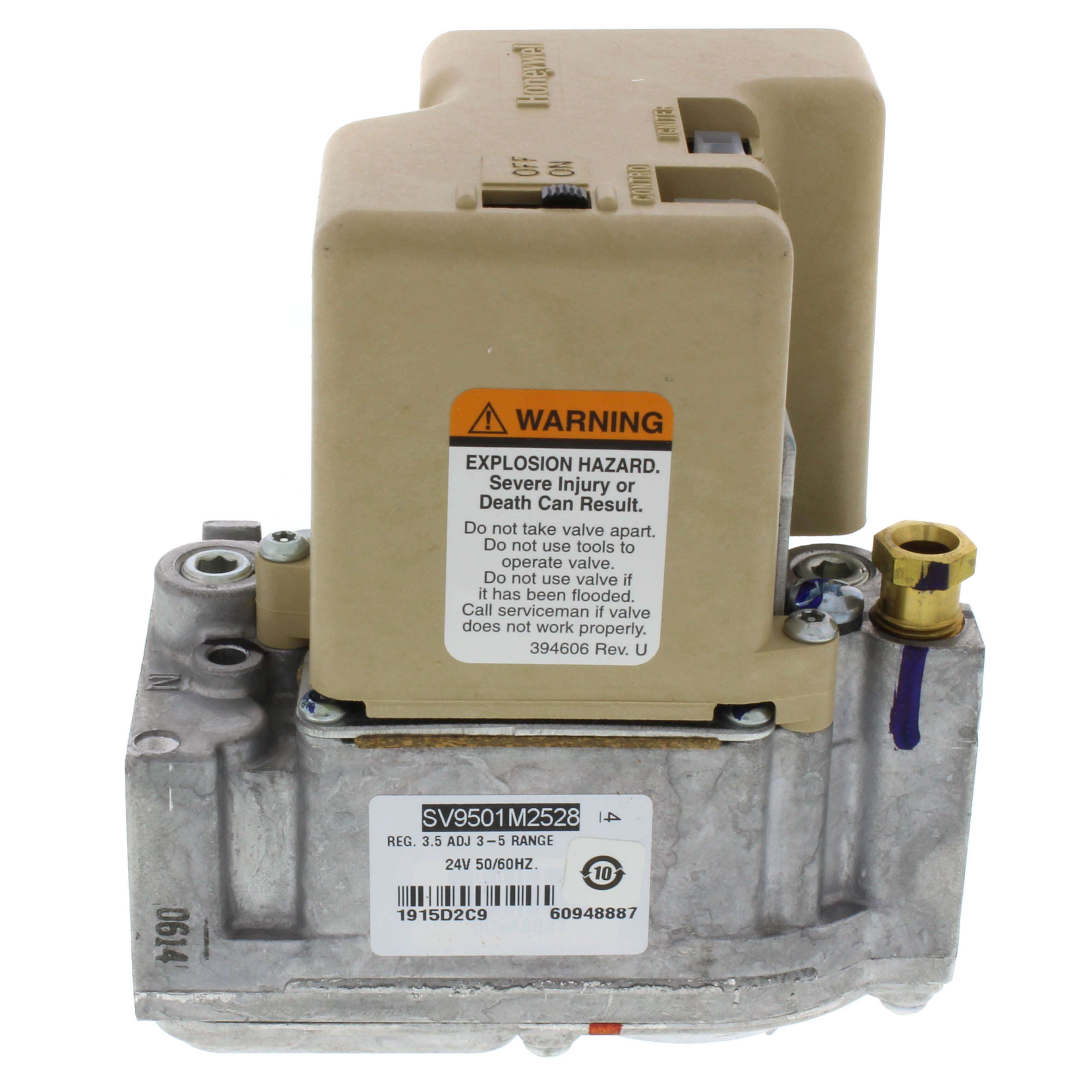

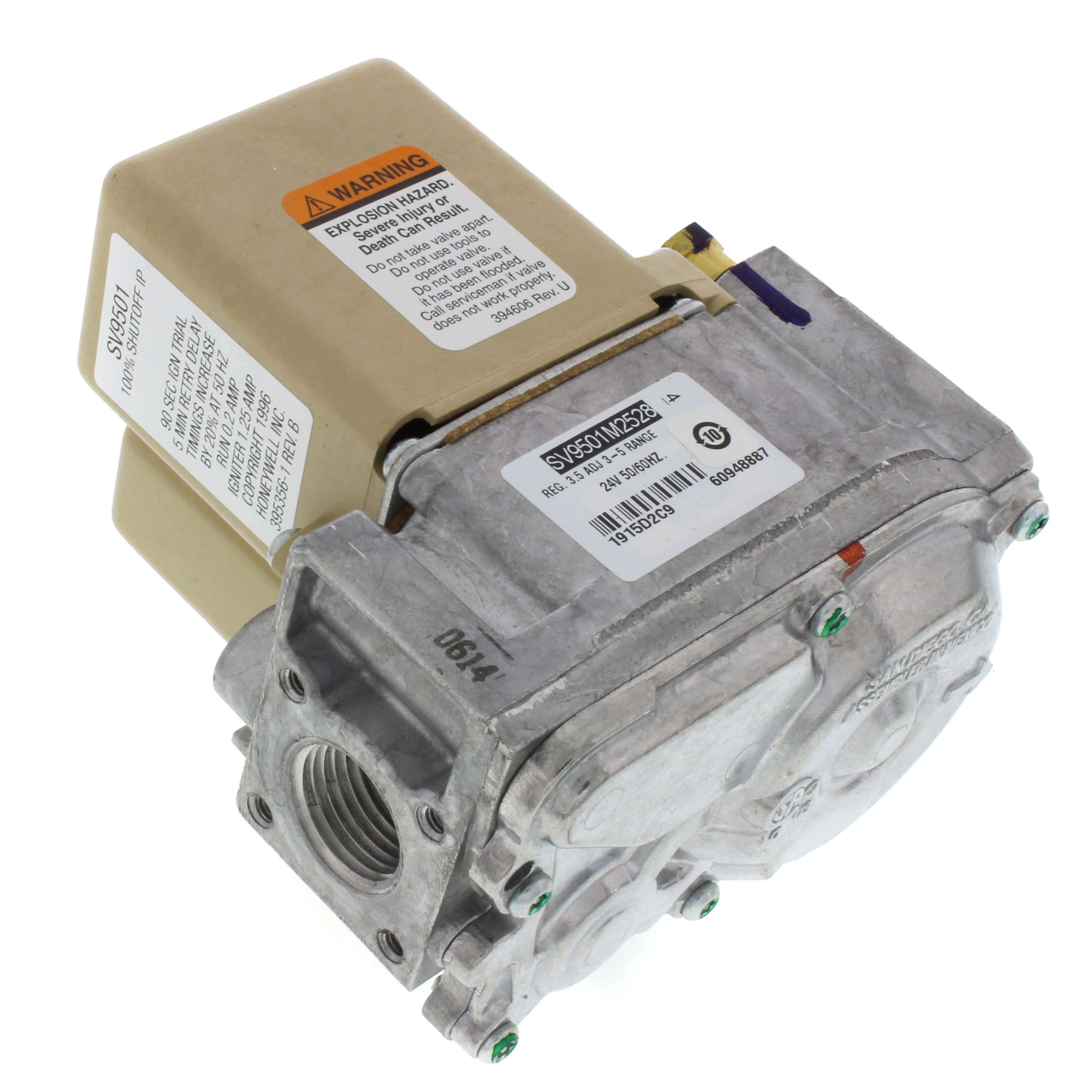

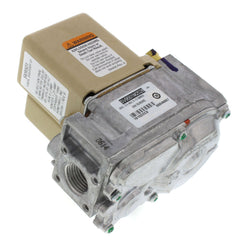

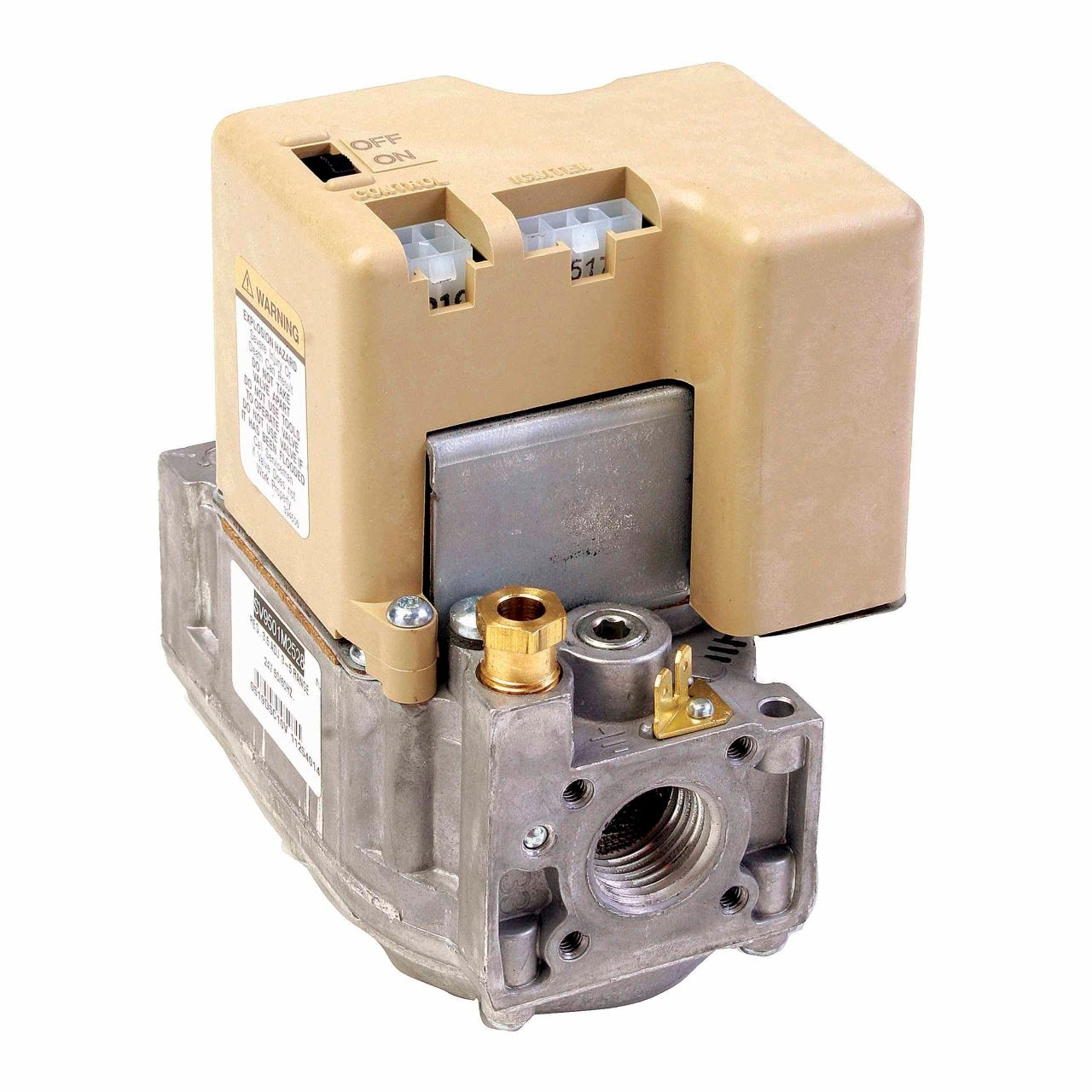

Resideo SV9501M2528 Hot Surf Pilot Ign 24V AC 1/2 inch x 1/2 inch Replaces SV9501M2049

Product Description

The RESIDEO SV9501M2528 gas control valve is a standard opening, straight-through, universal unit designed for gas-fired appliances. It operates on 24 Volt AC 50/60 Hertz and handles natural gas, with a capacity of 20,000 to 200,000 BTU/Hour. This valve features intermittent hot surface pilot ignition and includes a natural to LP conversion kit and extension harness. It is suitable for residential furnaces, boilers, and commercial cooking units, ensuring precise gas flow control and electronic intermittent pilot sequencing.

• Continuous retry trials for ignition to lockout.
• Ignition sequence includes timed trial for ignition.
• Includes Natural to LP Conversion Kit and extension harness.

Product Highlights

Combines gas flow control and electronic intermittent pilot sequencing for gas-fired appliances.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: SV9501M2528

Technical Specifications

• Applicable Standard: CSA
• Application: Gas-Fired Appliance, Residential Furnace, Roof Top Furnace, Residential Boiler, Unit/Infrared/Space Heater, Commercial Cooking Unit
• Nominal Size: 1/2 Inch x 1/2 Inch
• End Connection: Female Threaded x Female Threaded
• Input Voltage: 24 Volt AC
• Frequency: 50/60 Hertz
• Max Pressure Rating: 1/2 PSI
• Operating Temperature Range: -40 to 175 Deg F
• Valve Type: Standard Opening, Straight-Through, Universal
• Fuel Type: Natural Gas
• Ignition Type: Intermittent Hot Surface Pilot
• Flame Failure Response Time: 1.6 Second at 3 Microamp
• Ignition Trial Time: 90 Second
• BTU Capacity: 20000 to 200000 BTU/Hour
• Flame Sense: 2-Rod
• Pressure Tap Connection Size: 1/8 Inch Threaded
• Pressure Regulator Setpoint: 3.5 Inch WC
• Mounting Angle: 0 to 90 Degree in any Direction from Upright Position of Gas Control Knob
• Included Accessories: Natural to LP Conversion Kit, Extension Harness
• Series: SV9501
• Ignition Trials to Lockout: Continuous Retry
• Pre-Purge: None
• Pilot Gas Outlet: Yes
• For Use With: Q3450 and Q3480 Intermittent Pilot Burners
