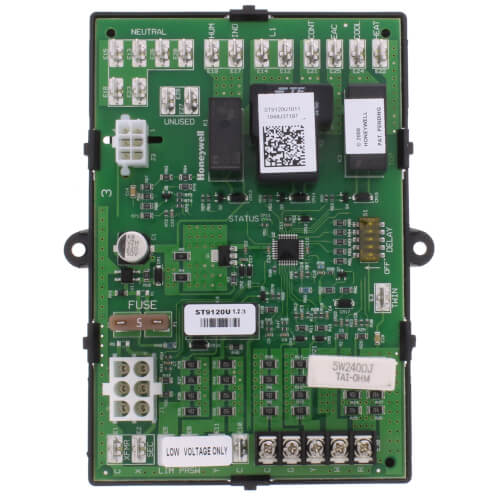

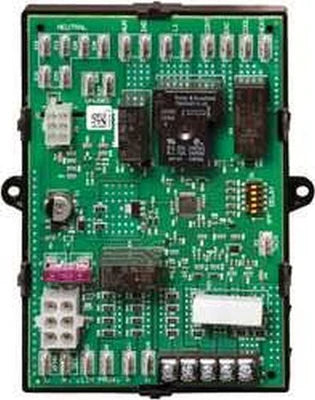

Resideo ST9120U1011 Universal Electronic Fan Timer with LED Diagnostics

Product Description

The Resideo ST9120U1011 Universal Electronic Fan Timer with LED Diagnostics provides efficient fan control for various applications. Featuring a user-friendly LED display, it simplifies troubleshooting and maintenance.

• Universal compatibility with most fan types
• LED display for clear status indication
• Built-in diagnostics for troubleshooting

Product Highlights

This universal electronic fan timer integrates control of combustion blower and circulating fan operations in gas warm air appliances. It monitors thermostat demands and runs the induced draft blower and circulating fan as needed. The compact design allows easy installation in confined spaces.

Product Information

Standard Information

• Brand: Resideo
• MPN: ST9120U1011

Technical Specifications

• Item Number: ST9120U1011
• Heat Fan On Delay: Adjustable, set at 30 seconds
• Heat Fan Off Delay: Adjustable, set at 140 seconds
• Cool Fan On Delay: Adjustable, 4-30 seconds (set at 4 seconds)
• Cool Fan Off Delay: Fixed 30 seconds
• Temperature Range, Ambient: -40 F to +175 F (-40 C to +79 C)
• Electrical Rating: 18 to 30 Vac
• Cooling: Compatible with various fan models
• Country of Origin: Mexico
