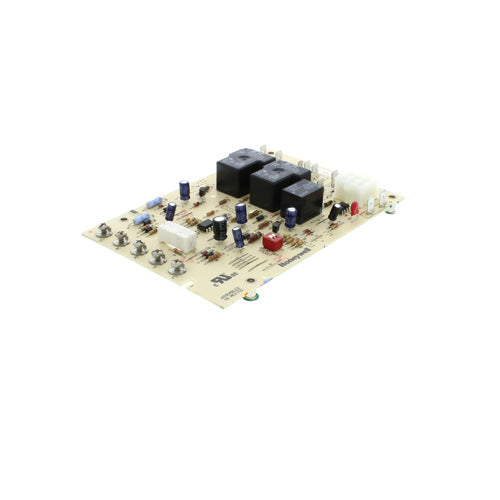

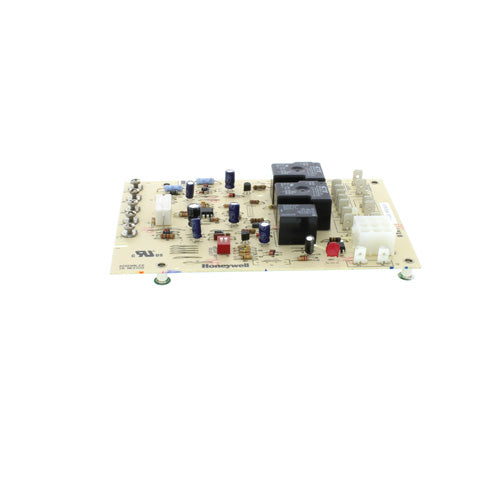

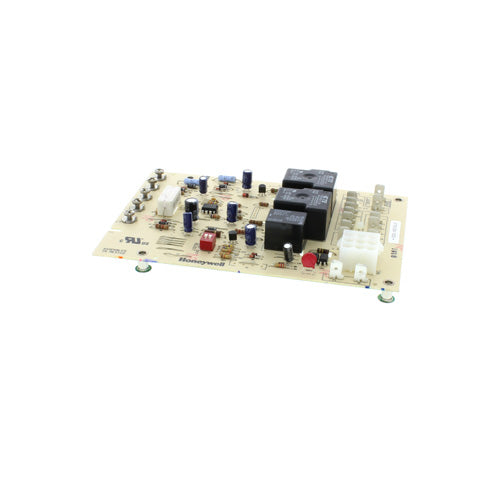

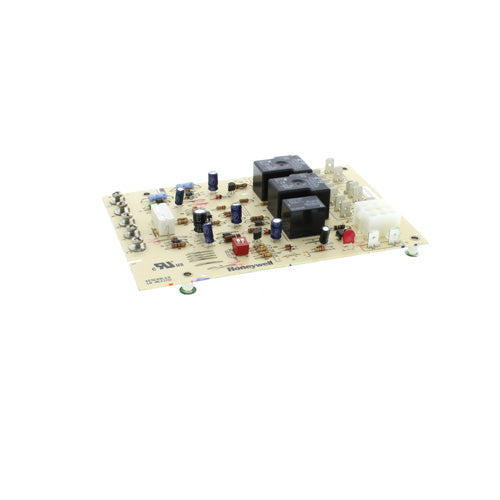

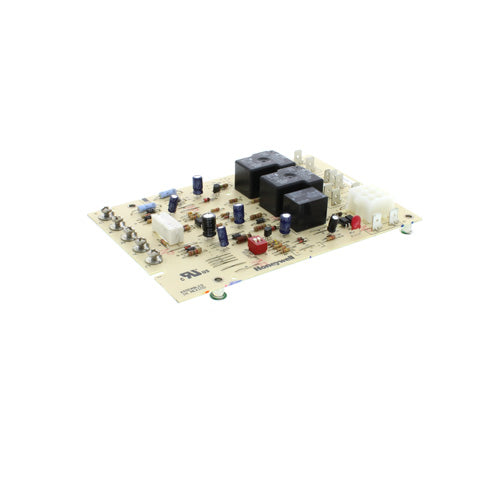

Resideo ST9103A1002 Electronic Fan Timer with Adjustable Heat

Product Description

The Resideo ST9103A1002 Electronic Fan Timer with Adjustable Heat provides essential control over your HVAC system. This electronic fan timer allows for adjustable heat fan on and off, and it includes a fixed 0-second cool fan on and off function. This product is suitable for various applications, including combustion air blower control, two-speed circulating air blower control, oil primary control, and more.

• Adjustable heat fan on and off.
• Fixed 0-second cool fan on and off.
• Suitable for HVAC systems.

Product Highlights

Central appliance wiring point simplifies appliance assembly and service. Features include a fixed or field-adjustable heat fan on delay, and a field-adjustable heat fan off delay.

Product Information

Standard Information

• Weight: 0.62 pounds
• Dimensions: 6 inches length x 7.9 inches width x 2.7 inches height

Technical Specifications

• Delay On: 30 seconds, fixed
• Delay Off: 60, 90, 120, 150 seconds, field-adjustable
• Timing Tolerance: larger of ±20% or 5 seconds
• Temperature Range, Ambient: -40 F to 150 F
• Electrical Rating: 18 to 30 Vac
• Frequency: 50 Hz, 60 Hz
• Heat Blower ON Delay: 30 seconds
• Heat Blower OFF Delay: 60, 90, 120, 150 seconds
