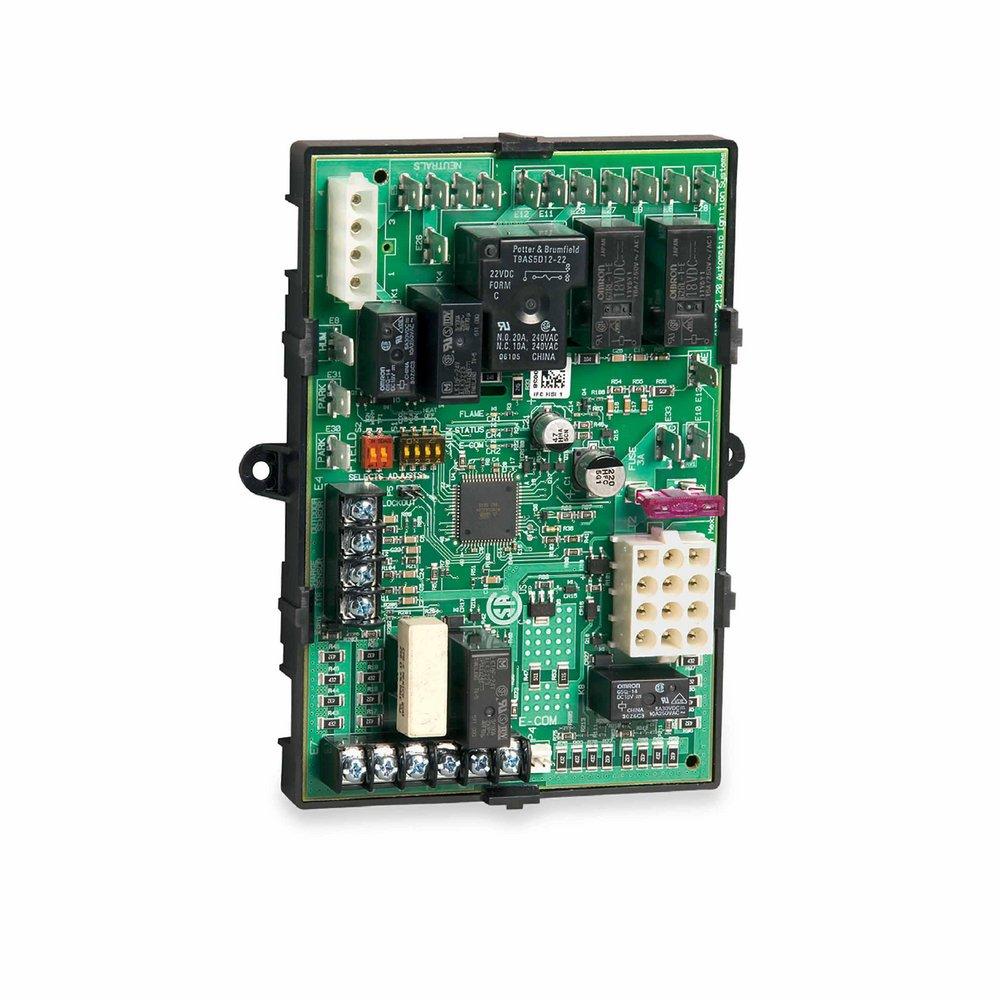

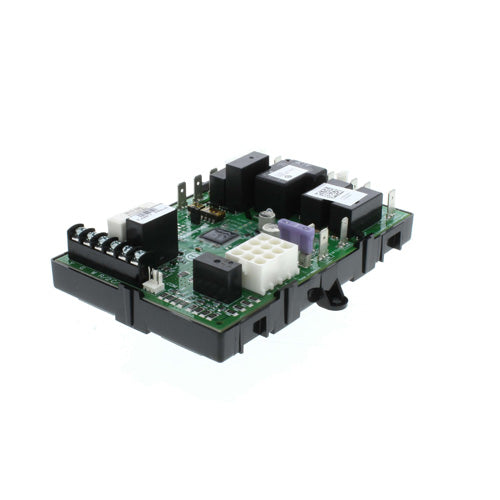

Resideo S9200U1000 Multi-System HSI Integrated Furnace Control Board

Product Description

The Resideo S9200U1000 Multi-System HSI Integrated Furnace Control Board is a versatile control board compatible with various HVAC systems. It replaces over 195 existing furnace controls, thus eliminating the need for multiple models. Suitable for natural or liquid propane fueled furnaces, it can be used with conventional low voltage thermostats as well as EnviraCOM enabled devices.

• Controls a standard induction-type circulating fan motor.
• Includes wire harnesses for easy replacement.
• Provides LED system status, performance, and diagnostic indications.

Product Highlights

This control board manages the circulating fan motor based on appliance requirements, integrates HVAC system control and diagnostics, and ensures appliance safety via a microprocessor.

Product Information

Standard Information

• Brand: Resideo
• MPN: S9200U1000
• Category: HVAC Controls
• Application: Residential natural or liquid propane fueled furnaces

Technical Specifications

• Line Voltage: 120Vac (97-132 Vac)
• Low Voltage: 24V (18-30Vac)
• Frequency: 60 Hz
• Operating Temperature (F): -40 F to +175 F
• Operating Temperature (C): -40 C to +79 C
• Operating Humidity Range (% RH): 0% to 95% non-condensing
• Igniter Current: 1.0A resistive @ 95Vac output
• Thermostat Anticipator Setting: (Stage 1 only) 100mA
• PrePurge: 30 seconds
• HSI Warmup Time: 17/27 or 30/30 seconds
• Trial For Ignition: 4, 6, or 8 seconds
• PostPurge: 15 seconds
• Interpurge: 60 seconds
• Ignition Trials: Three, two tries if flame is not sensed
• Flame Failure Response Time: 2 Seconds max @ 1µA
• Number of LEDs: 3
• Heat On Fan Delay: 30 or 60 seconds
• Heat Off Fan Delay: 60, 90, 120, or 180 Seconds
• Cool Fan On Delay: 5 seconds
• Cool Fan Off Delay: 0 or 60 seconds
• Gas Control Used With: Any 24Vac redundant, direct ignition gas control rated at 1.5A or less; Honeywell VR8205 recommended
• Cooling Contactor Used With: Any 24Vac contactor rated at 1.0A or less
• Induced Draft Blower Load: 2.2FLA / 25LRA max @120Vac
• Circulator Load: 14.5FLA / 25LRA max @120Vac
• Type of Fan Used With: Standard Induction-Type Circulating Fan
