Resideo S8910U3000 universal hot surface ignition control 24 Vac replacement S8910U1000

Product Description

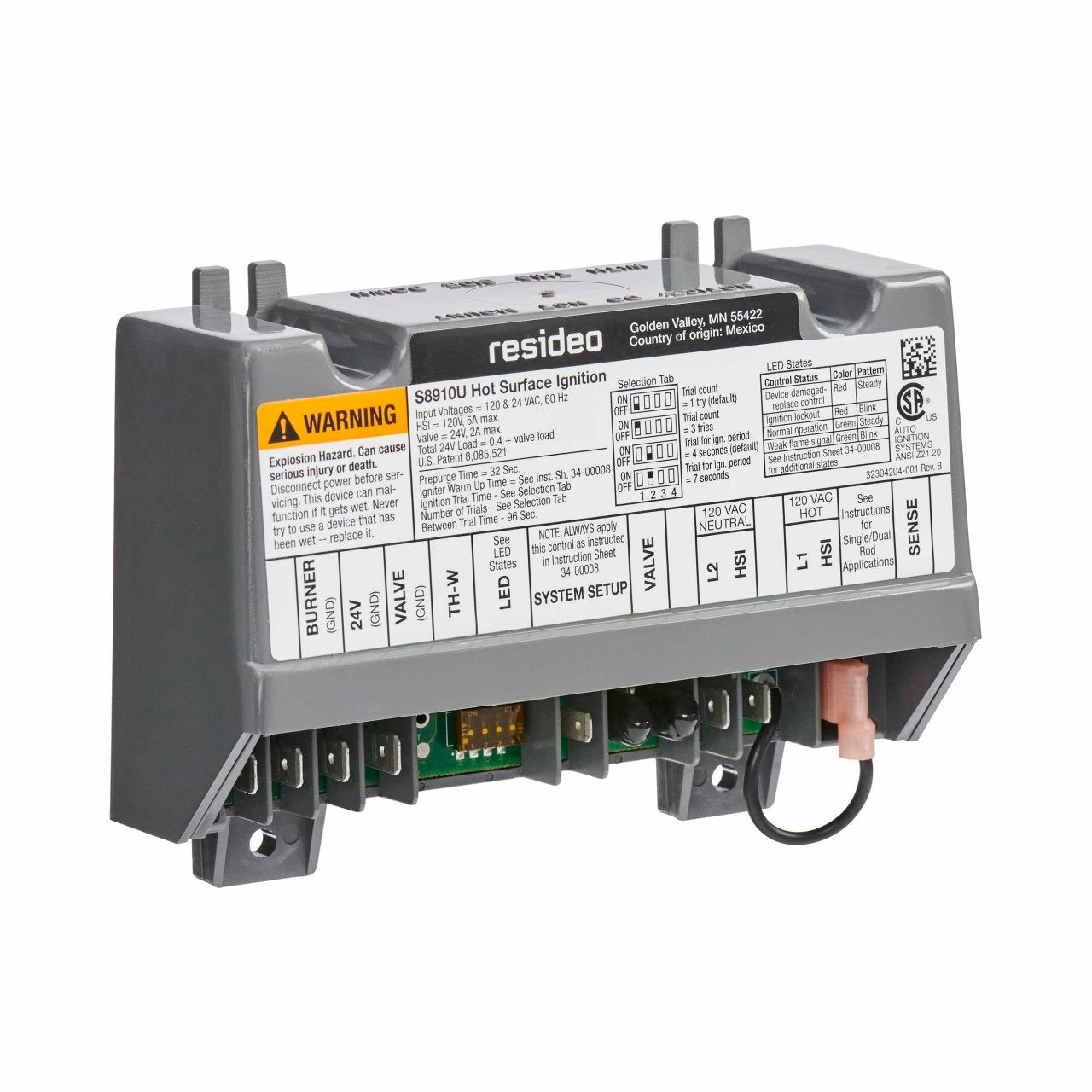

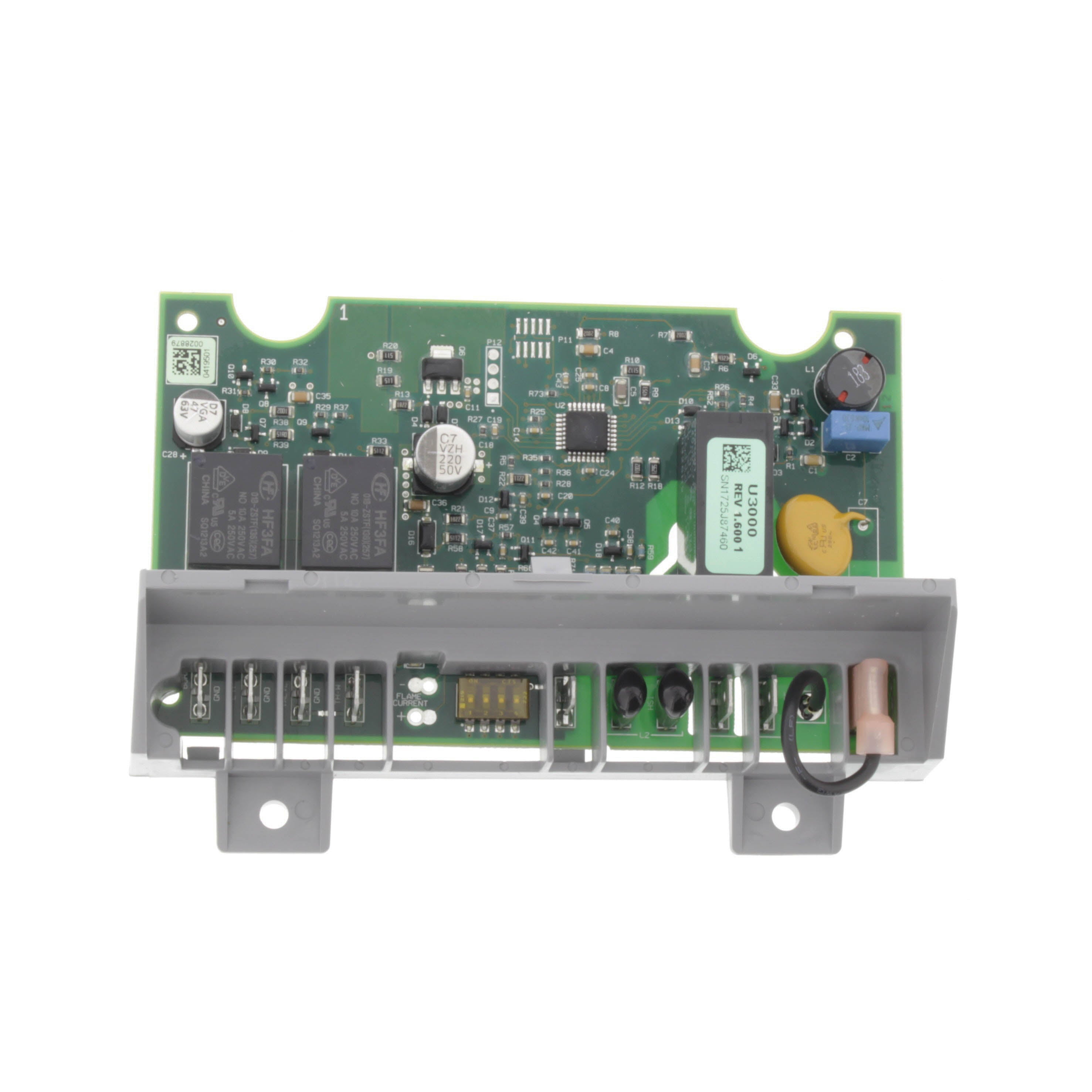

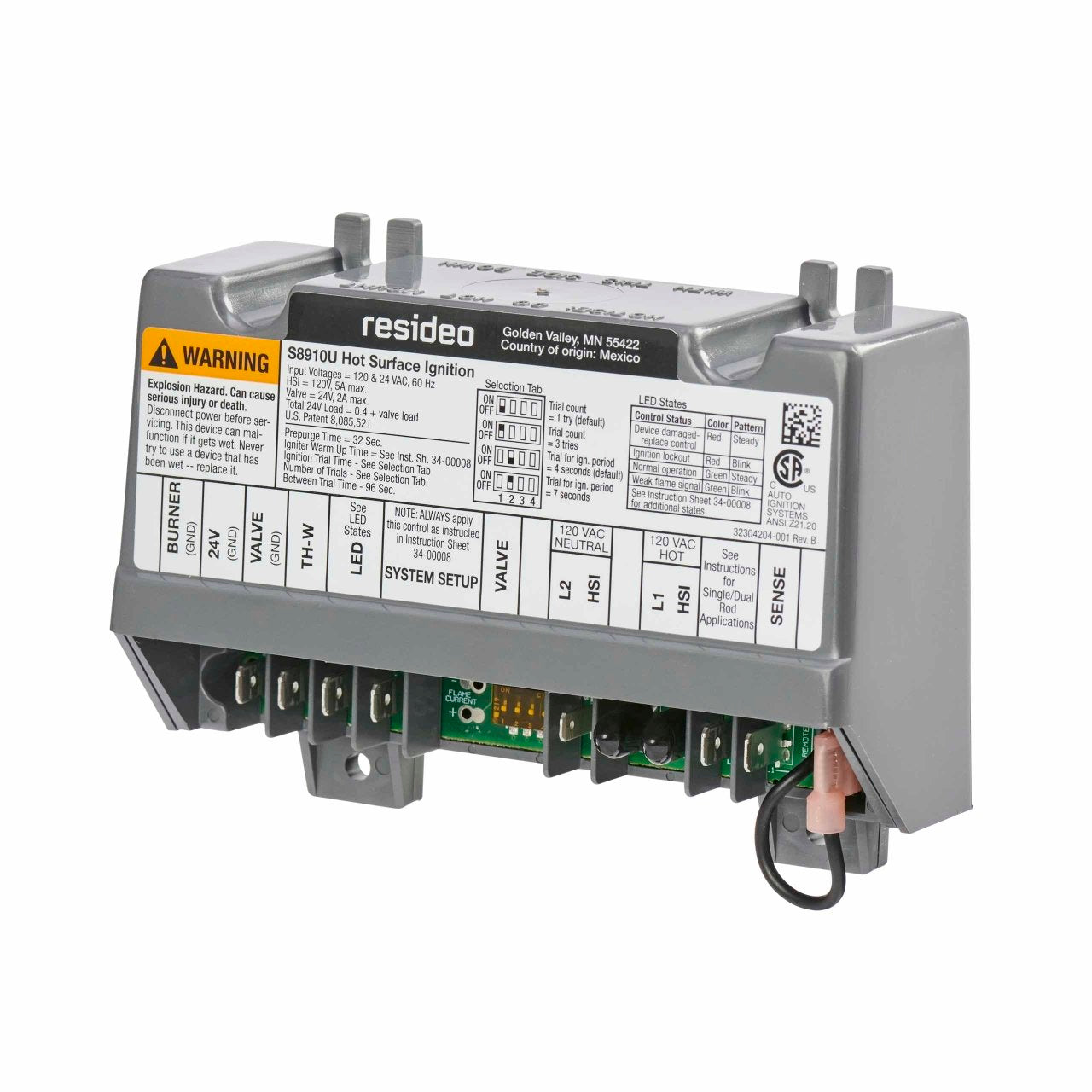

The RESIDEO S8910U3000 Universal Hot Surface Ignition Control is designed for reliable operation in HVAC systems. This module features field-selectable DIP switches to configure trial count, trial for ignition, and igniter warm-up time. It includes an LED status indicator and microammeter ports for efficient troubleshooting. This control module offers easy field replacement for a wide range of hot surface ignition modules, including over 800 models from various manufacturers, operating at 24 Vac.

• Field-selectable DIP switches set trial count, trial for ignition, and igniter warm up time.
• LED status indicator and microammeter ports for easy trouble shooting.
• Easy field replacement for more than 800 hot surface ignition modules.

Product Highlights

Universal hot surface ignition control with field-selectable settings and diagnostic indicators for broad compatibility and easy maintenance.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: S8910U3000
• Country of Origin: United States

Technical Specifications

• Manufacturer: Resideo
• Accessories: S8610U3009, VR8345M4302, Q340A1074, Q3200U1004, Q340A1090, 12100, Q345U1005, LH33ZS004
• Input Voltage: 24 Vac
• Frequency: 50-60 Hz
• Fuel Type: Natural Gas, Propane
• Compatible Gas Control: VR8205, VR8305
• Flame Sense: Single rod or dual rod
• Ignition Type: Direct Hot Surface Pilot
• Pre-Purge Time: 32 Seconds
• Operating Temperature: -40°F to 175°F
• Ignition Trials to Lockout: 1 or 3 (switch selectable)
• Application: Hot Surface Pilot Ignition
• Certifications: CSA Design Certified
• Ignition Source: Line Voltage (120 VAC) Hot Surface Element (Norton Model 201 or 270)
• Ignition Between Trial Time: (2) 96 sec- 3 trial mode only
• Ignition Trial Time: 4 sec, 7 sec
• Ignition Warm-Up Time: 34 sec
• Interpurge Time: 64 seconds
• Lockout Timing: 4 sec, 7 sec
• Flame Failure Response Time: 1.5 sec
• Typical Ignition Hardware: Norton 201, Norton 271, Q354
• Igniter-Sensor Rod: Dual, Single
• Maximum Valve Load: 2A

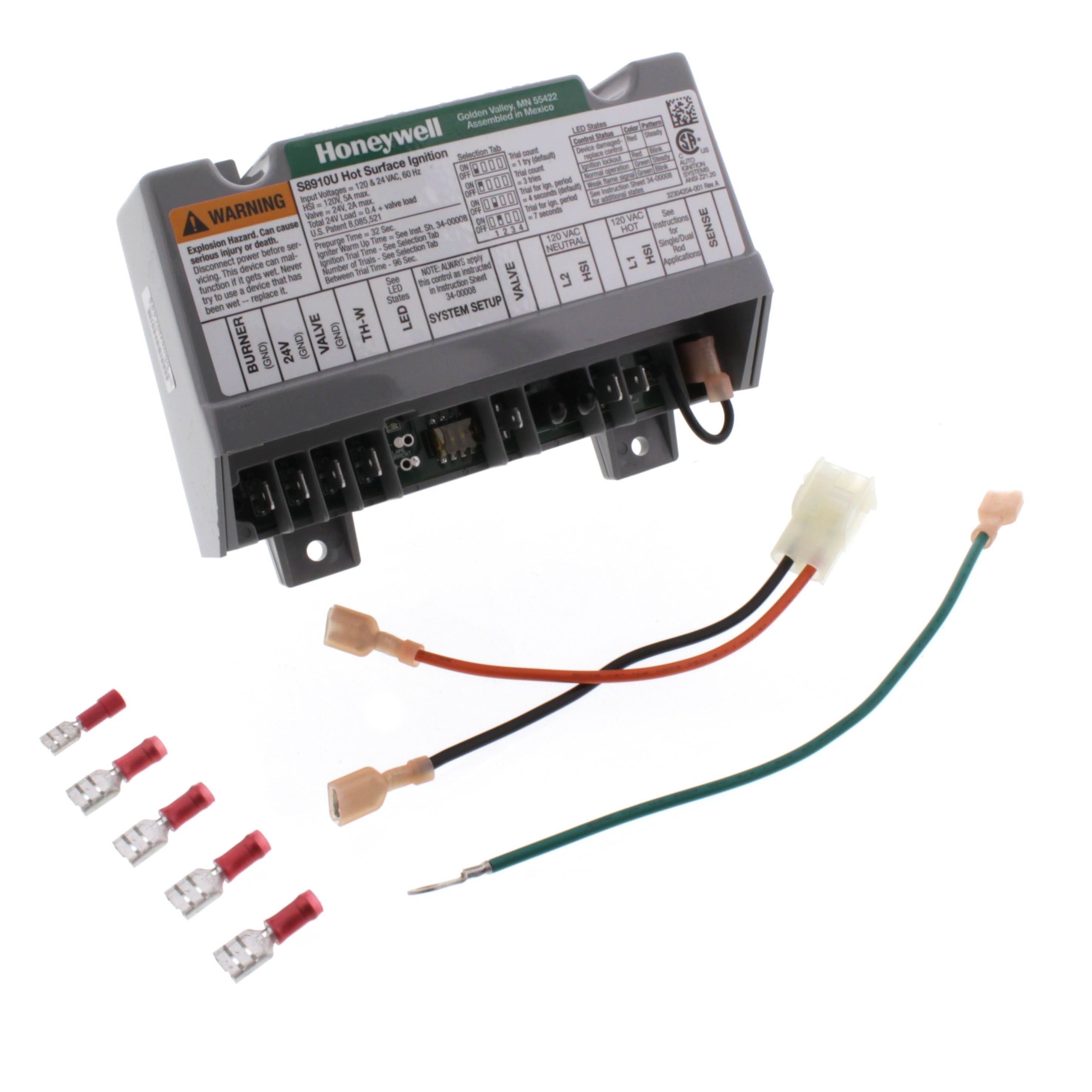

• Included Components: White Rodgers adapter, Robertshaw ground lead, Four 1/4 in. female .032 quick connects, One 3/16 in. female .032 quick connect, Nine wire labels
• Mounting Type: Mounts in any position except with terminals up, Recommended mounting position is with terminals down to provide maximum protection from dripping water or dust accumulation
• Display Type: LED
• Country of Origin: United States
• Compatible Brand: For Honeywell
• Power Source: Corded Electric
• Material: Plastic
• Compatible Product: Central Furnace
• Type: Hot Surface Ignition
