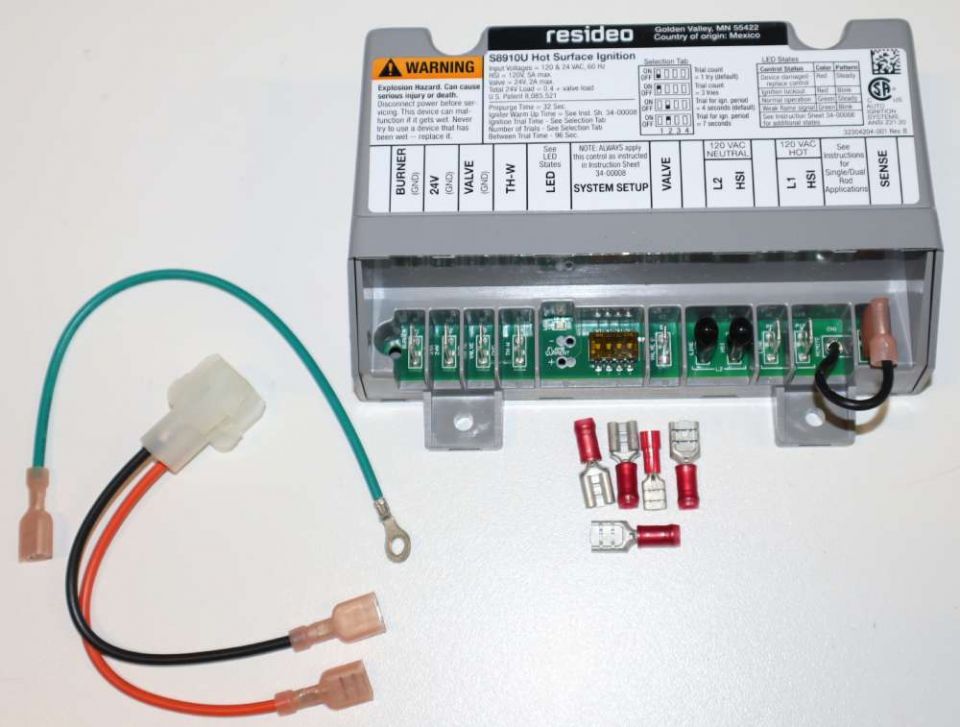

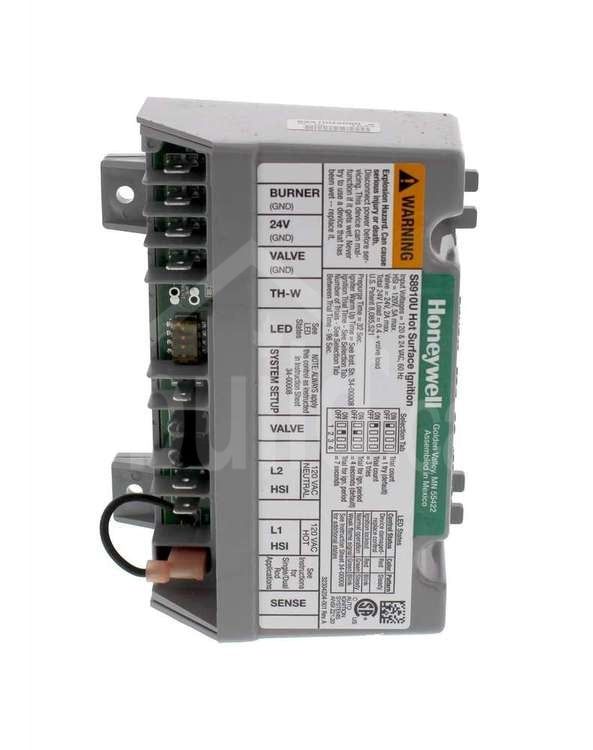

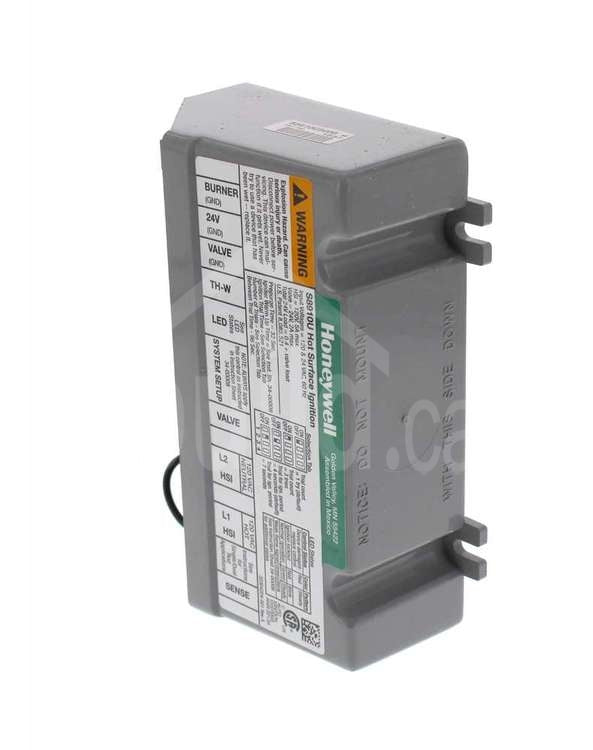

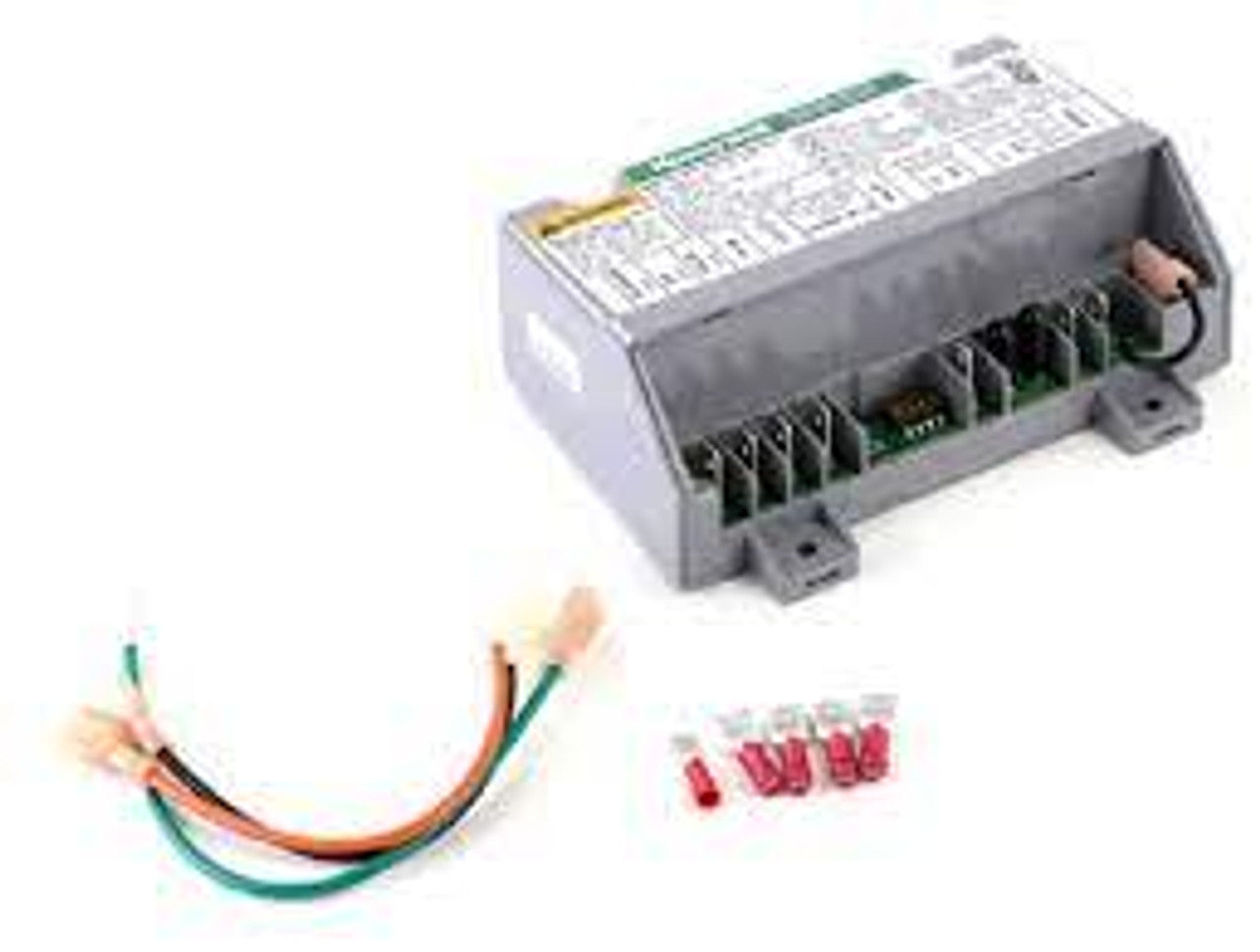

Resideo S8910U1000 Ignition Control Direct Hot Surface

Product Description

The Resideo Braukmann S8910U1000 Ignition Control is designed for use in natural gas and propane systems. This module ensures a reliable start during the ignition process in heating applications. It utilizes a direct hot surface ignition system which aids in quicker heating along with enhanced safety features.

• Compatible with natural gas and propane.
• Utilizes direct hot surface ignition technology.
• Designed to replace various field-installed ignition modules.

Product Highlights

This ignition control module is suitable for various gas appliances and is engineered for efficiency and safety.

Product Information

Standard Information

• Brand: Resideo Braukmann
• MPN: S8910U1000

Technical Specifications

• Ignition Type: Direct Hot Surface
• Gas Type: Natural Gas / Propane
• Control Voltage: 24V, 60 Hz
• Maximum Valve Contact Rating: 2A
• Current Draw: .4A plus valve load
• Hot Surface Igniter Voltage: 120 Vac, 60 Hz
• Contact Rating at 120 Vac: 5A
• Prepurge: 32 seconds
• Flame Failure Response Time: 1.5 seconds maximum
• Ambient Operating Temperature: -40°F to +175°F (-40°C to +79°C)
• Voltage Rating: 24 VAC
• Amperage Rating: 2 A
• Temperature Rating: -40°F to 175°F
