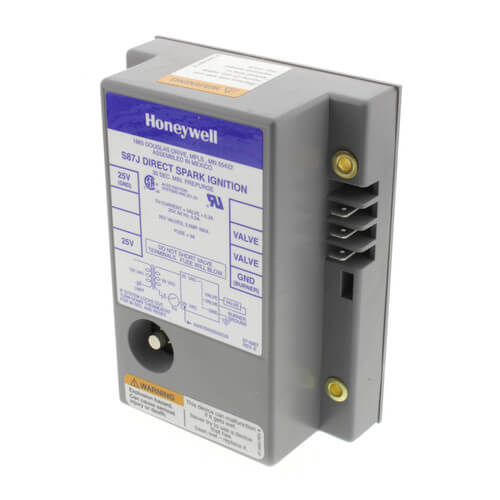

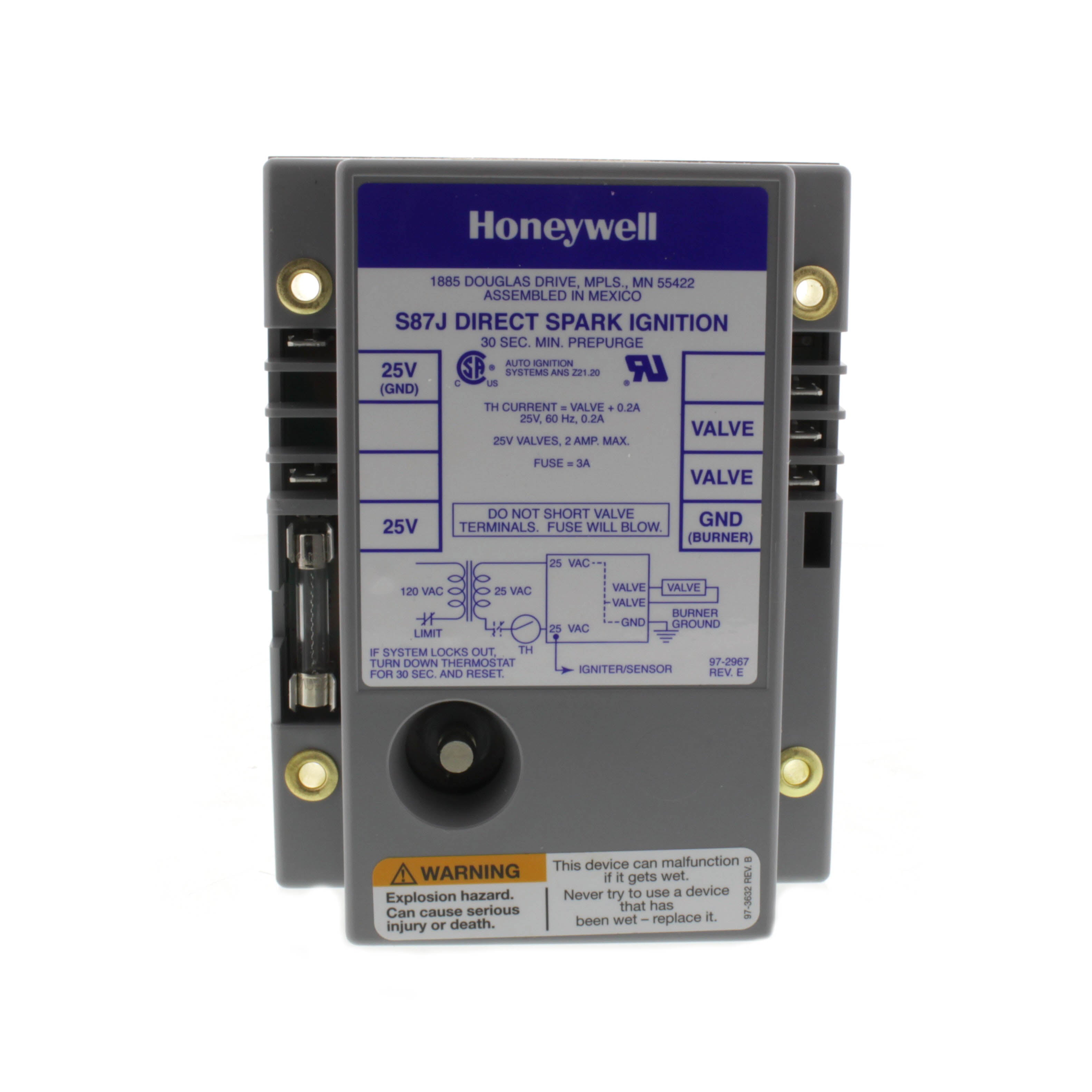

Resideo S87J1034 Single Rod Direct Spark Ignition Control 21 Second Trial and Lockout

Product Description

The Resideo S87J1034 is designed for electronic control of direct spark ignition systems in gas-fired appliances such as furnaces and boilers, offering reliable performance and safety.

• Electronic control for direct spark ignition
• High voltage spark generation for main burner ignition
• Lockout feature activates after one failed ignition trial

Product Highlights

This ignition control is essential for heating professionals looking for efficient and safe operation in heating systems.

Product Information

Standard Information

• Type of Gas: Natural or LP
• Ignition System Type: Direct Spark Ignition
• Ignition Trials To Lockout: 1
• Maximum Valve Load: 2A at 24 Vac
• Dimensions: 5.25 inches high x 4.0625 inches wide x 1.9375 inches long

Technical Specifications

• Electrical Ratings: 24 Vac, 60 Hz
• Max Ambient Temperature: -40 F to +175 F
• Flame Failure Response Time: 0.8 seconds at 5.0 microamps
• Includes: Alarm terminal
