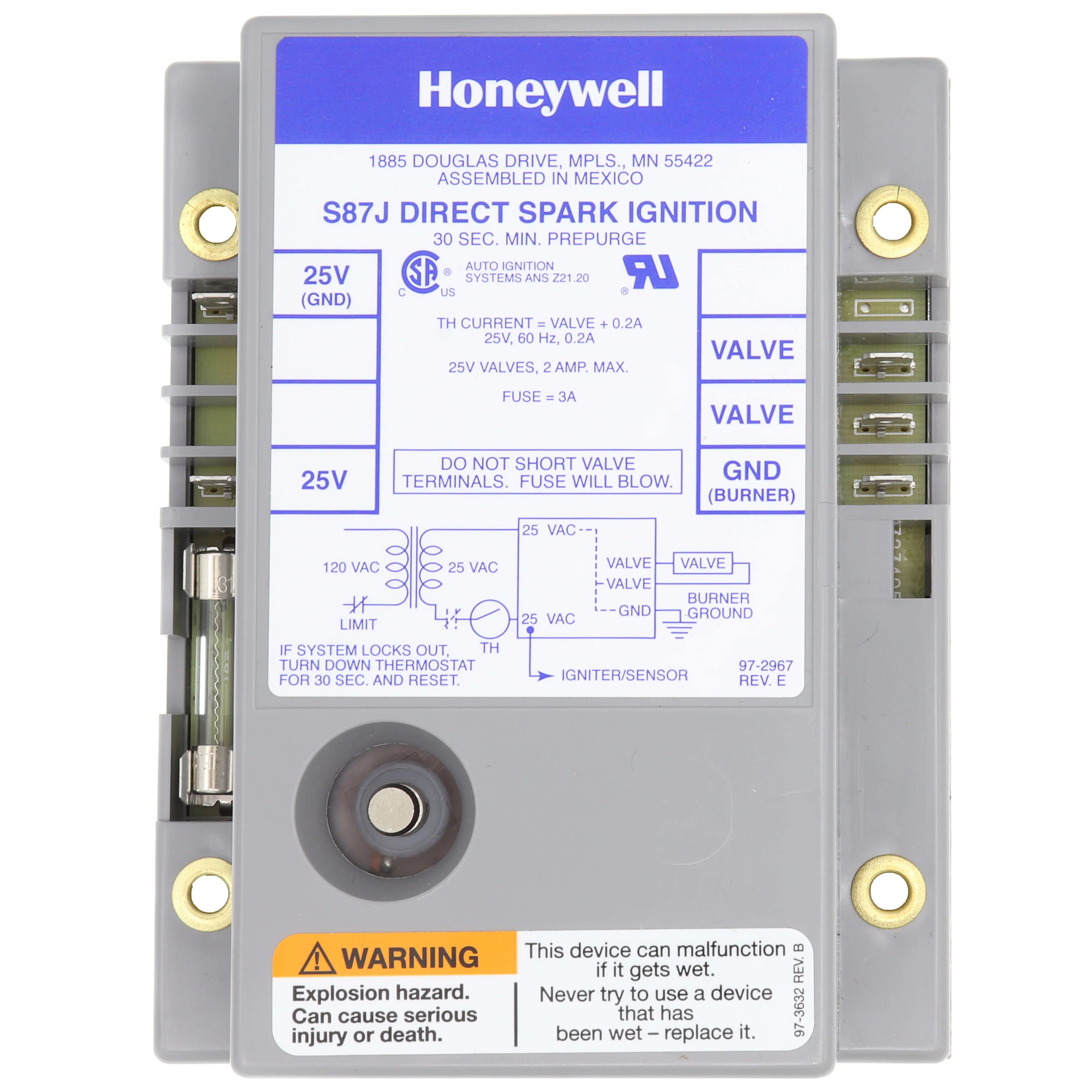

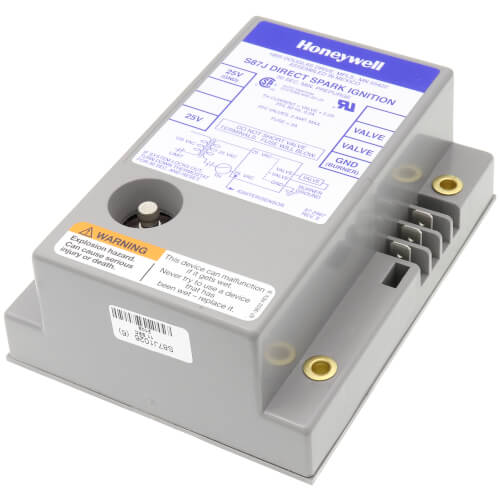

Resideo S87J1026 Single Rod Direct Spark Ignition Control 11 Second Trial Lockout

Product Description

The Resideo S87J1026 Single Rod Direct Spark Ignition Control is engineered for reliable management and monitoring of direct spark ignition systems in gas-fired heating appliances such as furnaces and boilers. This unit facilitates secure ignition sequence and gas control operation, making it an integral component for heating systems.

• Supports single trial ignition with automatic lockout to ensure safety.
• Capable of interfacing with VR8205 and VR8305 gas controls.
• Designed for both natural gas and LP applications.

Product Highlights

The unit includes a high voltage spark generator for main burner ignition and offers a reset feature from thermostat post-lockout. Its robust design handles harsh environments from -40 F to +175 F, making it suitable for a wide range of indoor and outdoor applications.

Product Information

Standard Information

• Ignition System Type: Direct Spark Ignition
• Ignition Trials To Lockout: 1

Technical Specifications

• Electrical Ratings: 24 Vac
• Frequency: 60 Hz
• Dimensions: 5.25 inches high x 4.0625 inches wide x 1.9375 inches long
• Maximum Valve Load: 2A at 24 Vac
• Flame Failure Response Time: 0.8 sec at 5.0 microamp
