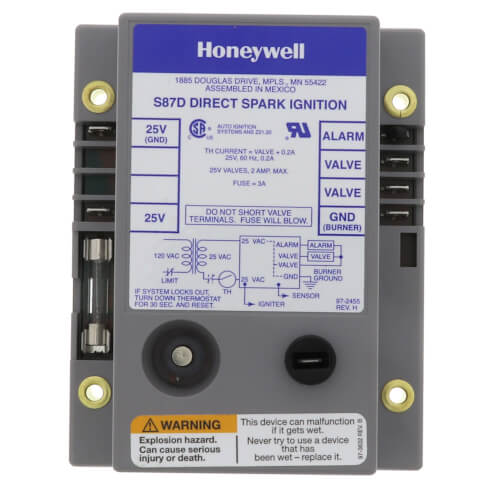

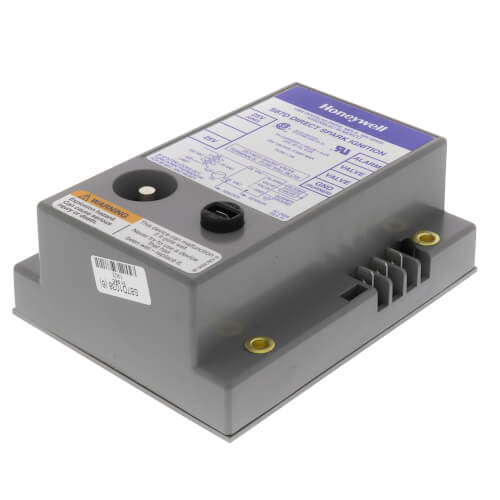

Resideo S87D1038 Two Rod Direct Spark Ignition Control w/ 21 Second Trial and Lockout Timing

Product Description

The Resideo S87D1038 Two Rod Direct Spark Ignition Control offers reliable electronic control for direct spark ignition systems. Suitable for gas-fired furnaces, boilers, and other heating appliances.

• Control ignition and gas control operations
• 21-second lockout timing
• Reset option from thermostat after lockout

Product Highlights

This control module generates a high voltage potential for main burner ignition and locks out after one trial if the burner fails. It can be reset automatically from the thermostat and works with various gas controls.

Product Information

Standard Information

• Brand: Resideo
• MPN: S87D1038

Technical Specifications

• Ignition System Type: Direct Spark Ignition
• Ignition Sequence: Single trial for main burner ignition
• Type of Gas: Natural or LP
• Ignition Source: Internal high voltage spark generator
• Ignition Trials to Lockout: 1
• Maximum Valve Load @ 24 Vac: 2A
• Typical Ignition Hardware: Q347A
• Dimensions: 5 1/4 inches high x 4 1/16 inches wide x 1 15/16 inches long
• Electrical Ratings: 24 Vac
• Frequency: 60 Hz
• Max Ambient Temperature: -40 F to +175 F
• Includes: Alarm terminal
• Flame Failure Response Time: 0.8 sec @ 5.0 microamp
