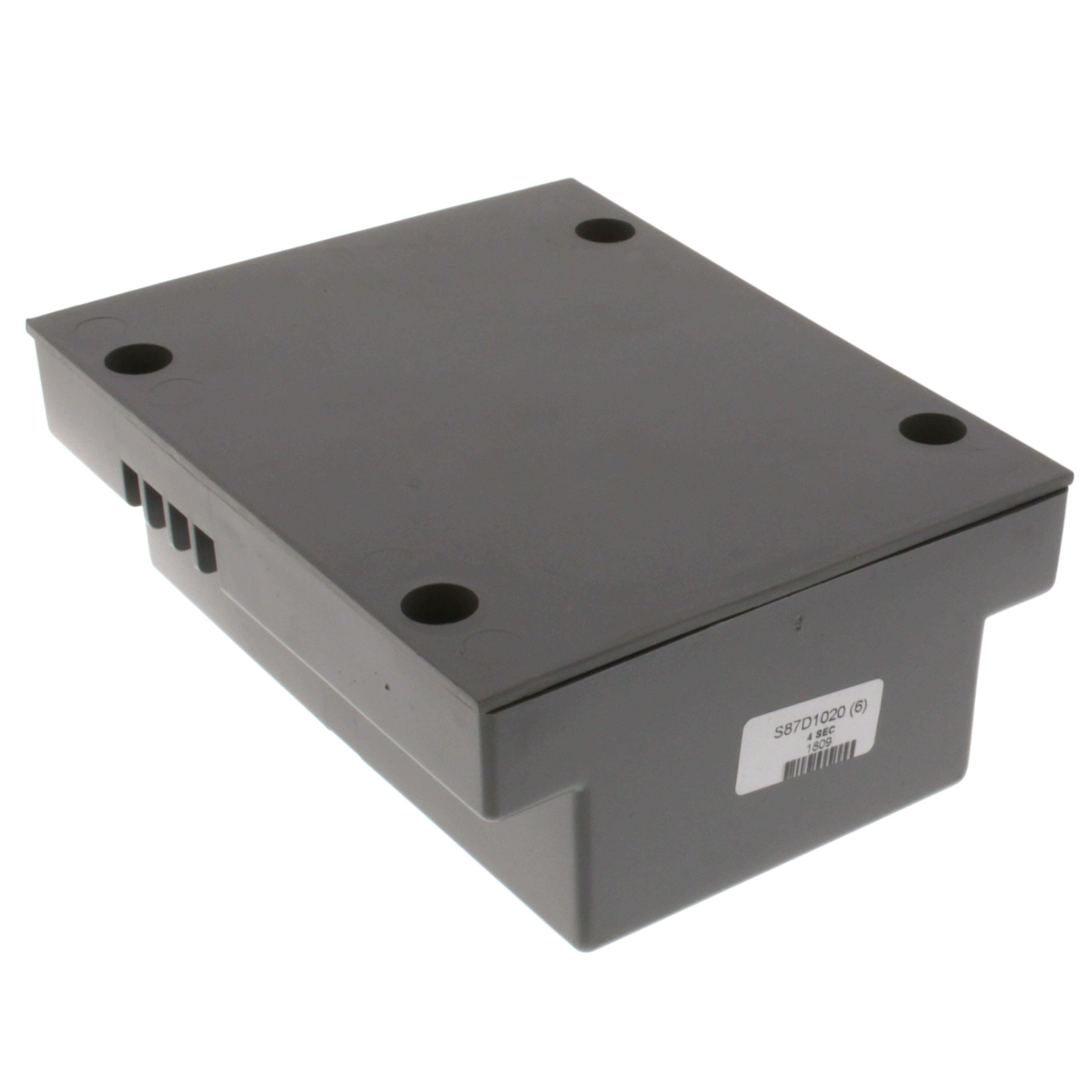

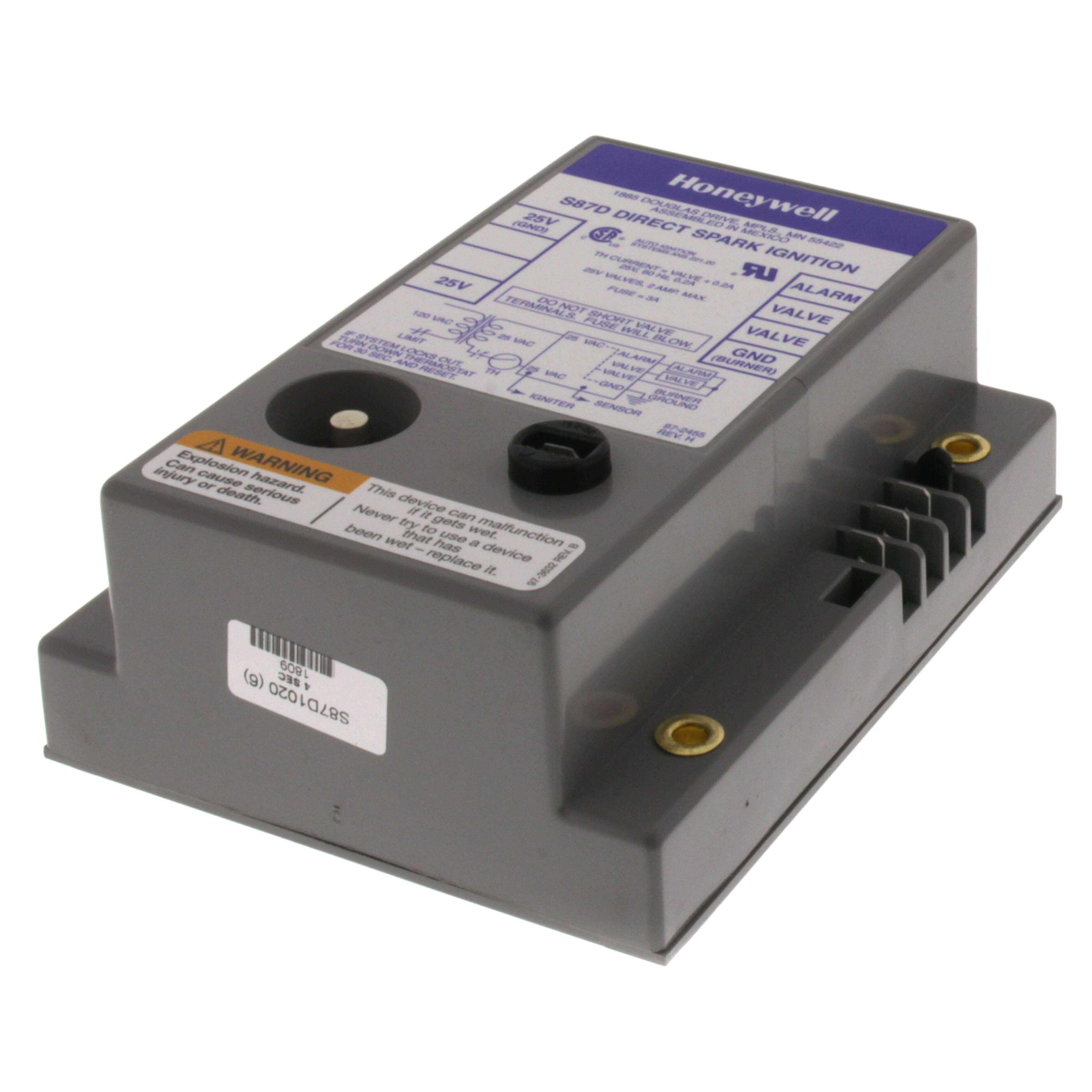

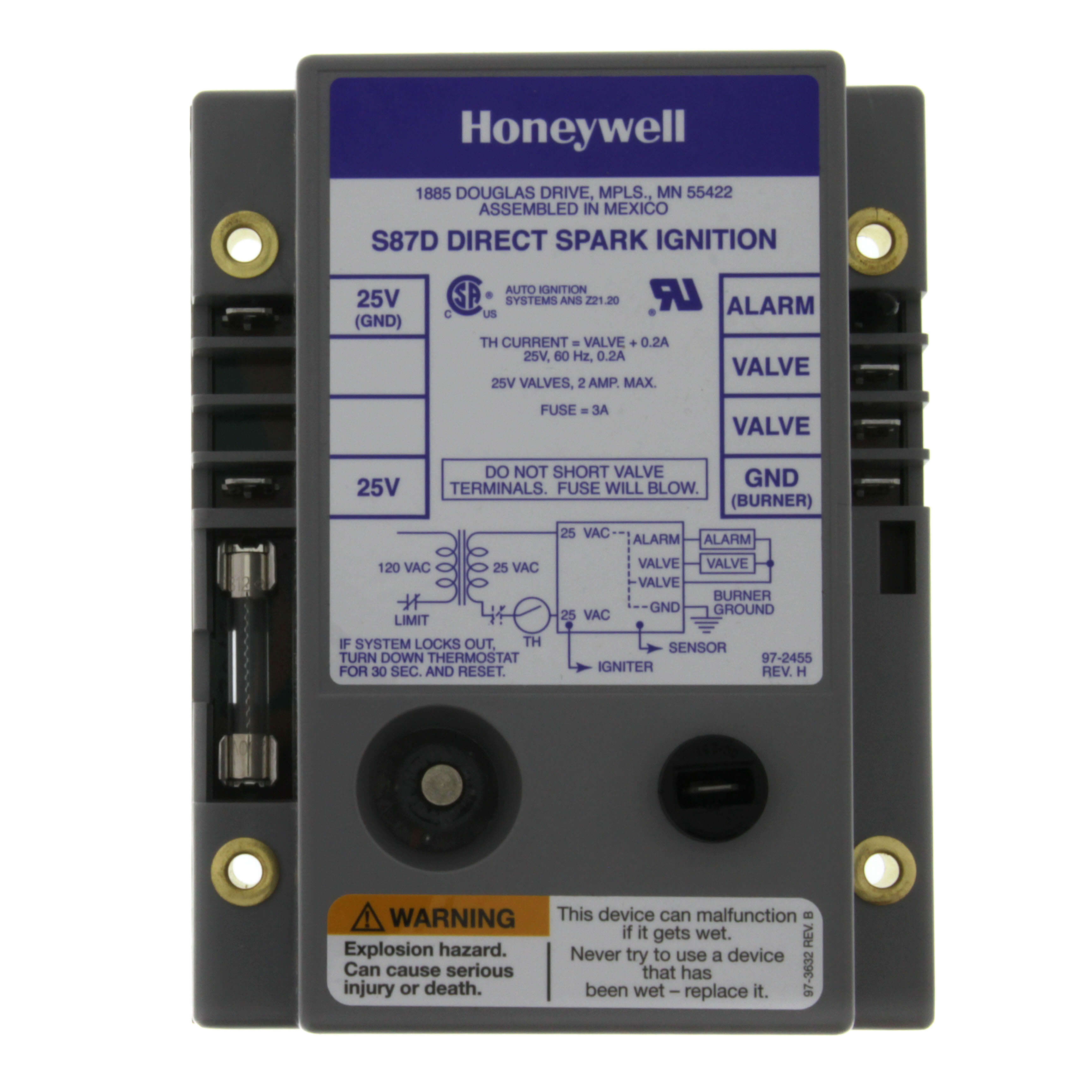

Resideo S87D1020 Two Rod Direct Spark Ignition Control w/ 4 Second Trial and Lockout Timing

Product Description

The Resideo S87D1020 is a two rod direct spark ignition control. This product provides electronic control for direct spark ignition systems used in gas-fired furnaces, boilers, and other heating units.

• Controls ignition sequence and gas operation
• Generates high voltage for ignition
• Locks out after one failed ignition trial

Product Highlights

This ignition control ensures safe and efficient operation of heating appliances, featuring an internal spark generator, reliable lockout timing, and compatibility with various gas controls.

Product Information

Standard Information

• Brand: Resideo
• MPN: S87D1020

Technical Specifications

• Ignition System Type: Direct Spark Ignition
• Ignition Sequence: Single trial with lockout
• Typical Gas Control: VR8205, VR8305
• Type of Gas: Natural or LP
• Ignition Source: Internal spark generator
• Dimensions: 5.25 inches high x 4.06 inches wide x 1.94 inches long
• Electrical Ratings: 24 Vac
• Max Ambient Temperature: -40 F to +175 F
