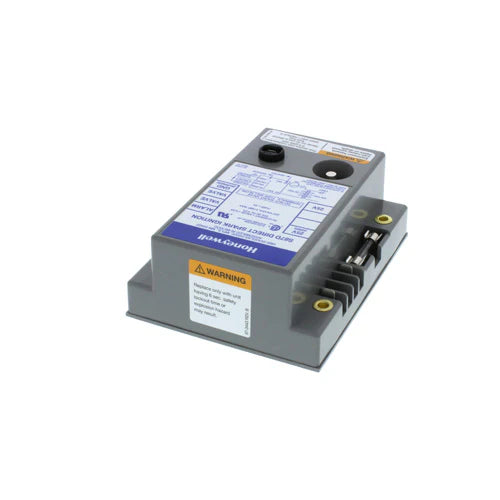

Resideo S87D1004 Two Rod Direct Spark Ignition Control 6 Second Trial Lockout

Product Description

The Resideo S87D1004 Two Rod Direct Spark Ignition Control is engineered to deliver reliable electronic control of gas fire furnaces, boilers, and other heating appliances. It ensures efficiency by automating the ignition sequence and gas control operation, suitable for professional HVAC and plumbing applications.

• Includes a high voltage spark generator for main burner ignition
• Features a lockout mechanism after a single ignition trial if the burner fails to ignite
• Easy reset via thermostat post-lockout with no prepurge required

Product Highlights

This ignition control module is particularly adept for setups requiring a robust response to flame failures, responding in just 0.8 seconds at 5.0 microamps. It operates well with VR8205 and VR8305 gas controllers and supports both natural gas and LP applications. Designed for direct spark systems and can handle a maximum valve load of 2 amps at 24 Vac. Operational reliability is enhanced due to its wide operational temperature range from -40 F to +175 F.

Product Information

Technical Specifications

• Type: Two Rod Direct Spark Ignition Control
• Ignition System Type: Direct Spark
• Max Valve Load: 2 Amps @ 24 Vac
• Compatible Gas Controllers: VR8205, VR8305
• Gas Type: Natural or LP
• Ignition Source: High voltage internal generator
• Ignition Trials to Lockout: 1
• Dimensions: 5.25 inches high x 4.0625 inches wide x 1.9375 inches long
• Frequency: 60 Hz
• Max Ambient Temperature: -40 F to +175 F
