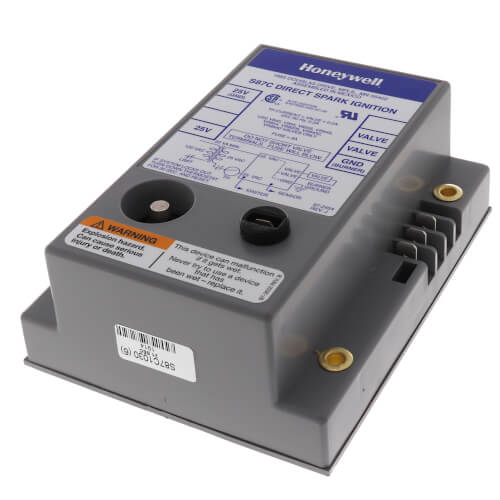

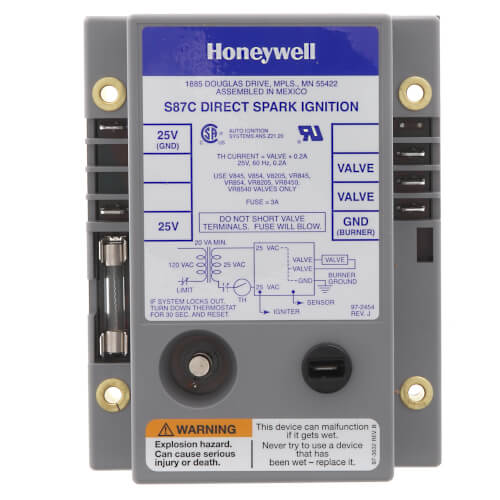

Resideo S87C1030 Two Rod Direct Spark Ignition Control 21 Second Trial Lockout Furnace Heater Parts

Product Description

The Resideo S87C1030 Two Rod Direct Spark Ignition Control enhances the functionality of gas-fired furnaces, boilers, and other heating appliances. Integrating electronic controls for direct spark ignition systems, it's engineered for efficient operation and security.

• Electronic control for direct spark systems
• High voltage ignition with a 21-second trial and lockout feature
• Compatible with VR8205 and VR8305 gas controls

Product Highlights

Designed for reliability and automated safety, the S87C1030 shuts down and locks out after one ignition trial to prevent gas buildup. A reset function via the thermostat aids in maintenance and troubleshooting.

Product Information

Standard Information

• Brand: Resideo
• MPN: S87C1030

Technical Specifications

• Ignition Type: Direct Spark Ignition
• Lockout Timing: 21 Seconds
• Ignition Trials To Lockout: 1
• Dimensions: 5.25 inches high x 4.06 inches wide x 1.94 inches long
• Electrical Ratings: 24 Vac
• Maximum Ambient Temperature: -40 F to +175 F
