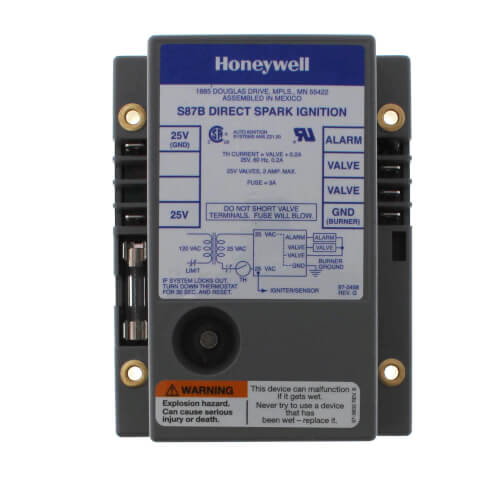

Resideo S87B1065 Single Rod Direct Spark Ignition Control w/ 4 Second Trial and Lockout Timing

Product Description

The Resideo S87B1065 is designed for electronic control of direct spark ignition systems used in gas-fired furnaces, boilers, and other heating appliances. This ignition control module manages the ignition sequence and gas control operation.

• Generates high voltage for main burner ignition.
• Features a lockout after one trial for ignition if the main burner fails to ignite.
• Allows reset from the thermostat after a lockout occurs.

Product Highlights

This ignition control module is essential for efficient management of direct spark ignition systems, accommodating various gas control types.

Product Information

Standard Information

• Brand: Resideo
• MPN: S87B1065

Technical Specifications

• Ignition System Type: Direct Spark Ignition
• Ignition Sequence: Single trial for main burner ignition
• Typical Gas Control: VR8205, VR8305
• Type of Gas: Natural or LP
• Ignition Source: Internal high voltage spark generator
• Ignition Trials to Lockout: 1
• Maximum Valve Load @ 24 Vac: 2A
• Dimensions: 5.25 inches high x 4.06 inches wide x 1.94 inches long
• Electrical Ratings: 24 Vac
• Frequency: 60 Hz
• Max Ambient Temperature: -40 F to +175 F
• Flame Failure Response Time: 0.8 seconds at 5.0 microamps
