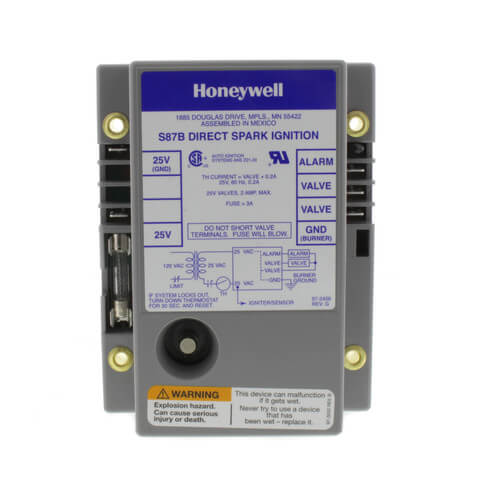

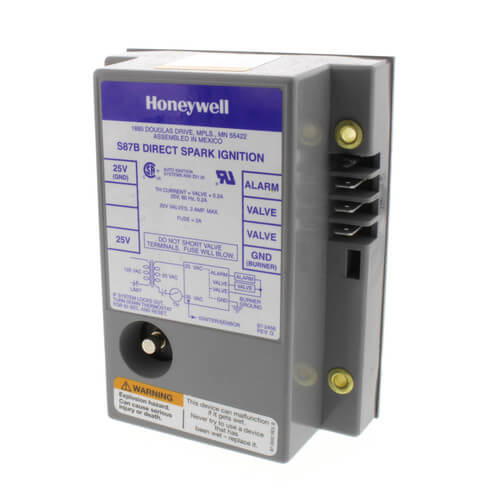

Resideo S87B1024 Single Rod Direct Spark Ignition Control 21 Second Lockout

Product Description

The Resideo S87B1024 is a single rod direct spark ignition control designed for robust and reliable performance in gas-fired furnaces, boilers, and other heating appliances. This unit is crafted to control the ignition sequence and gas control operation effectively.

• Simple and quick integration with systems rated at 2.0A or less.
• High voltage spark generation for main burner ignition.
• Automatic lockout feature after a single unsuccessful ignition trial.

Product Highlights

This ignition control unit is engineered to provide a single trial for burner ignition before shutting down and entering a lockout state, enhancing safety and efficiency. Its internal high voltage spark generator ensures reliable ignition.

Product Information

Standard Information

• Ignition System Type: Direct Spark Ignition
• Typical Gas Control: VR8205, VR8305
• Type of Gas: Natural or LP

Technical Specifications

• Ignition Trials To Lockout: 1
• Maximum Valve Load: <2A at 24 Vac
• Dimensions: 5 1/4 inches high x 4 1/16 inches wide x 1 15/16 inches long
• Electrical Ratings: 24 Vac, 60 Hz
• Max Ambient Temperature: -40°F to +175°F
• Included Components: Alarm terminal
