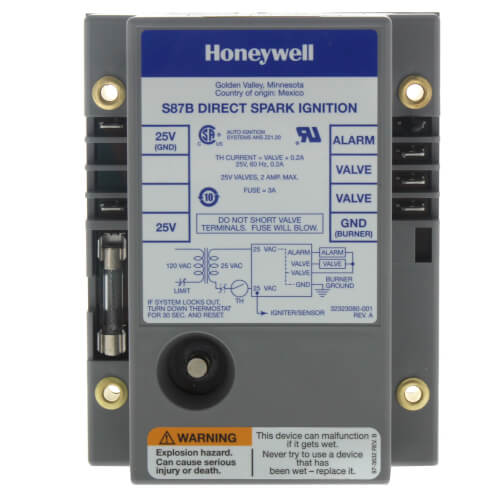

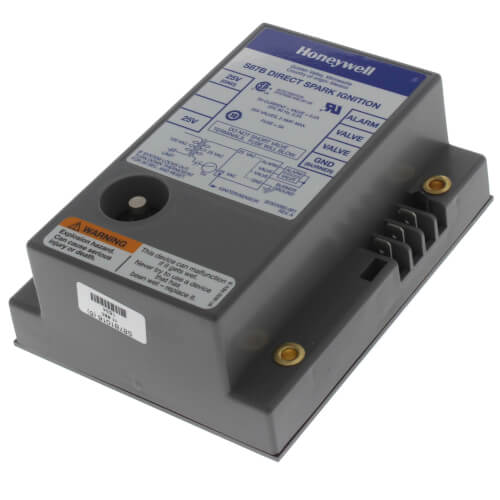

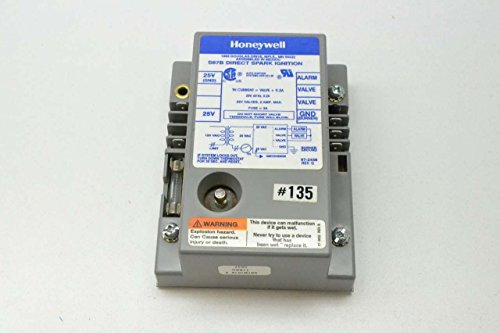

Resideo S87B1016 Single Rod Direct Spark Ignition Control w/ 11 Second Trial and Lockout Timing

Product Description

This Resideo S87B1016 ignition control module offers reliable electronic control of direct spark ignition systems, primarily utilized in gas-fired furnaces, boilers, and other heating appliances. It ensures main burner ignition through high voltage sparks and includes features like single-trial lockout and reset functionality.

• Designed for direct spark ignition.
• Features single trial with lockout to ensure safety.
• Compatible with VR8205 and VR8305 gas controls.

Product Highlights

Enhances boiler and furnace safety and efficiency.

Product Information

Standard Information

• Ignition System Type: Direct Spark Ignition
• Ignition Trials To Lockout: 1

Technical Specifications

• Electrical Ratings: 24 Vac
• Frequency: 60 Hz
• Max Ambient Temperature: -40 F to +175 F
• Dimensions: 5.25 inches high x 4.0625 inches wide x 1.9375 inches long
• Ignition Source: Internal high voltage spark generator
• Typical Ignition Hardware: Q347A
