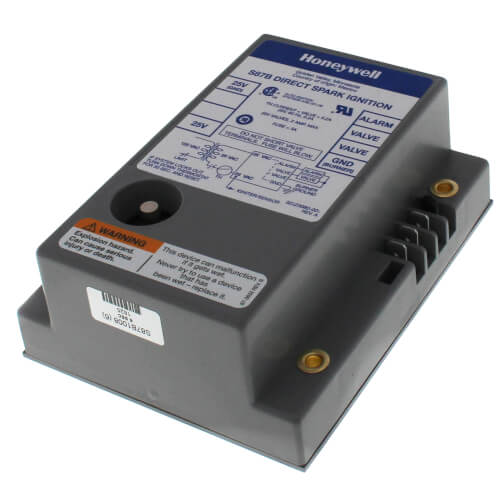

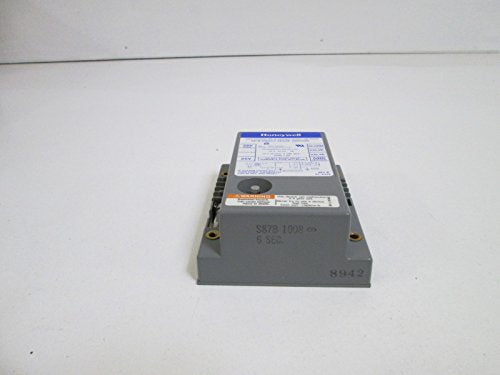

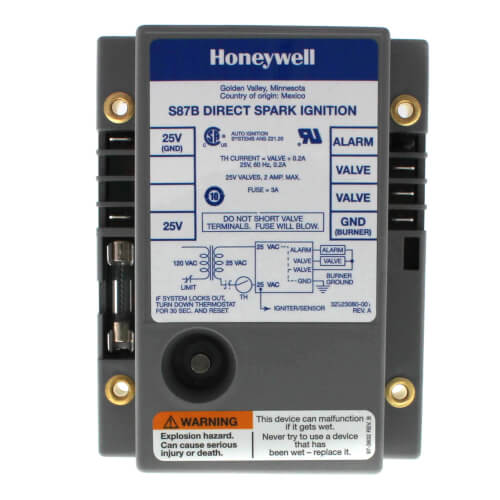

Resideo S87B1008 Single Rod Direct Spark Ignition Control 6 Second Trial and Lockout

Product Description

The Resideo S87B1008 Single Rod Direct Spark Ignition Control is engineered to provide reliable electronic control of gas fire furnaces, boilers, and other heating appliances that use natural or LP gas. This device meticulously manages the ignition sequence and gas control, ensuring efficient operation and safety.

• High voltage ignition for main burner with 6 second trial.
• Automatic lockout feature post one unsuccessful ignition trial.
• Resets via thermostat post-lockout, enhancing usability and safety.

Product Highlights

Designed for dependability and ease of installation, the S87B1008 is compatible with gas controls like the VR8205 and VR8305 and is perfect for both new installations and replacements in residential or commercial settings.

Product Information

Standard Information

• Type of Gas: Natural or LP
• Ignition System Type: Direct Spark

Technical Specifications

• Ignition Trials To Lockout: 1
• Lockout Timing: 6 seconds
• Dimensions: 5.25 inches high x 4.06 inches wide x 1.94 inches long
• Electrical Ratings: 24 Vac, 60 Hz
• Maximum Ambient Temperature: -40 to 175 Fahrenheit
• Included: Alarm Terminal
