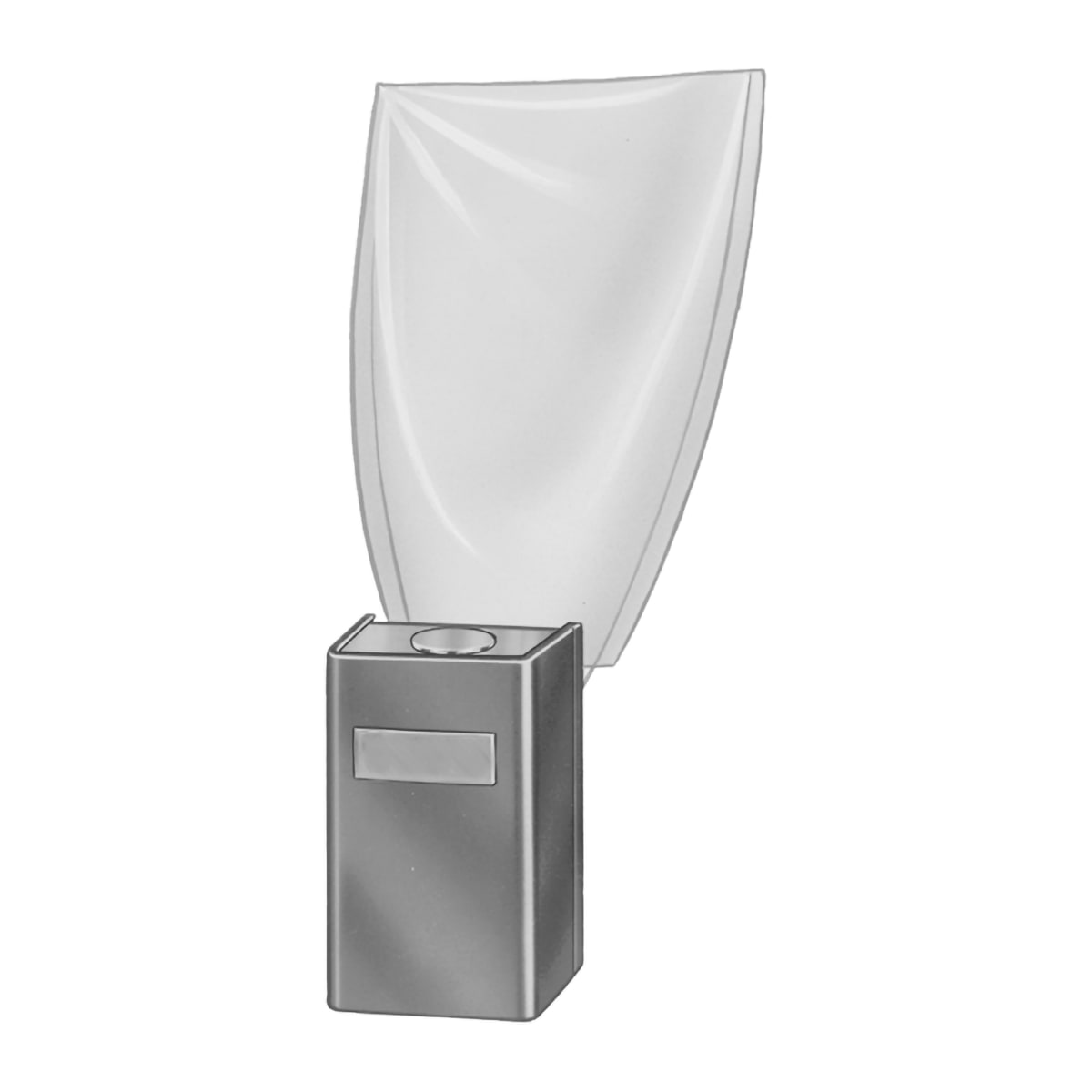

Resideo S688A1007/U Sail Switch with 5 in wide sail

Product Description

The Resideo S688A1007/U is a sail switch designed to activate an electronic air cleaner, humidifier, or other equipment based on airflow from the system fan. It is mounted in the return air duct where the sail is positioned in the direct path of the airflow.

• Facilitates installations with multi-speed fans and inaccessible air handlers.
• Includes a polyester film sail mounted on a micro switch snap switch.
• Offers removable spring counterbalance for mounting in vertical or horizontal airflow.

Product Highlights

This sail switch provides reliable operation with low air velocity, engaging at two hundred fifty feet per minute (fpm) and breaking at seventy-five fpm.

Product Information

Standard Information

• Brand: Resideo
• MPN: S688A1007/U

Technical Specifications

• Type: Miscellaneous Parts
• Application: Air Flow Switch
• Insertion Length: ten inches
• Sail Dimensions: five inches wide
• Electrical Rating for NO Contacts: 2.0 A @ 24 V AC, 120 V AC
• Electrical Rating for NC Contacts: 1.0 A @ 240 V AC
• Approvals and Standards: UL Listed, CSA Certified
