Product Description

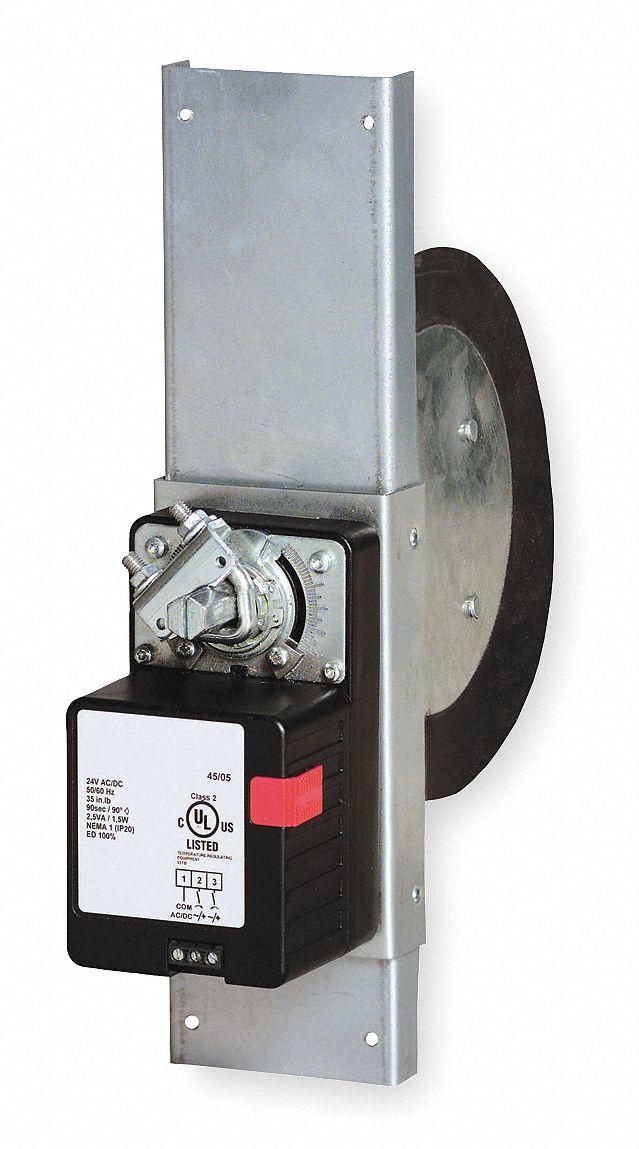

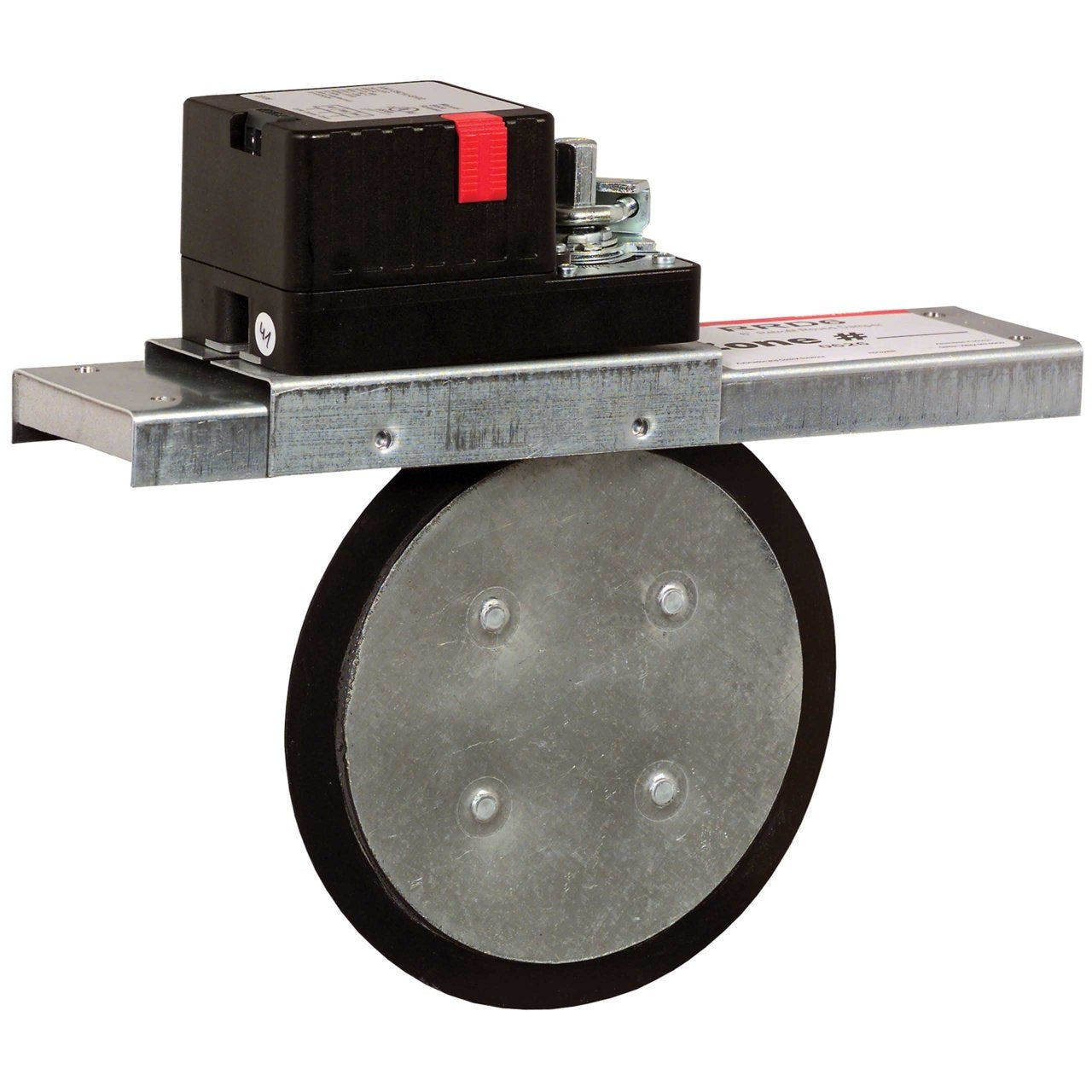

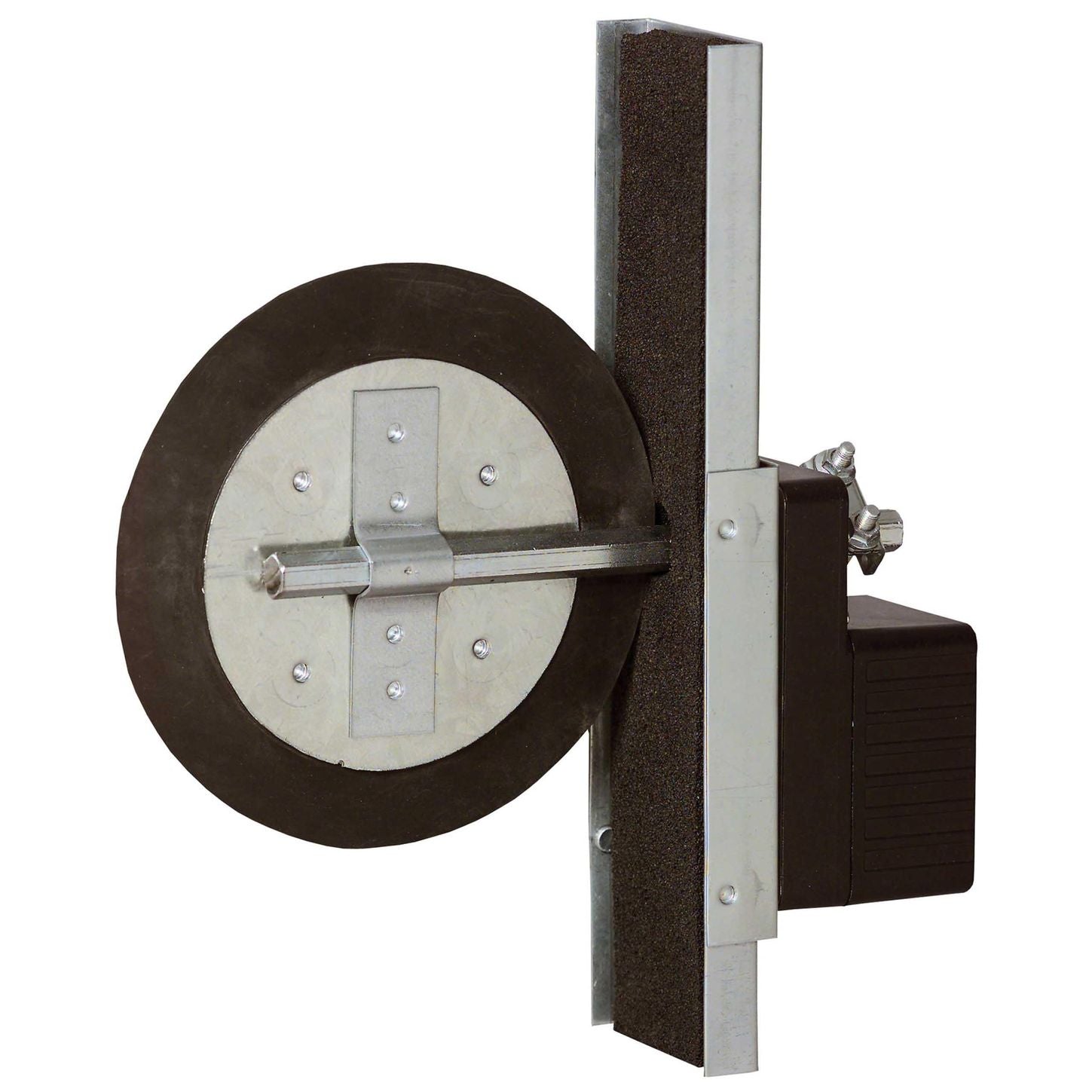

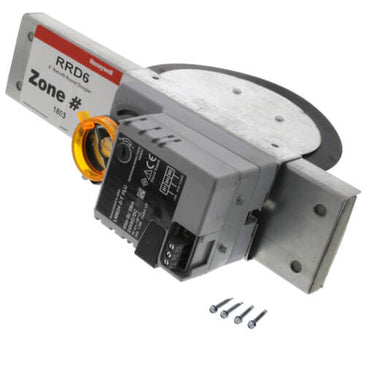

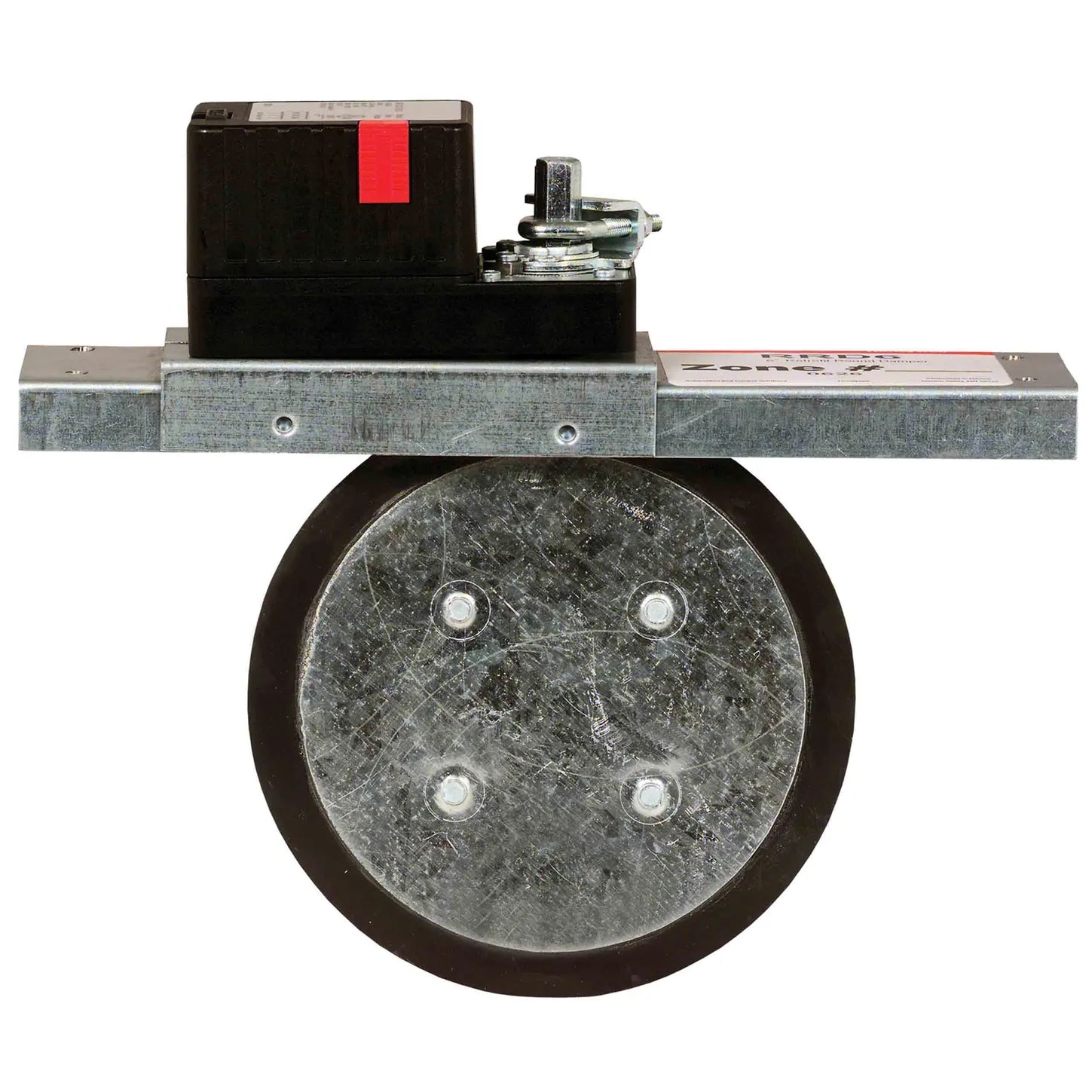

The RESIDEO RRD6 is a 6" round damper designed for retrofit applications. Designed to slide into rigid round ductwork, it is ideal for retrofit zoning. It features a visual position indicator and a 2.5 VA 90 second actuator. With durable galvanized steel construction, this device is compatible with all Honeywell Home zoning panels.
- Designed to slide into rigid round ductwork
- Ideal for retrofit zoning
- Visual position indicator
Product Highlights
The Resideo RRD6 damper features galvanized steel construction and is compatible with all Honeywell Home zoning panels.
Product Information
Standard Information
-
Brand: RESIDEO
-
Manufacturer Part Number: RRD6
Technical Specifications
-
Manufacturer: Resideo
-
Manu: HW
-
Product Item: RRD6
-
Minimum Qty: 1
-
Available Qty: 5
-
Damper Duct Shape Type: Round
-
Damper Type: Retrofit
-
Application: Retrofit Zone Damper
-
Damper Material: Galvanized Steel
-
Warranty: 5 Years
-
Approvals and Standards: NEMA 1, UL listed
-
Includes: Installation Instructions, Adhesive backed cutout template, 4 1-1/2 in self-drilling hex washer head screws, 12 Mounting screws
-
Product Height: 3.18 in
-
Product Length: 10.75 in, 273 mm
-
Product Width: 2.63 in, 67 mm
-
Actuator Power Consumption: 1.5 watts running
-
Actuator Torque: 45 in. lb, 5 Nm
-
Blade Material: Galvanized Steel
-
Leakage: 3.4% at 0.5 in WC
-
Actuator Closing Time: 90 sec
-
Actuator Frequency: 50 Hz, 60 Hz
-
Actuator Mounting Location: Direct Couple
-
Actuator Open Action: Counter Clockwise
-
Actuator Opening Time: 90 sec
-
Actuator Voltage: 24 Vac
-
Ambient Operating Temperature (Max): 122 °F, 50 °C
-
Ambient Operating Temperature (Min): -40 °F, -40 °C
-
Blade Gauge: 20 gauge
-
Damper Gauge: 18 gauge
-
Electrical Connection Type: Screw terminals for 14 to 26 gauge wire
-
Number of Wiring Terminals: 3
-
Pressure Drop (Max): < .05 in W.C.
-
Product Diameter: 6 in
-
Shipping and Storage Temperature (Max): 120 °F
-
Shipping and Storage Temperature (Min): -20 °F
-
Item Number: RRD6
-
Brand: Resideo
-
MPN: RRD6
-
UPC/EAN: 85267274173
