Resideo RRD5/U 5 in Retrofit Round Damper

Product Description

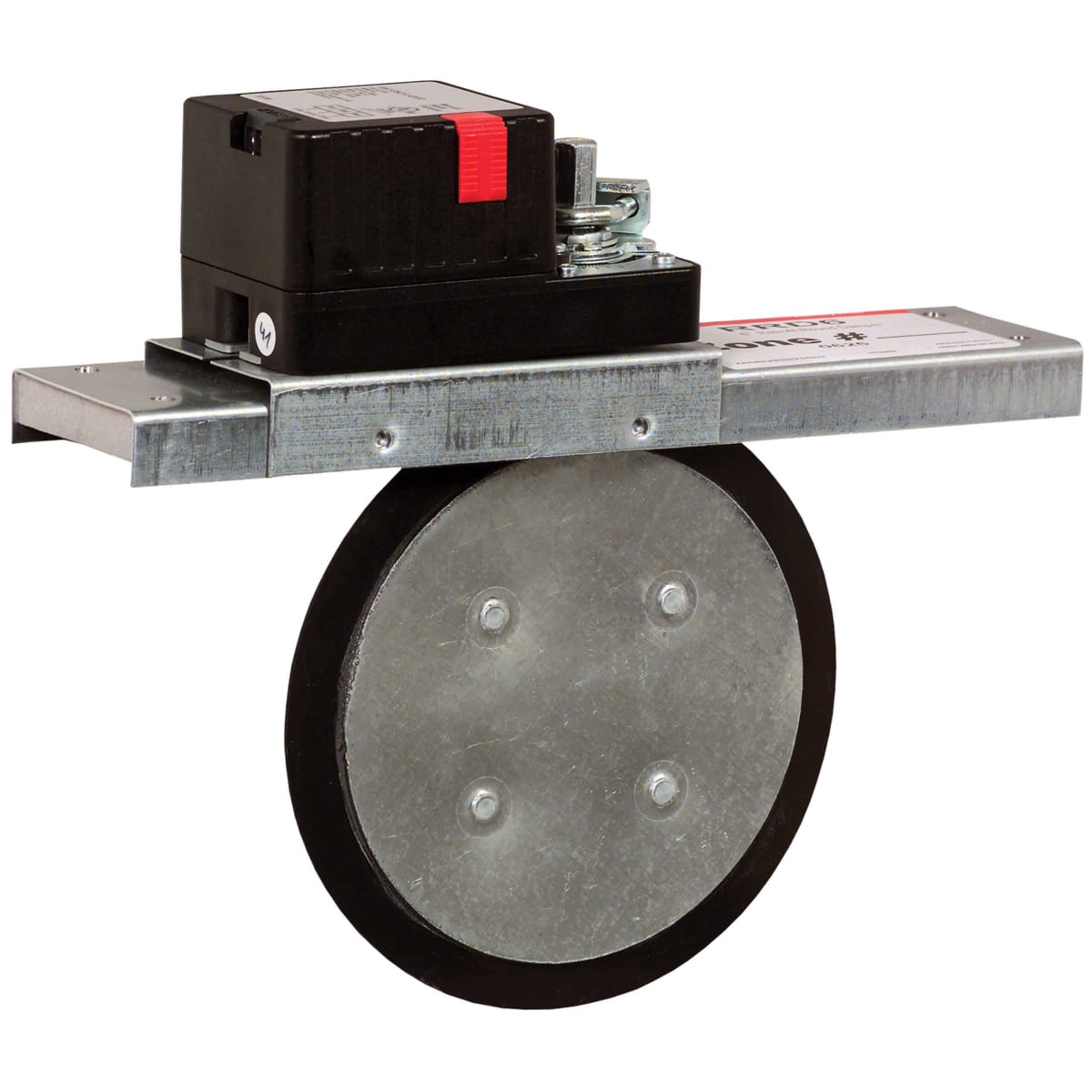

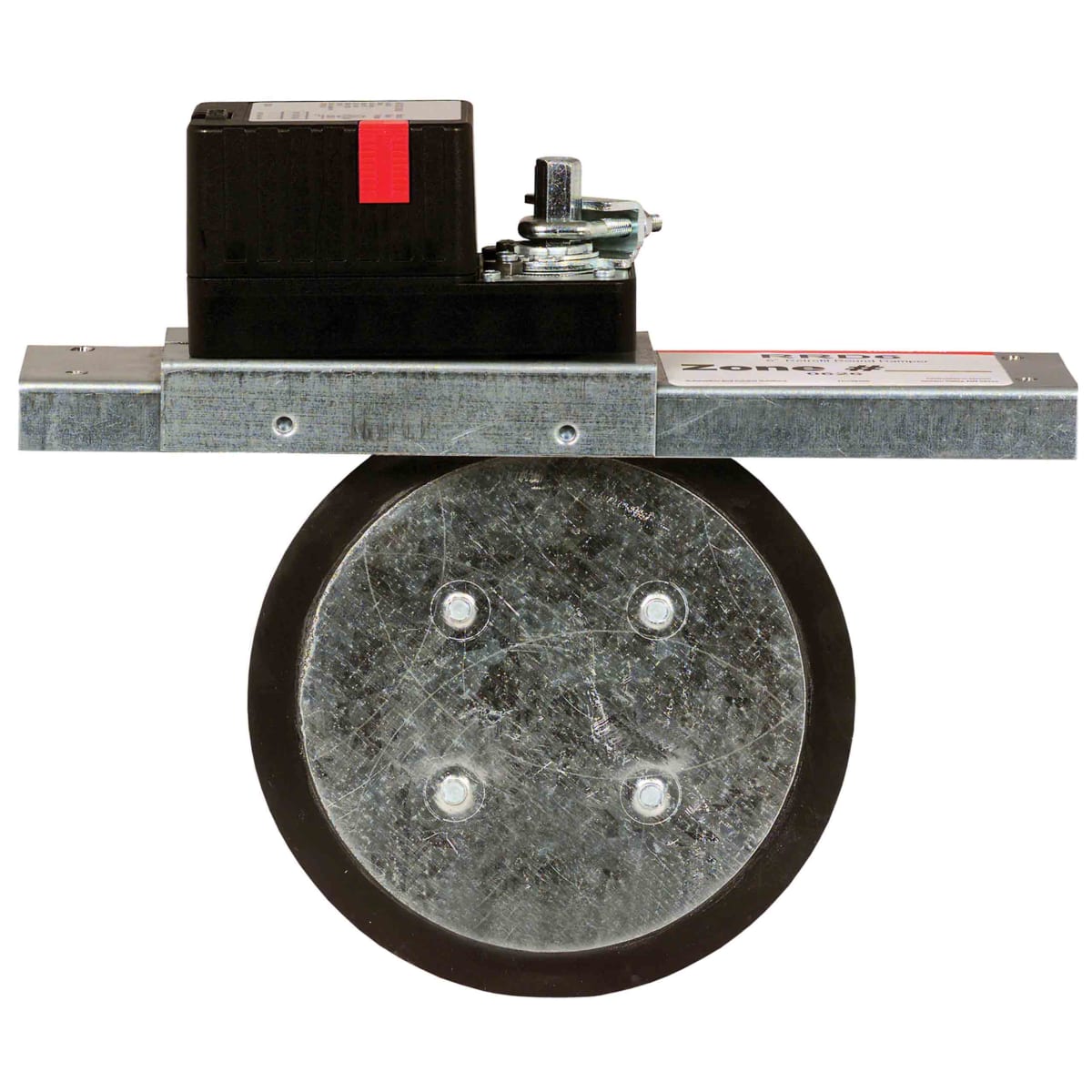

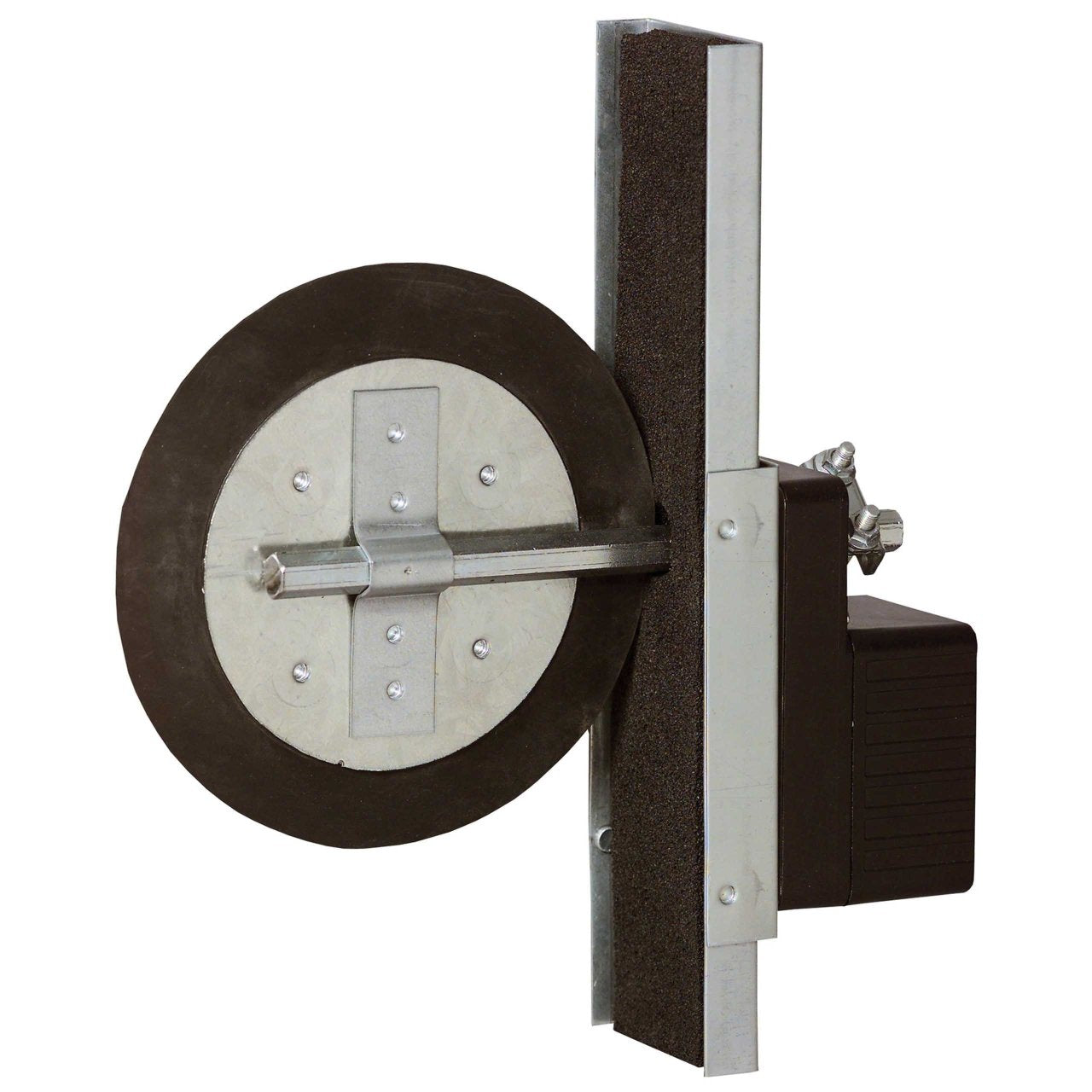

The RESIDEO RRD5/U is a 5-inch retrofit round damper designed for simplified retrofit zoning applications. This durable galvanized steel damper slides into rigid round ductwork, featuring a visual position indicator and a 2.5 VA 90-second actuator. It is compatible with Honeywell Home TrueZONE panels and similar zone control systems, offering low internal and external leakage for efficient HVAC zone control.

• Easy slide-in installation for rigid round ductwork
• Quiet, long-life motor automatically shuts off in full open and closed positions
• Gaskets around blade and under motor housing ensure low internal and external leakage

Product Highlights

Simplified retrofit zoning solution with durable galvanized steel construction and low leakage.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: RRD5/U
• Country of Origin: N/A

Technical Specifications

• Color: Stainless Steel/Black
• Leakage: 3.4% at 0.5 in WC
• Application: Retrofit Zone Damper
• Damper Type: Retrofit
• Compatibility: Honeywell Home TrueZONE panels and similar zone control systems
• Actuator Torque: 45 in. lb / 5 Nm
• Damper Material: Galvanized Steel
• Approvals and Standards: NEMA 1, UL listed
• Actuator Power Consumption: 1.5 watts running
