Resideo RRD5 Retrofit Round Damper 5 inches 24V

Product Description

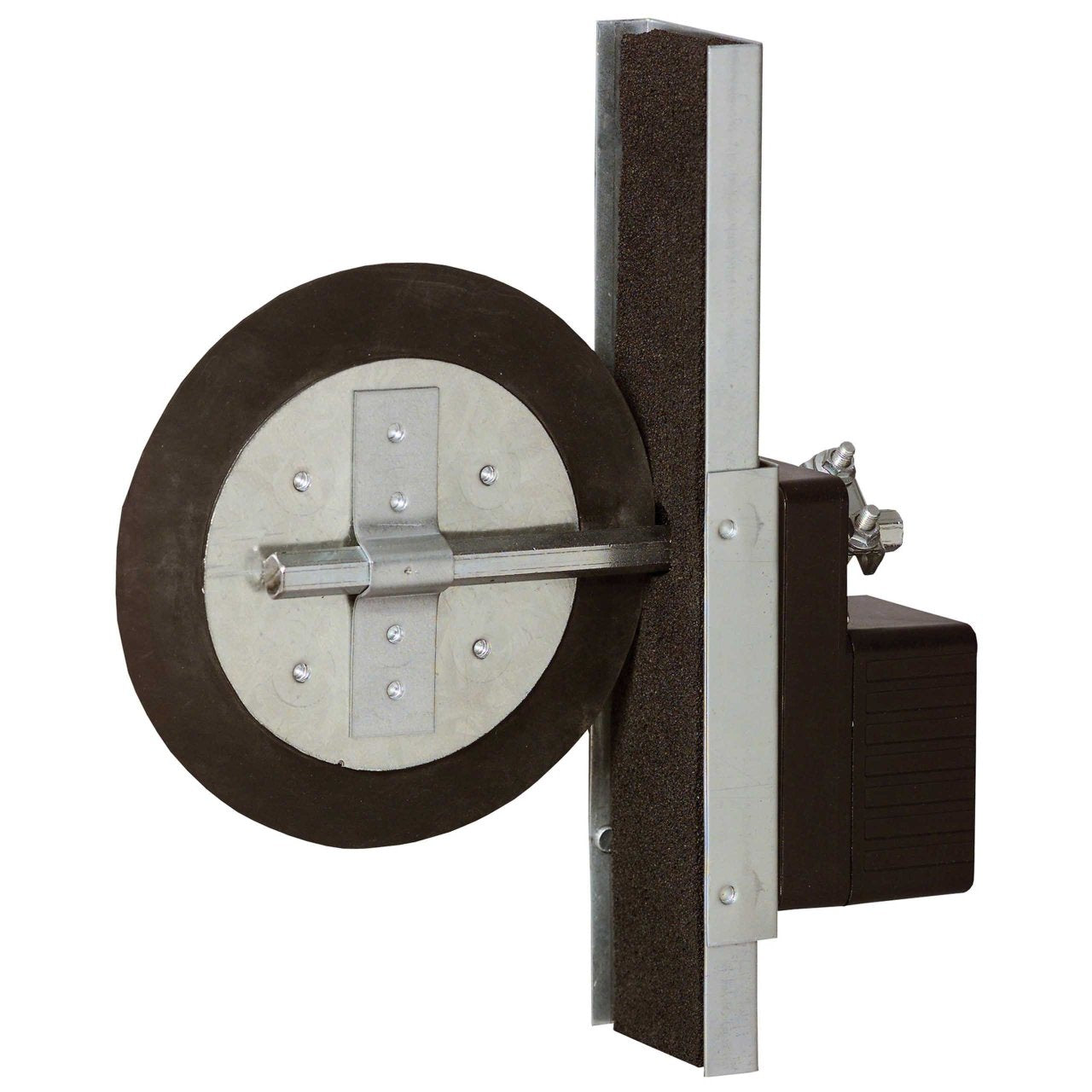

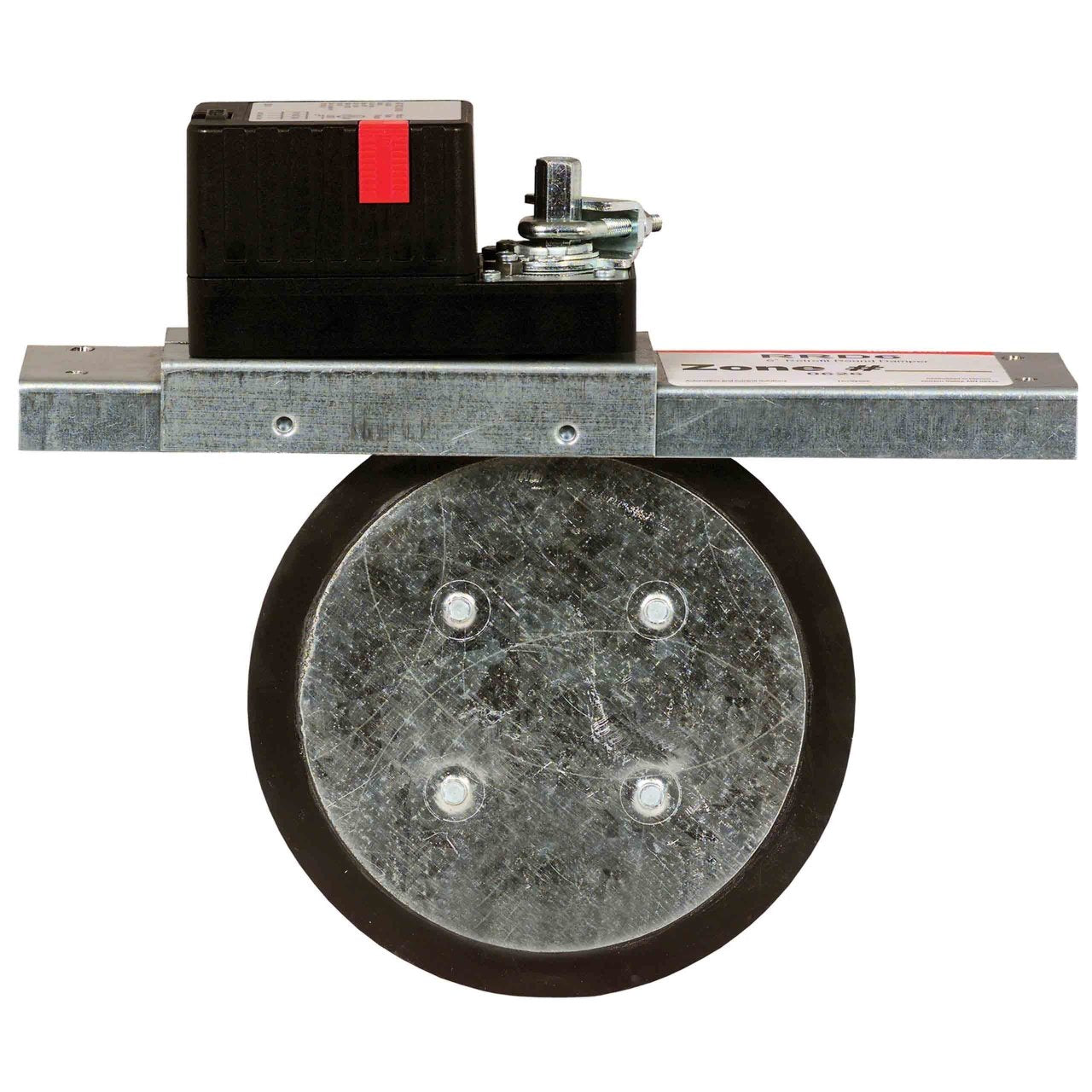

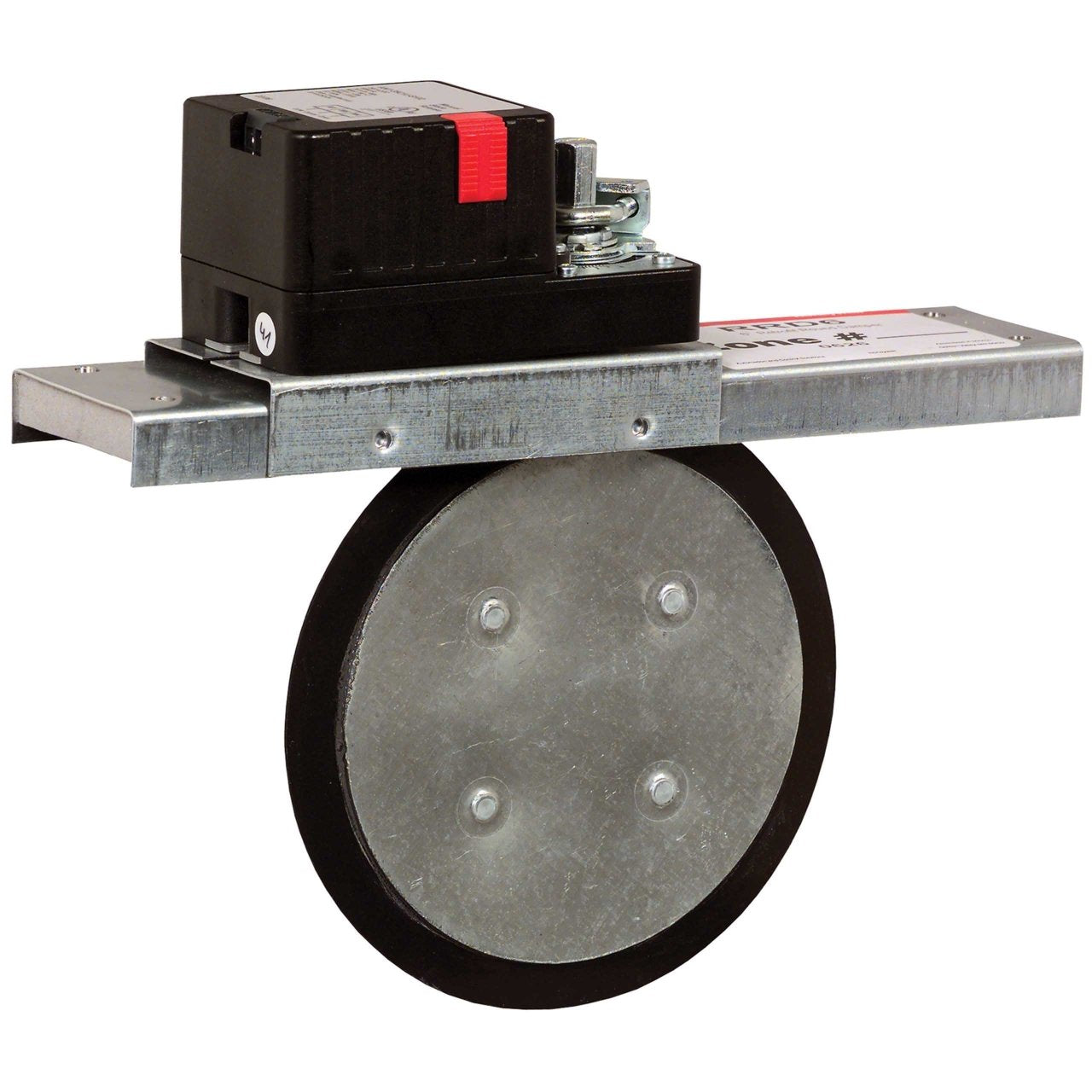

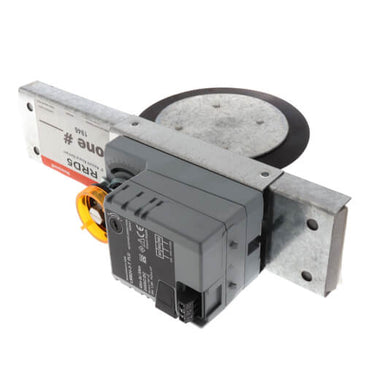

The RESIDEO RRD5 is a 5" round damper designed for retrofitting into existing ductwork. Designed to slide into rigid round ductwork, it features a visual position indicator and a 2.5 VA 90 second actuator. Constructed with durable galvanized steel, this damper is compatible with all Honeywell Home zoning panels.

• Retrofit Zoning Simplified
• Designed to slide into rigid round ductwork
• Ideal for retrofit zoning

Product Highlights

The RESIDEO RRD5 damper provides precise airflow control in HVAC systems and is ideal for retrofit zoning.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: RRD5

Technical Specifications

• Manufacturer: Resideo
• Product Item: RRD5
• Damper Duct Shape Type: Round
• Damper Type: Retrofit
• Application: Retrofit Zone Damper
• Damper Material: Galvanized Steel
• Warranty: 5 Years
• Approvals and Standards: NEMA 1, UL listed
• Includes: Installation Instructions, Adhesive backed cutout template, 4 1-1/2 in self-drilling hex washer head screws, 12 Mounting screws
• Actuator Power Consumption: 1.5 watts running
• Actuator Torque: 45 in. lb
• Blade Material: Galvanized Steel
• Leakage: 3.4% at 0.5 in WC
• Actuator Closing Time: 90 sec
• Actuator Frequency: 50 Hz, 60 Hz
• Actuator Mounting Location: Direct Couple
• Actuator Open Action: Counter Clockwise
• Actuator Opening Time: 90 sec
• Actuator Voltage: 24 Vac
• Ambient Operating Temperature (Max): 122 °F
• Ambient Operating Temperature (Min): -40 °F
• Blade Gauge: 20 gauge
• Damper Gauge: 18 gauge
• Electrical Connection Type: Screw terminals for 14 to 26 gauge wire
• Number of Wiring Terminals: 3
• Pressure Drop (Max): < .05 in W.C.
• Product Diameter: 5 in
• Shipping and Storage Temperature (Max): 120 °F
• Shipping and Storage Temperature (Min): -20 °F
• Item Number: RRD5
• Brand: Resideo
