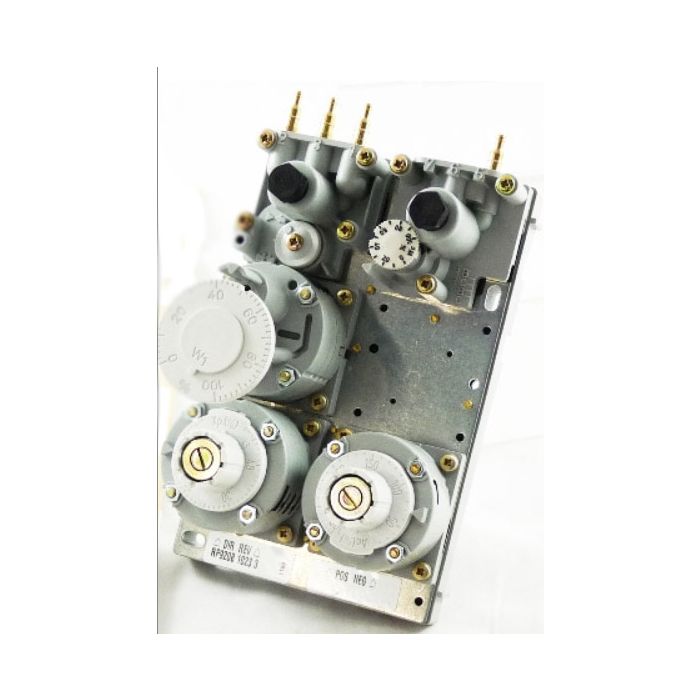

Resideo RP920B1031 Pneumatic Controller Remote Dual Input Proportional Controller

Product Description

The Resideo RP920B1031 is a pneumatic controller ideal for HVAC systems. It features a dual input design for proportional control. The controller offers direct acting action for reliable performance and is suitable for various pneumatic applications.

• Direct acting design for precise control
• Includes remote control point adjustment capability
• Compatible with dual sensor inputs

Product Highlights

This controller is built for effective temperature control in HVAC systems. It operates efficiently within a wide range of ambient temperatures, making it a versatile choice for professionals.

Product Information

Standard Information

• Brand: Resideo
• Manufacturer: Resideo

Technical Specifications

• Action: Direct Acting
• Airflow Usage: 0.07 scfm with 1 psi Pressure Drop at 18 psi Main Air Supply
• Ambient Temperature Range: 40°F to 130°F (5°C to 55°C)
• Capacity: 0.046 scfm at 18 psi MLP and 8.5 psi BLP (does not include sensor usage)
• Dimensions: 5-7/8 H x 3-13/16 W x 3-1/4 D without cover; 3-3/8 D with cover
• Input Signal: 3 to 15 psi
• Mainline Pressure Range: 17 to 21 psi
• Operating Humidity Range: 5% to 95% RH
• Output Pressure Range: 3 to 13 psi, Output Signal Maximum is Mainline Pressure Minus 1/2 psi
