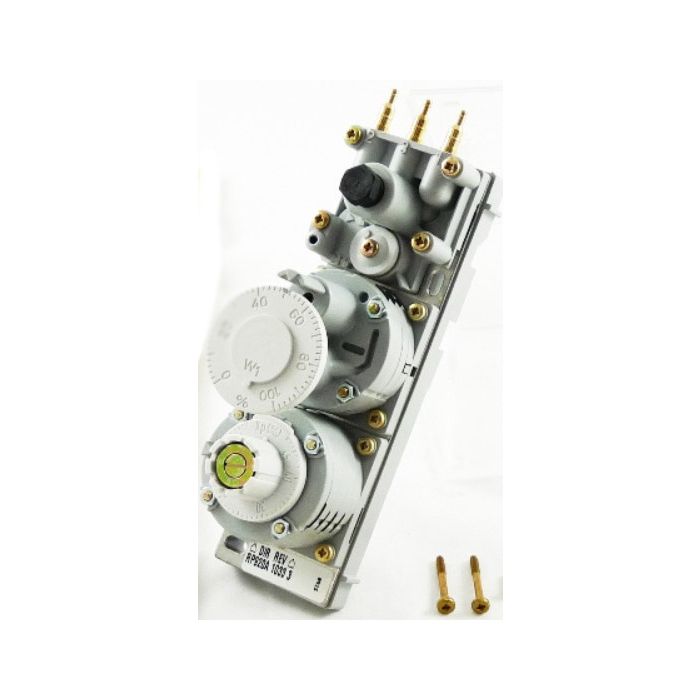

Resideo RP920A1033 Pneumatic Controller, Remote, Direct Action Single Input Proportional Controller, D/A

Product Description

The Resideo RP920A1033 is a pneumatic controller designed for reliable temperature control in HVAC systems. This model features a remote control point adjustment capability and operates as a direct acting controller.

• Input Signal: 3 to 15 psi
• Max Operating Ambient Temperature: 130°F
• Airflow Usage: 0.07 scfm at 1 psi Pressure Drop

Product Highlights

This controller is suitable for various HVAC applications. It helps in maintaining consistent temperature levels in pneumatic systems.

Product Information

Standard Information

• Manufacturer: Resideo
• Part Number: 094979

Technical Specifications

• Action: Direct Acting
• Dimension: 5-7/8 H x 3-13/16 W x 3-1/4 D without cover; 3-3/8 D with cover
• Capacity: 0.021 scfm at 18 psi MLP and 8.5 psi BLP
• Mainline Pressure Range: 17 to 21 psi
• Operating Humidity Range: 5% to 95% RH
• Maximum Safe Operating Pressure: 30 psi
• Ambient Temperature Range: 40°F to 130°F (5°C to 55°C)
• Output Pressure Range: 3 to 13 psi, with output signal maximum being mainline pressure minus 1/2 psi
