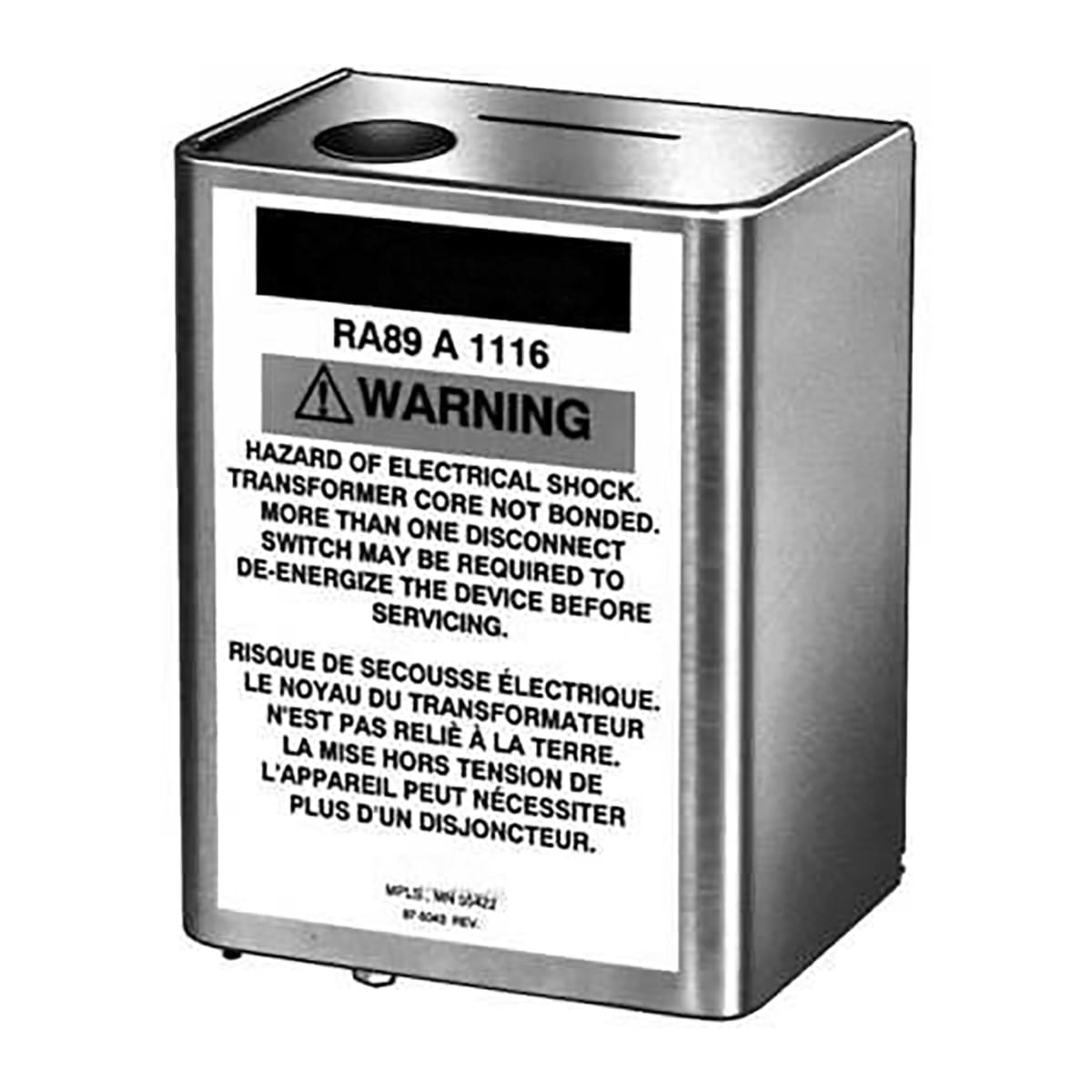

Resideo RA89A1116/U Switching Relay W. Internal Transformer

Product Description

This switching relay with internal transformer from Resideo, model RA89A1116/U, enables intermediate SPST switching of a line voltage device using a low voltage controller. It incorporates an integral transformer which provides low voltage power for the control circuit. This system is useful for various heating applications.

• Features an integral transformer for low voltage power.
• Designed for intermediate SPST switching.
• UL Listed and CSA Certified for safety.

Product Highlights

This relay is ideal for controlling heating systems efficiently and safely.

Product Information

Standard Information

• Brand: Resideo
• MPN: RA89A1116/U

Technical Specifications

• Application: Switching Relay
• Electrical Rating AFL: 10.2A @ 120 V AC / 5.1A @ 240 V AC
• Electrical Rating ALR: 61.2A @ 120 V AC / 30.6A @ 240 V AC
• Electrical Rating Resistive: 10A @ 120 V AC
• Warranty: 1 Year
• Approvals and Standards: UL Listed - File No. E4436, CSA Certified - File No. LR1620
• Includes: Integral transformer, enclosure
