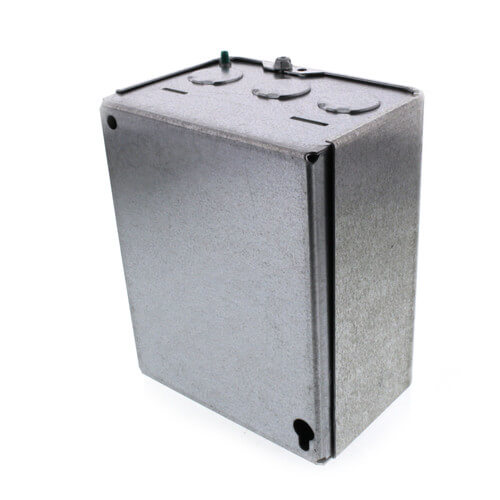

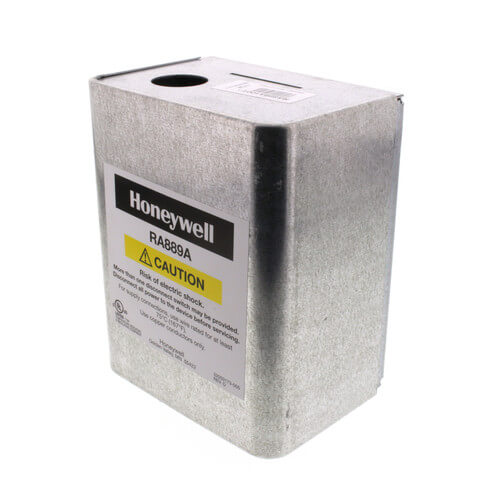

Resideo RA889A1001 120V 60 Hz Switching Relay with SPDT Switching

Product Description

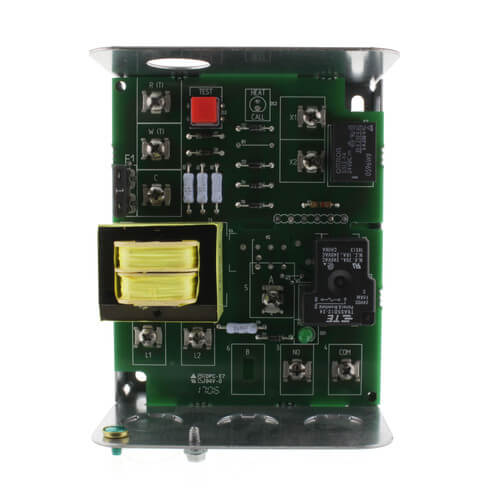

The Resideo RA889A1001 offers robust intermediate switching of line voltage devices from a low voltage controller. This product is designed with contractors and HVAC professionals in mind, ensuring reliable control of heating systems. Exceptionally built for high load switching, it features a push-to-test button and troubleshooting LED to simplify maintenance and setup.

• High load switching of up to 2000 VA with integral 24V transformer
• Durable SPDT switching with additional SPST PowerPile-rated relay
• Wide operating temperature range from -29C to +49C

Product Highlights

This switching relay is constructed to manage line-voltage devices through a low-voltage control mechanism and is adaptable for various applications including zoning with a simplistic wiring installation method.

Product Information

Standard Information

• Electrical Ratings: 120V, 60 Hz with a secondary output of 24 Vac, 12 VA
• Temperature Stability: Operates effectively within ambient temperature ranges of -20 F to +120 F

Technical Specifications

• Dimensions: Height: 6 1/4 inches, Width: 4 7/16 inches, Depth: 3 1/2 inches
• Maximum Load: Electrical ratings include AFL 15 Amps and ALR 30 Amps at 120VAC
• Safety Certifications: UL Listed, includes essential protection features like a replaceable automotive fuse
• Compatibility: Fits well with Honeywell electromechanical and electronic 2- or 3-wire thermostats
