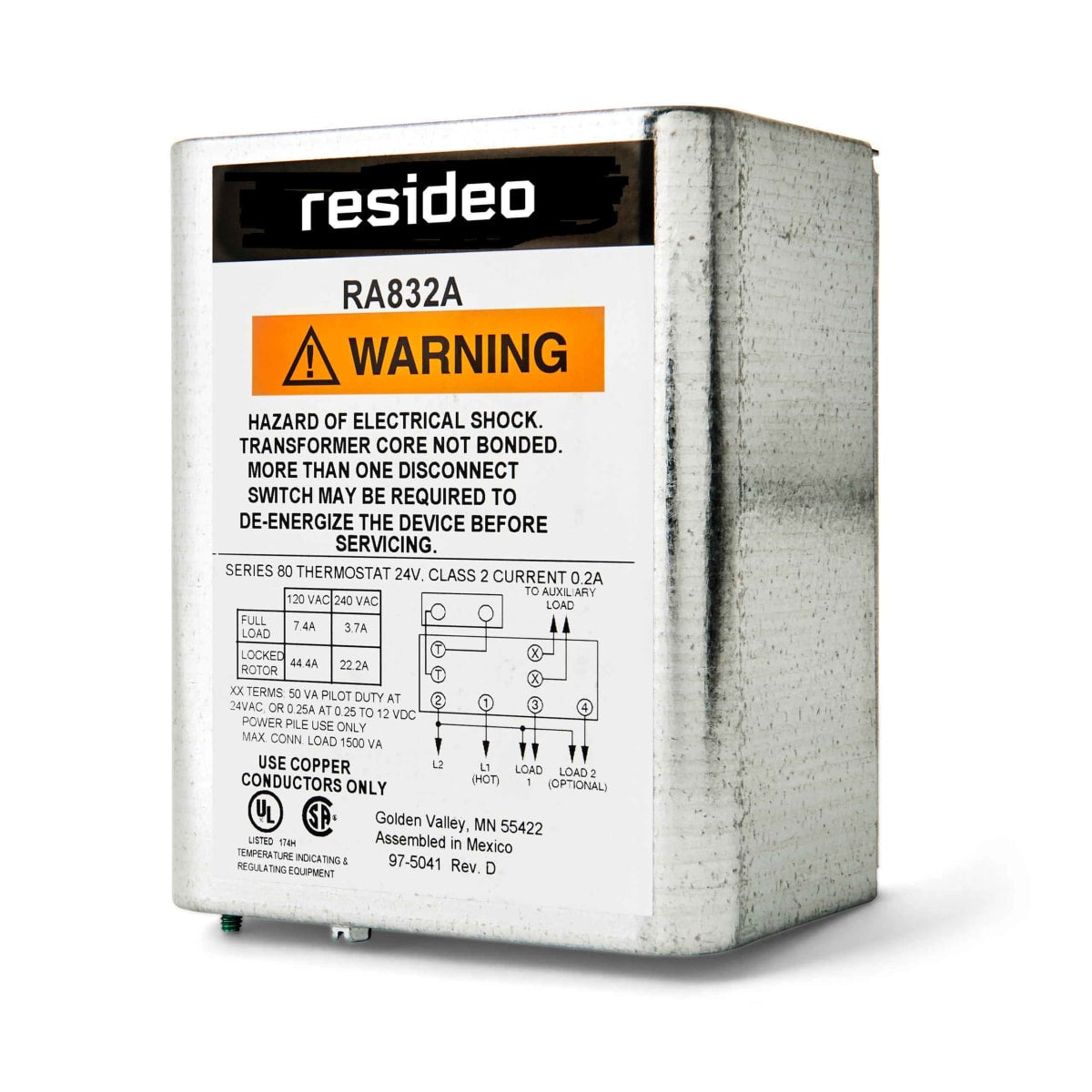

Resideo RA832A1074/U 240V Switching Relay With Internal Transformer

Product Description

The Resideo RA832A1074/U is a 240V switching relay designed for low voltage control. This relay operates with an internal transformer for reliable switching of line voltage devices from low voltage controllers. It features a double pole single throw (DPST) configuration.

• Includes an integral transformer for low voltage power supply.
• Suitable for DPST switching of line voltage devices.
• One relay pole for low voltage or millivoltage auxiliary loads.

Product Highlights

This product enables efficient control of electrical systems, making it ideal for HVAC, heating systems, and other applications requiring reliable relay functionality.

Product Information

Standard Information

• Brand: Resideo
• Part Number: HONE-RA832A1074/U

Technical Specifications

• Contact Electrical Rating (AFL): 7.4A at 120V AC, 3.7A at 240V AC
• Contact Electrical Rating (ALR): 44.4A at 120V AC, 22.2A at 240V AC
• Contact Electrical Rating (Resistive): 10A at 120V AC, 6.0A at 240V AC
• Application: Enclosed intermediate switching from low voltage controller
• Warranty: 1 Year
• Approvals and Standards: UL Listed, CSA Certified
• Includes: Integral transformer, enclosure
