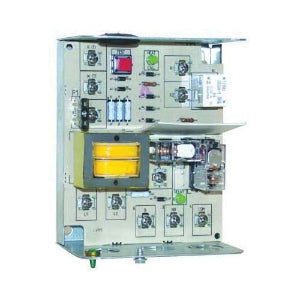

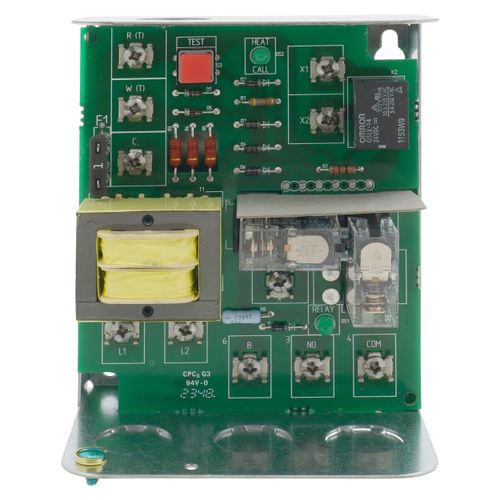

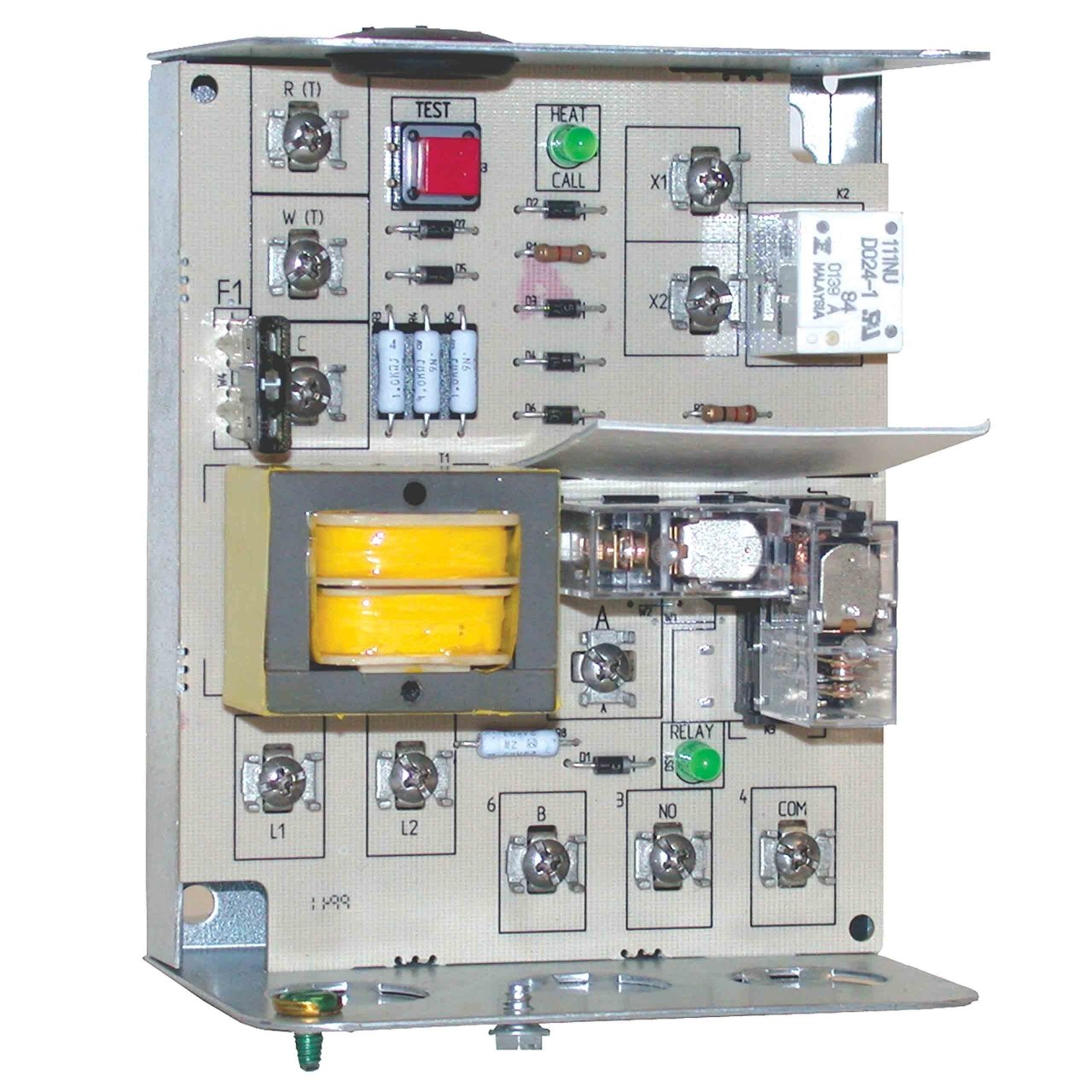

Resideo R8845U1003/U universal switching relay 120VAC

Product Description

The Resideo R8845U1003/U Universal Switching Relay with internal transformer provides intermediate switching of line-and low-voltage devices from a line- or low-voltage controller, typically applied in hydronic heating systems. It facilitates 24V 2 or 3 wire thermostat control of line voltage devices, incorporating two line voltage SPST relays and one low voltage SPST relay with PowerPile rating.

• 120V Power Method
• Two SPST, plus PowerPile rated low voltage SPST relay
• Replaceable socketed relays

Product Highlights

Universal switching relay with internal transformer for line and low voltage devices. Ideal for hydronic heating systems with 24V thermostat control.

Product Information

Standard Information

• Brand: Resideo
• Manufacturer Part Number: R8845U1003/U

Technical Specifications

• Application: Zoning
• Number of Zones: 1
• Width: 4-7/16"
• Height: 6-1/4"
• Amperage: 7.4
• Power Method: 120V
• Voltage: 120v
• Hertz: 60
• Depth (Inches): 3-1/2"
• Ambient Conditions: -20 F to +120 F 0-90% RH non-condensing
• Switch Action: Two SPST
• Relays: Low Voltage SPST
• Thermostat Compatibility: Electronic 2-wire Electronic 3-wire Honeywell Electromechanical
• Approvals and Standards: UL Listed: File No. E4436, Guide No. XAPX, CSA Listed: Guide No. XAPX7

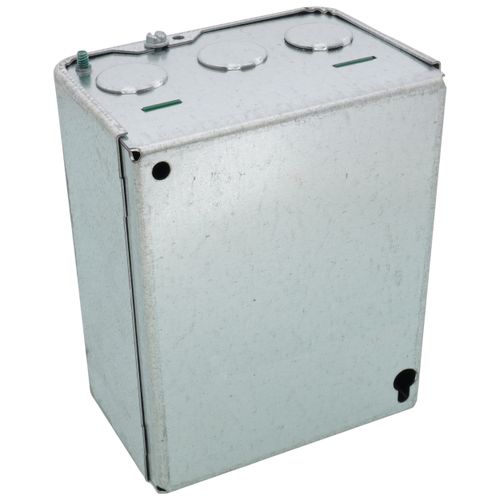

• Includes: Integral transformer, Enclosure
• Coil Rating Voltage: 24 V ac
• Coil Connection Type: Control Circuit 2 or 3 Wire
• Number of Poles: 1 Pole
• Power Supply Frequency: 60 Hz
• Amperage Rating: 0.4 A
• Coil Voltage: 24 V AC
• Frequency Rating: 60 Hz
• Mounting Type: Surface
• Temperature Rating: -20 to 120 deg F
• Voltage Rating: 120 V AC
• Application Type: For 24 volt 2 or 3 wire thermostat control of line voltage device, two line voltage SPST relays and one low voltage SPST relay with PowerPile® rating
