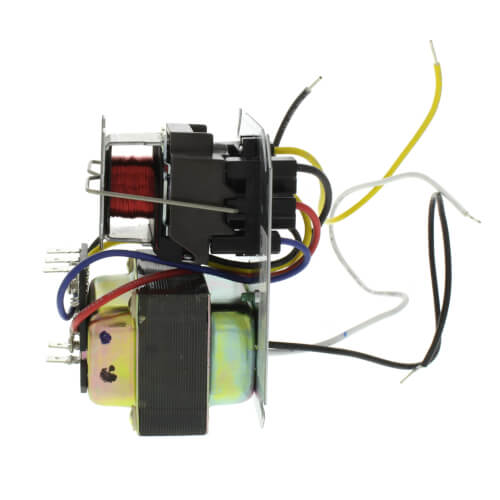

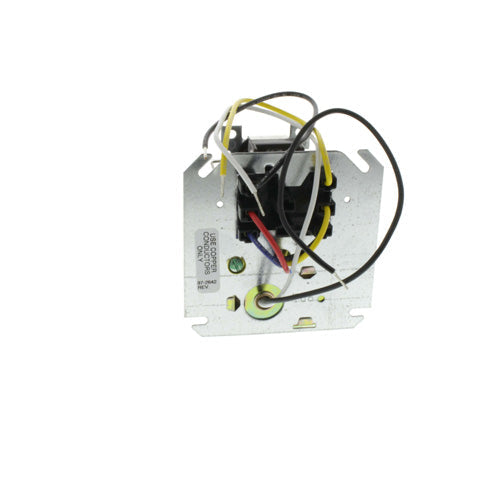

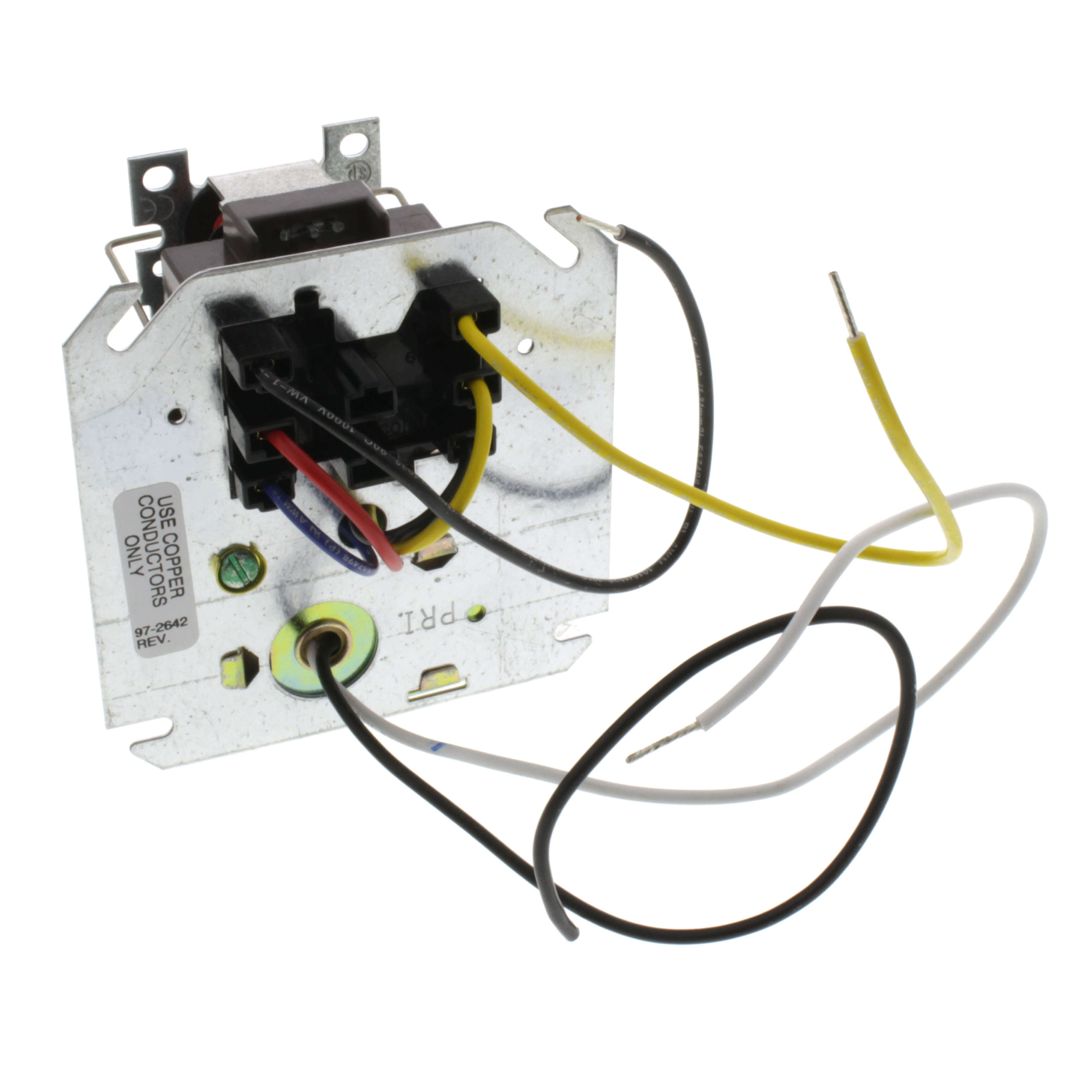

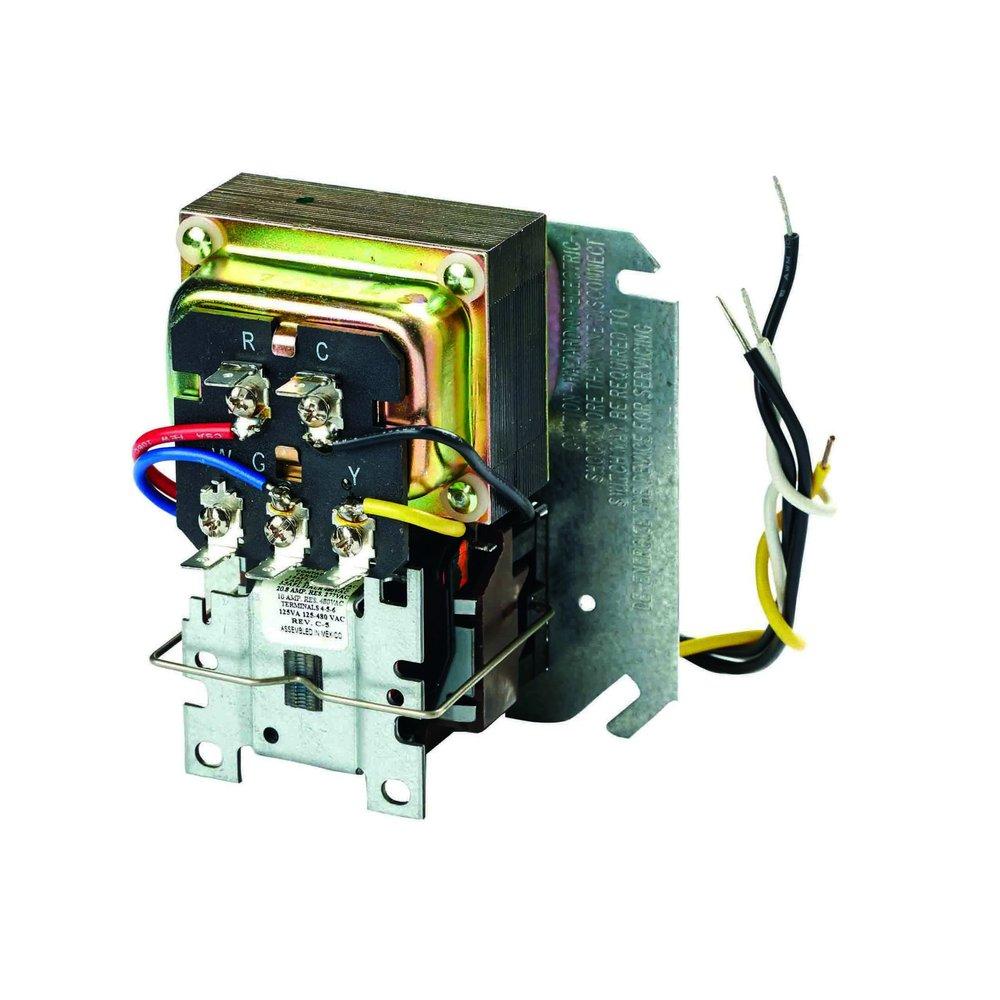

Resideo R8285D5001 R8285 50 VA Fan Center with SPDT Switching Action

Product Description

The Resideo R8285D5001 is a 50 VA fan center designed with SPDT switching action. This device facilitates low voltage control of line voltage fan motors and circuits in heating, cooling, or air conditioning systems. Its low voltage terminal board allows simple connections for thermostat and heating or cooling equipment wiring.

• Transformer offers overload protection and powers low voltage control systems.
• Relay can be replaced without disturbing existing wiring.
• Compatible with hydronic applications, including the SV9600 SmartValve System.

Product Highlights

Ideal for HVAC systems that require reliable control over fan motors.

Product Information

Standard Information

• Manufacturer: Resideo
• Part Number: R8285D5001

Technical Specifications

• Type: DPST
• Voltage: 120v
• Weight: 2.62 lbs
• Length: 5.8 inches
• Width: 7.4 inches
• Height: 5.25 inches
• Shipping Dimensions: Depth - 7.15 inches, Width - 5.5 inches, Height - 5.4 inches
