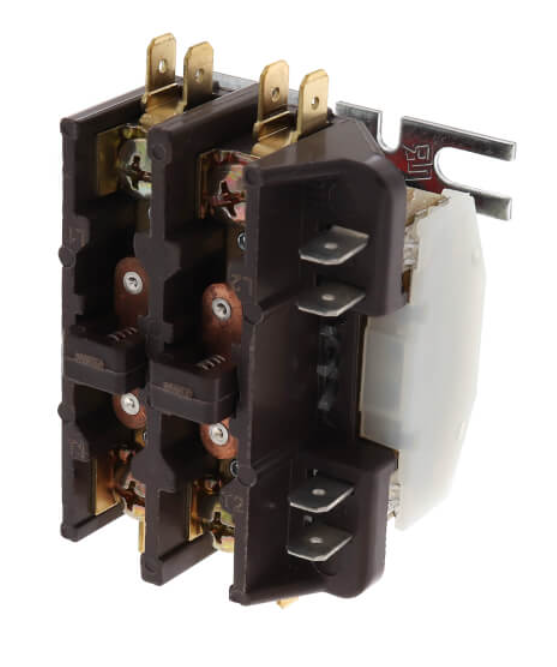

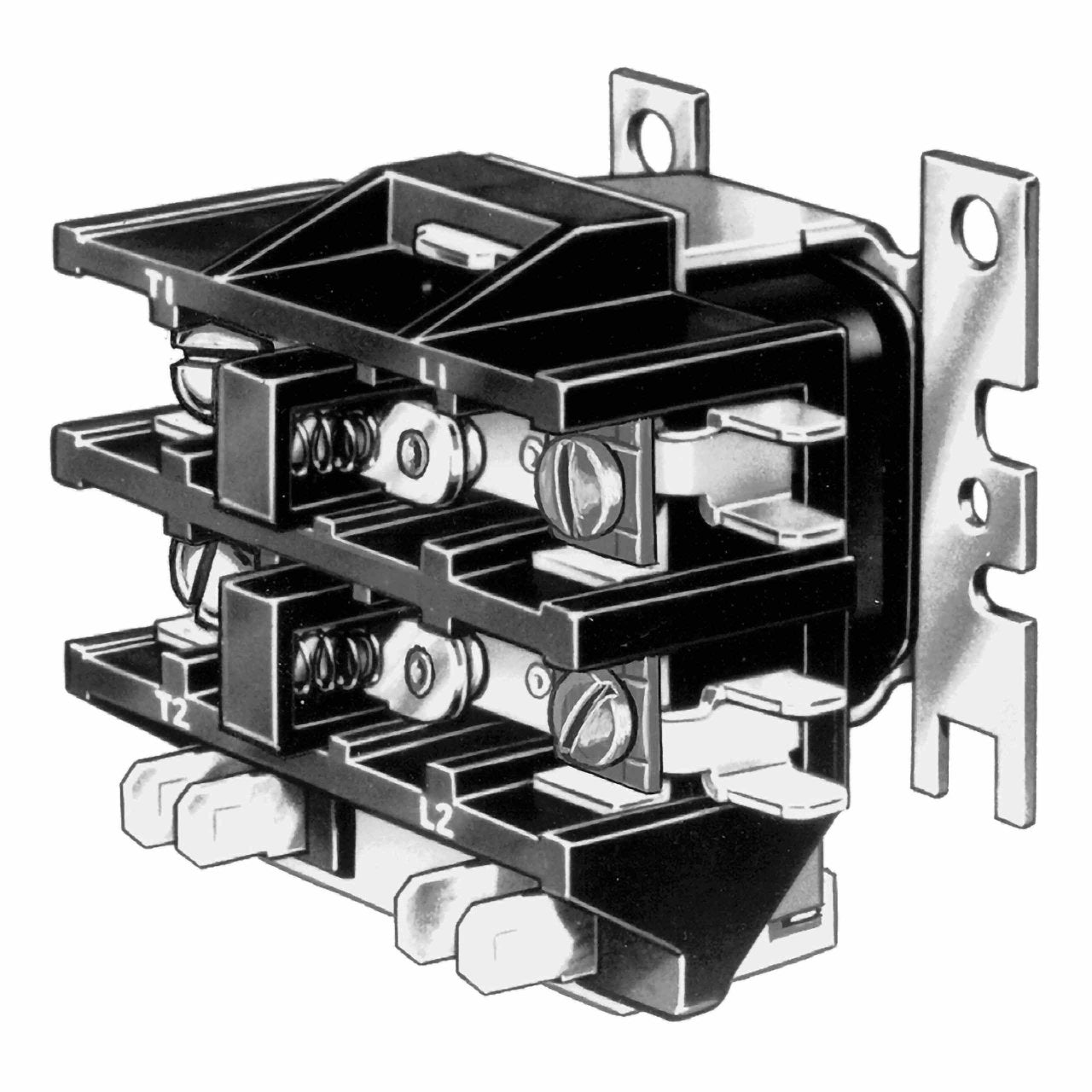

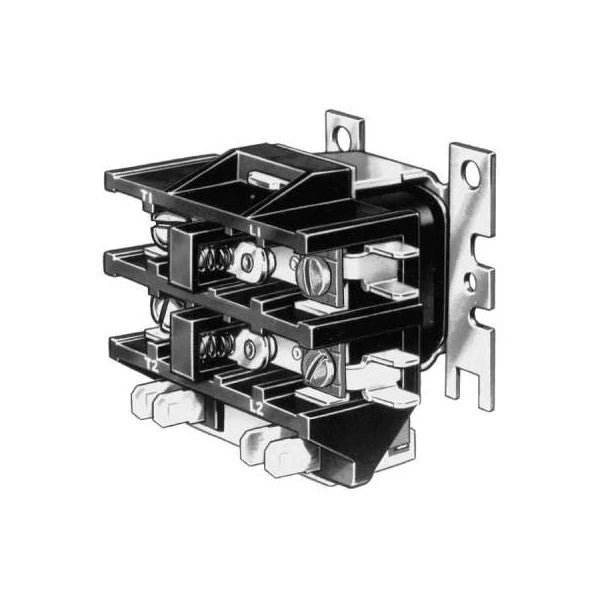

Resideo R8246A1038/U relay 2 pole electric heat DPST quick connect/clamp screw 24 voltage alternating current 30 amp

Product Description

The RESIDEO R8246A1038/U is a 2-pole electric heat relay designed for industrial automation and electrical systems. This DPST (Double Pole Single Throw) relay controls electric heating equipment, operating at 24V AC and handling up to 30 amps. It features quick connect/clamp screw terminals for simplified installation and maintenance. Its robust construction ensures durability, making it suitable for demanding heating applications in manufacturing, warehouses, and commercial facilities, while optimizing energy consumption and ensuring precise temperature control.

• 2-pole electric heat relay for reliable temperature control.
• DPST configuration with quick connect/clamp screw terminals for easy installation.
• Operates at 24V AC, handling up to 30 amps for demanding heating applications.

Product Highlights

Optimizes energy consumption and ensures precise temperature control in industrial electric heating systems with robust, durable construction.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: R8246A1038/U

Technical Specifications

• MPN: R8246A1038/U
• Brand: RESIDEO
• Number of Poles: 2
• Application: Electric Heat Contactor
• Switching Type: DPST (Double Pole Single Throw)
• Coil Connection Type: Male Double Quick Connects, Terminal Clamp Screw
• Input Voltage: 24V AC
• Current Rating: 30 Amp
• Suitable For Use With: Furnaces With a Line Voltage or Pilot Duty Limit
• Operating Temperature: -4 to 149 deg F
• Contact Rating: 48 A at 240/277 VAC 1st pole resistive only
• Coil Connection Size: No. 10, 1/4 in, 6 mm
• Power Consumption: 12 W maximum
• Secondary Supply: 40 VA, 26.5 V
• Frequency: 50/60 Hz
• Voltage/Horsepower Rating: 120 VAC, 3/4 hp
• Series: R8246 Series
