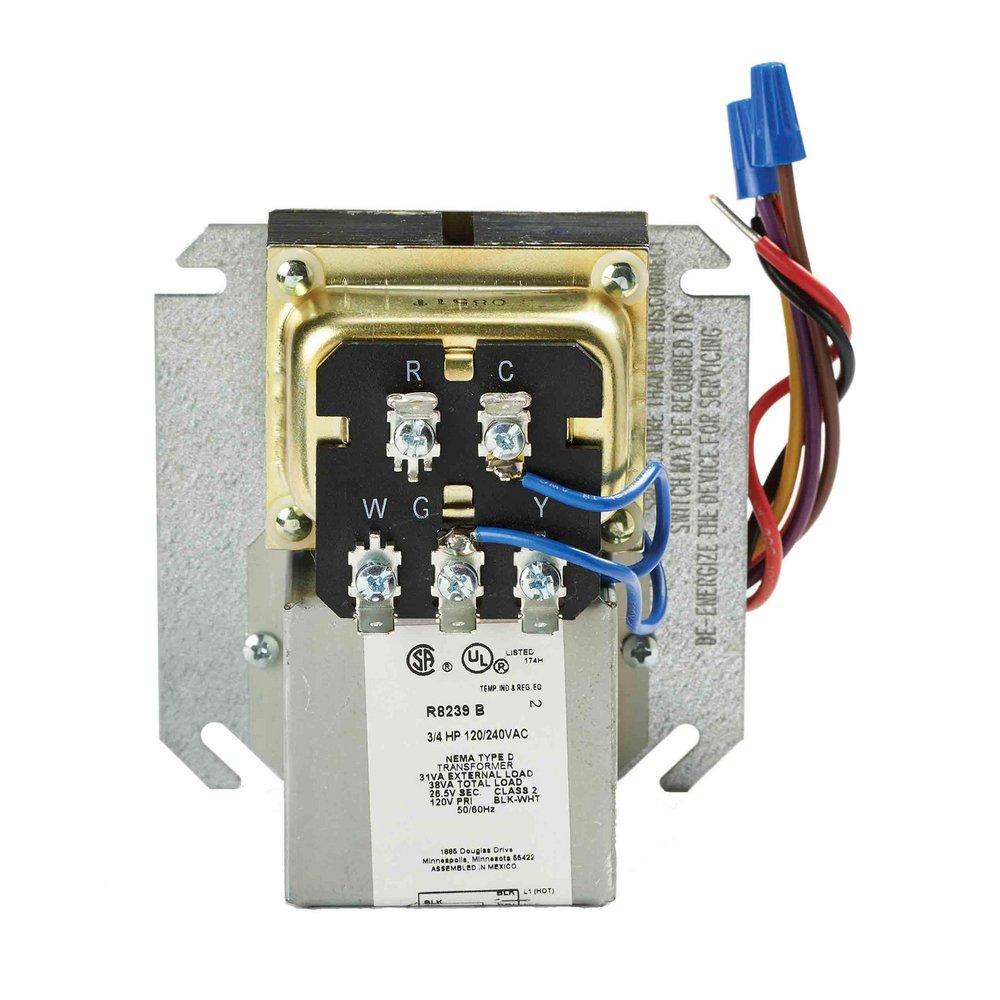

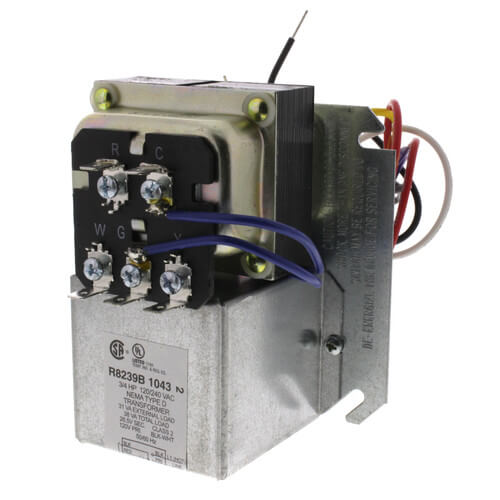

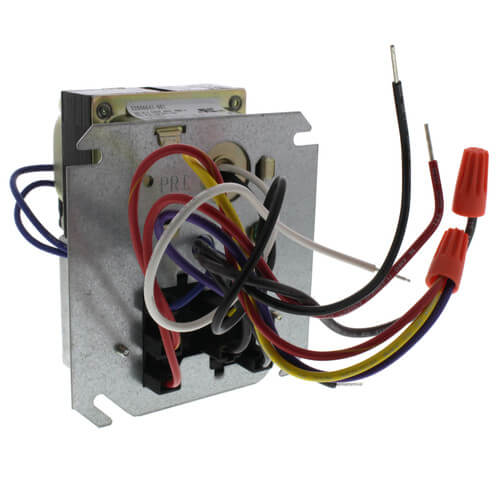

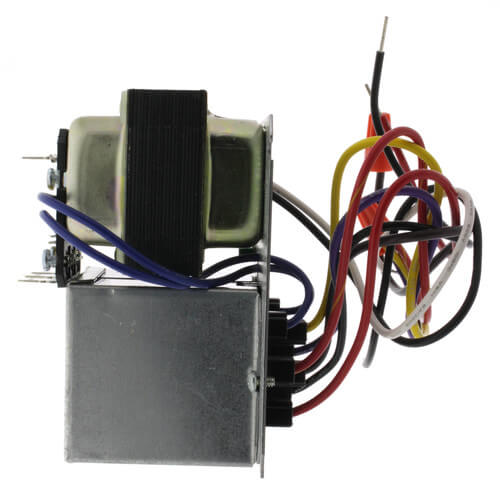

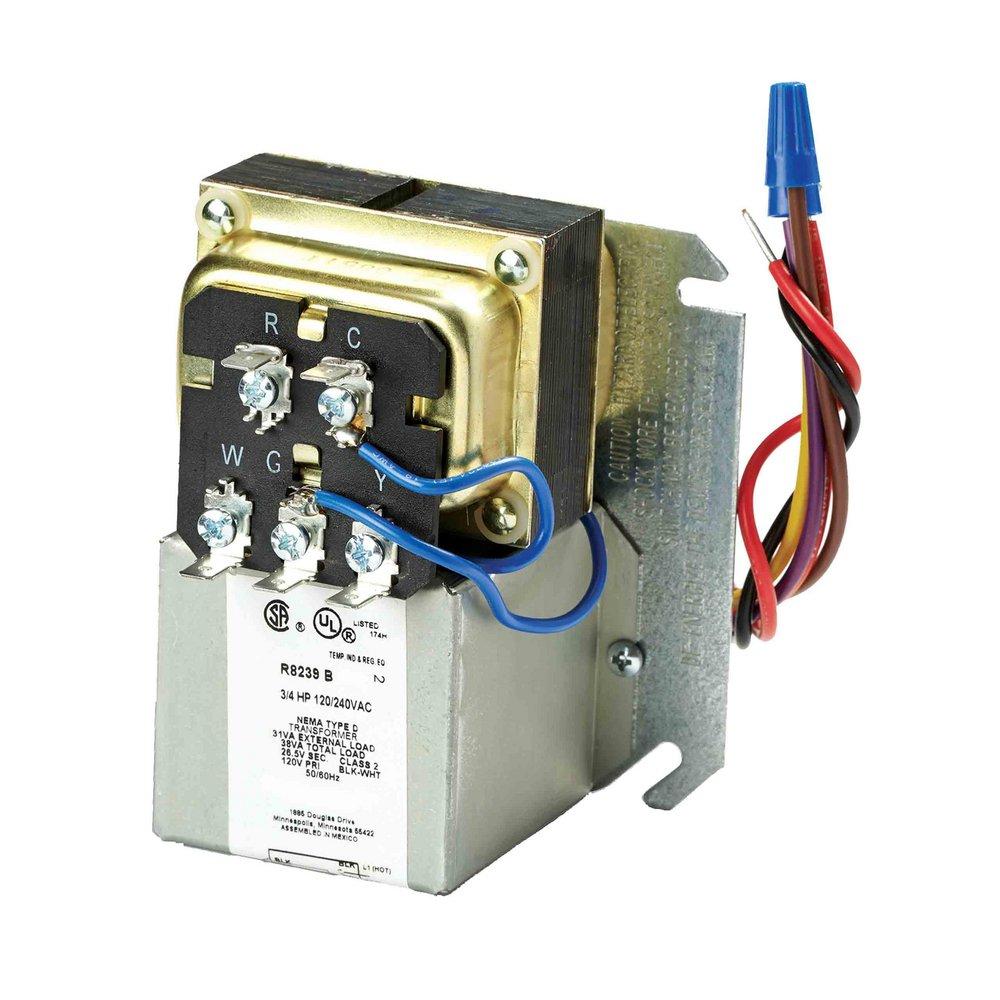

Resideo R8239B1043 R8239 40 VA Fan Center with DPDT Switching Action

Product Description

The Resideo R8239B1043 is a 40 VA fan center that provides DPDT switching action. It includes a NEMA standard transformer that ensures reliable voltage control. This unit is designed for low voltage control of line voltage fan motors and auxiliary circuits in heating and cooling systems.

• Includes NEMA standard transformer
• Mounts on standard four by four junction box
• Convenient connections for thermostat wiring

Product Highlights

The R8239B1043 is ideal for applications involving air conditioning and heating systems. It offers overload protection for transformers and can be easily installed indoors without requiring additional enclosures.

Product Information

Standard Information

• Brand: Resideo
• MPN: R8239B1043

Technical Specifications

• Type: DPDT
• Power Supply: 40 VA
• Voltage: 120V
• Application: Air Conditioning, Heating
• Weight: 2.83 lbs
• Shipping Dimensions: 6 x 4.85 x 4.8 inches
• Hertz: 50, 60
• Inrush: 20, 10 VA
