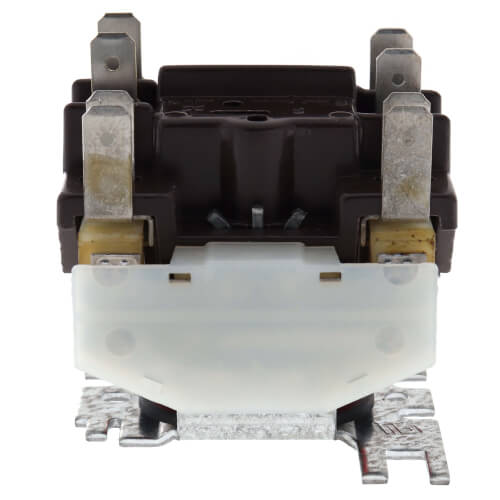

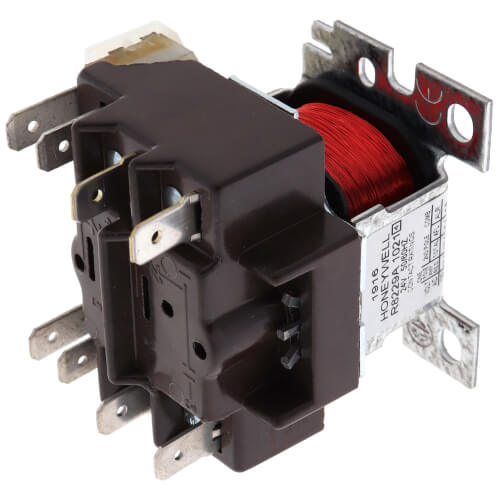

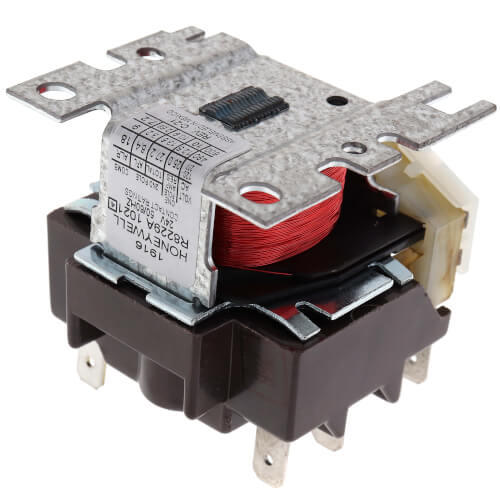

Resideo R8229A1021 Electric Heat Relay 24V DPST Extra Mounting Hardware

Product Description

The Resideo R8229A1021 Electric Heat Relay 24V DPST is designed for load control systems. It is efficient, requiring power only to shed the load. This relay is a reliable solution for various applications such as air conditioning and refrigeration.

• Designed for load control systems.
• Operates directly from a pilot duty rated relay.
• Includes extra mounting hardware.

Product Highlights

Efficient and reliable relay for load control systems with extra mounting hardware included.

Product Information

Standard Information

• Weight: 0.81 pounds
• Dimensions: 4.75 inches x 3.7 inches x 2.9 inches

Technical Specifications

• Voltage: 24V
• Type: DPST
• Width: 2-3/32 inches
• Height: 2-3/16 inches
• Wiring: #10 Combo Head Screws
• Position: Normally Closed
• Coil Ratings: 24V
• Depth: 2-1/4 inches
• Application: Air Conditioning, Refrigeration
• Operating Temperature Range: -40 to 165 degrees Fahrenheit
• Electrical Ratings (AFL): 7 A @ 240 VAC, 7 A @ 208 VAC, 2.8 A @ 600 VAC, 3.5 A @ 480 VAC, 7 A @ 120 VAC, 7 A @ 277 VAC
• Electrical Ratings (ALR): 35 A @ 240 VAC, 14 A @ 600 VAC, 35 A @ 208 VAC, 17.5 A @ 480 VAC, 35 A @ 277 VAC, 35 A @ 120 VAC
• Electrical Ratings (Resistive): 12.5 A @ 480 VAC, 10 A @ 600 VAC, 25 A @ 240 VAC, 25 A @ 208 VAC, 25 A @ 277 VAC, 25 A @ 120 VAC
• Country of Origin: Mexico
