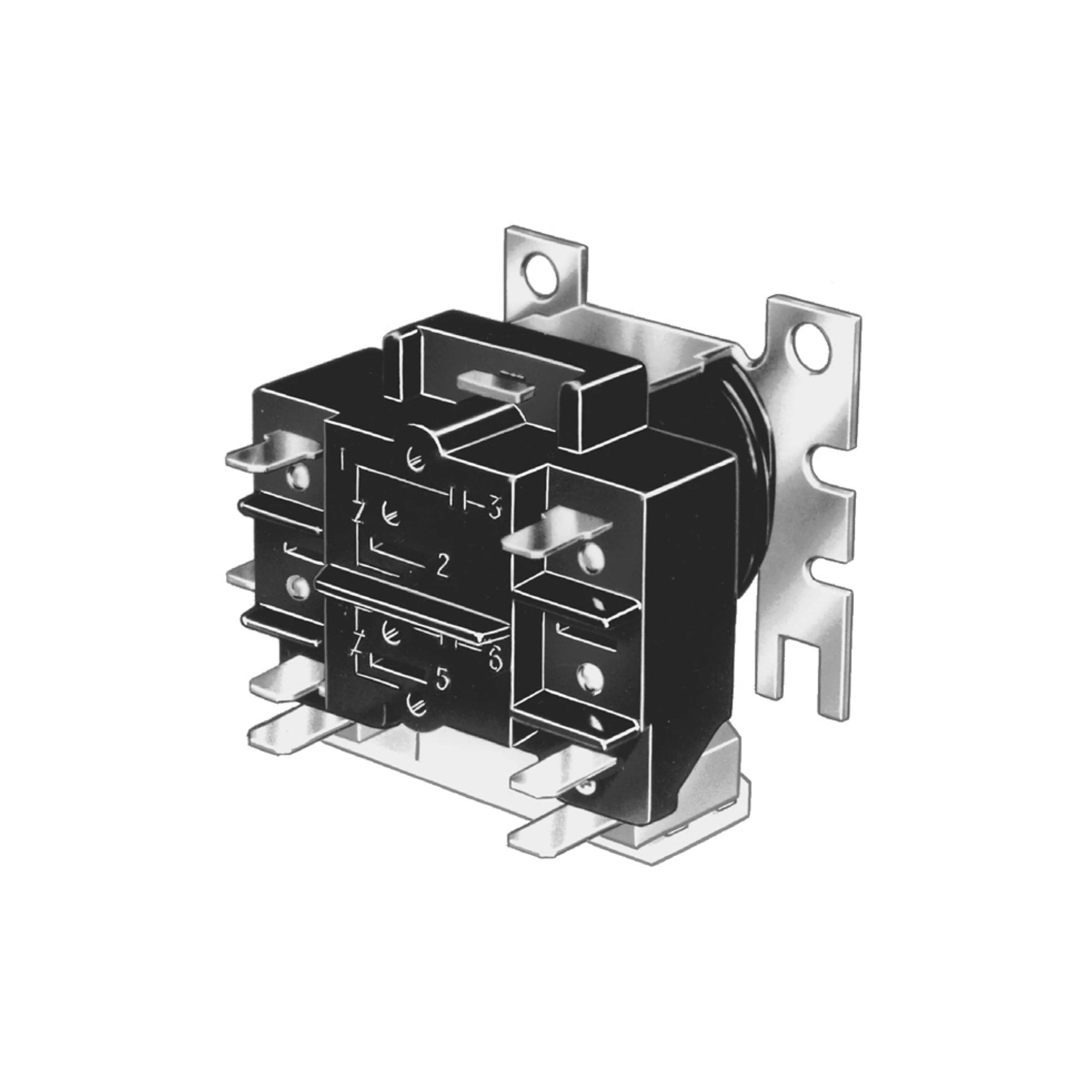

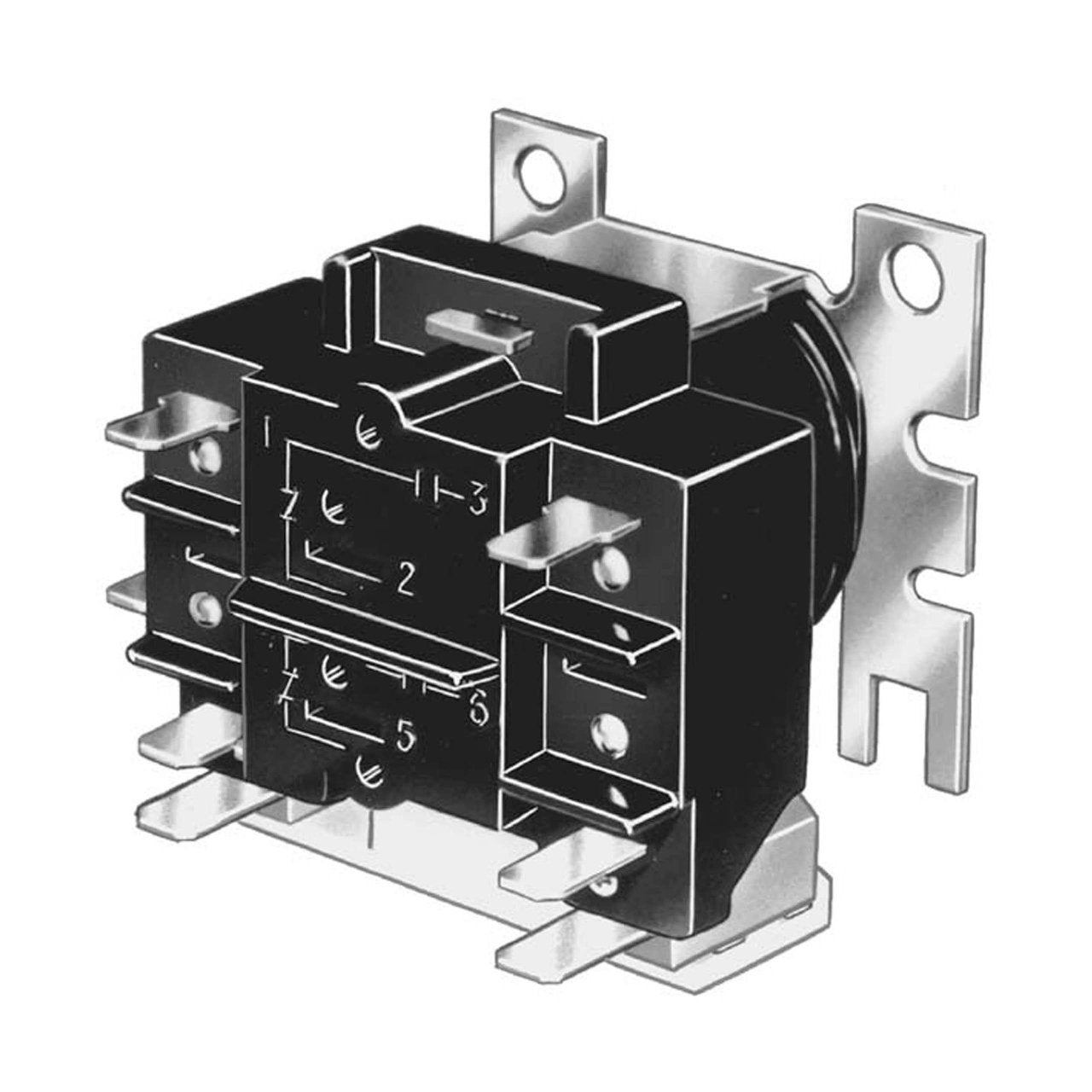

Resideo R8229A1005/U Electric Heater Relay with Dpst Switching

Product Description

The Resideo R8229A1005/U electric heater relay features DPST switching. Designed for electric heating applications, it operates at 24 VAC and 60 Hz. It can close and leave load operating in case of wiring or control problem, or relay malfunction. It consumes no power while load is powered, requiring power only to shed load.

• Operates at 24 VAC and 60 Hz
• Features DPST switching
• Operates directly from a pilot duty rated relay in the load control system

Product Highlights

Electric heater relay with DPST switching, operates at 24 VAC, and is suitable for electric heating applications.

Product Information

Standard Information

• Brand: Resideo
• Manufacturer Part Number: R8229A1005/U
• Country of Origin: MEX

Technical Specifications

• Brand: Resideo
• Control Voltage: 24 VAC
• Cycle/Hertz: 60 Hz
• Height: 2.19 in
• Length: 2.25 in
• Phase: Single
• Type: Heating
• UPC: 085267080019
• Voltage: 24 VAC
• Width: 2.09 in
• Country of Origin: MEX
• Relay Type: Heating
• Application: Electric Heater Relay
• Approvals and Standards: UL Component Recognized|CSA Recognized
• Coil Rating Voltage: 24 V ac
• Coil Connection Type: Combination Head Screws
• Number of Poles: 2 Poles
• Operating Frequency: 60 Hz
• Power Supply Frequency: 60 Hz
• Switch Action: DPST
• Contact Form: DPST
• Frequency Rating: 60 Hz
• Manufacturer: Resideo Technologies
• Manufacturer #: R8229A1005/U
• Temperature Rating: -40 to 165 deg F
• Prop 65: No
