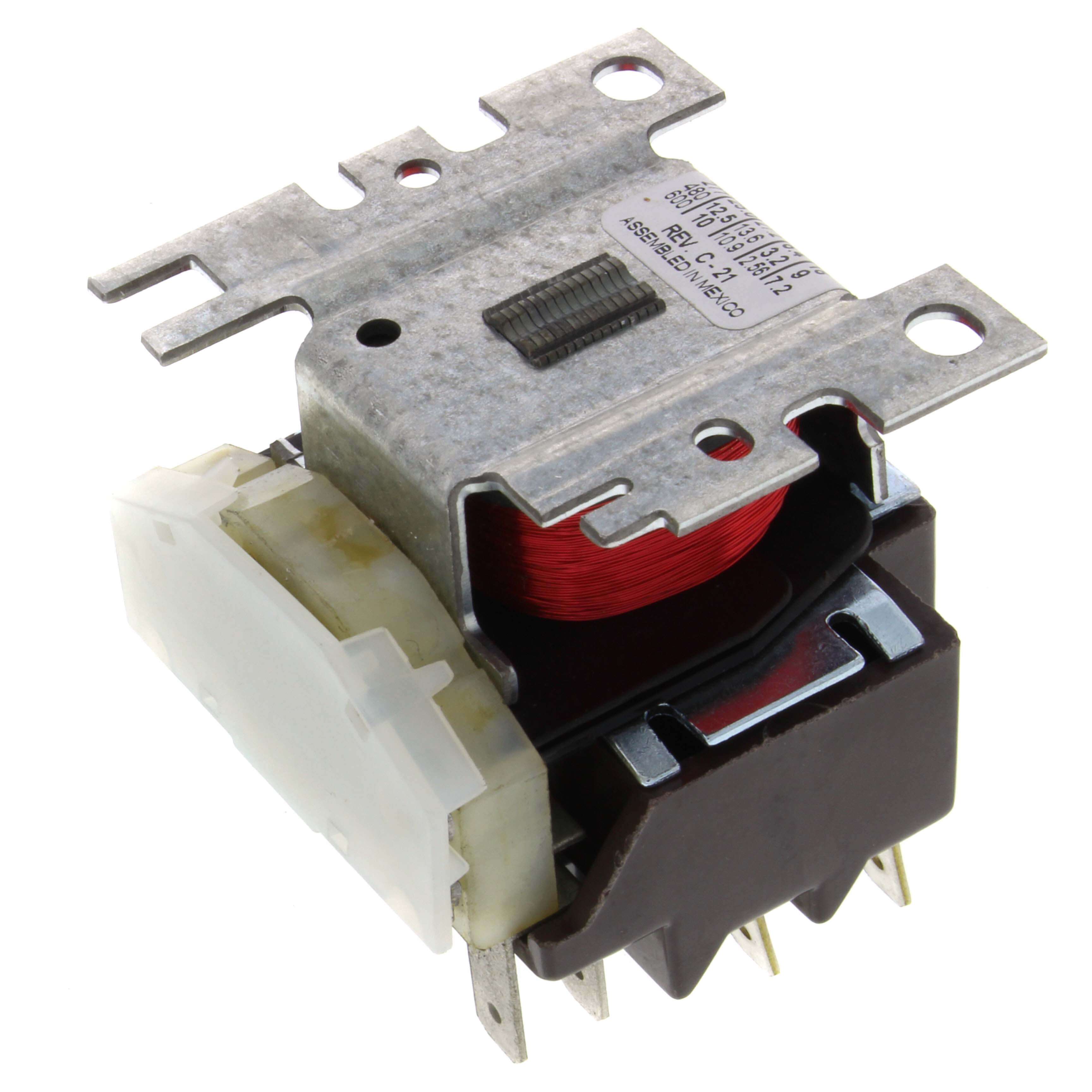

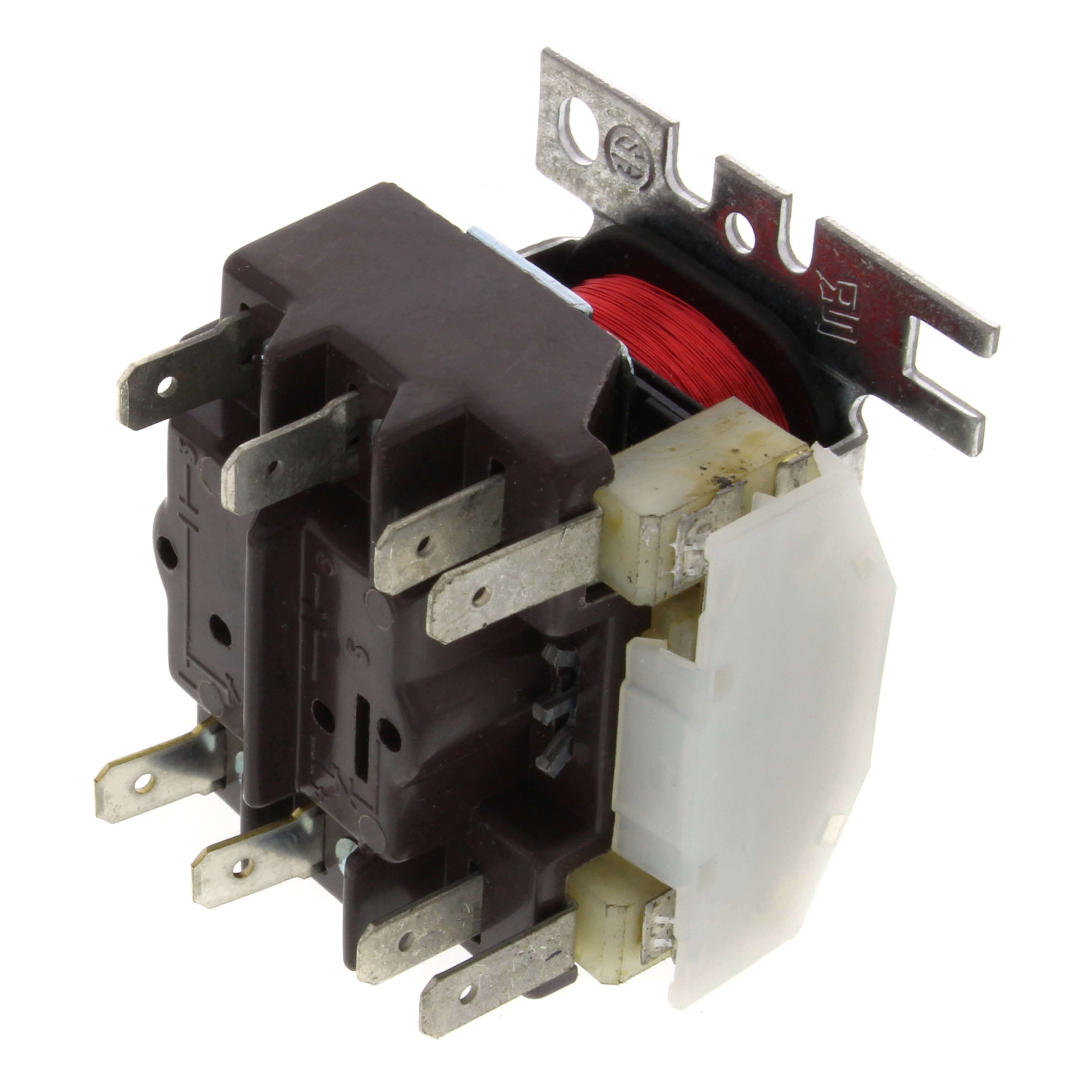

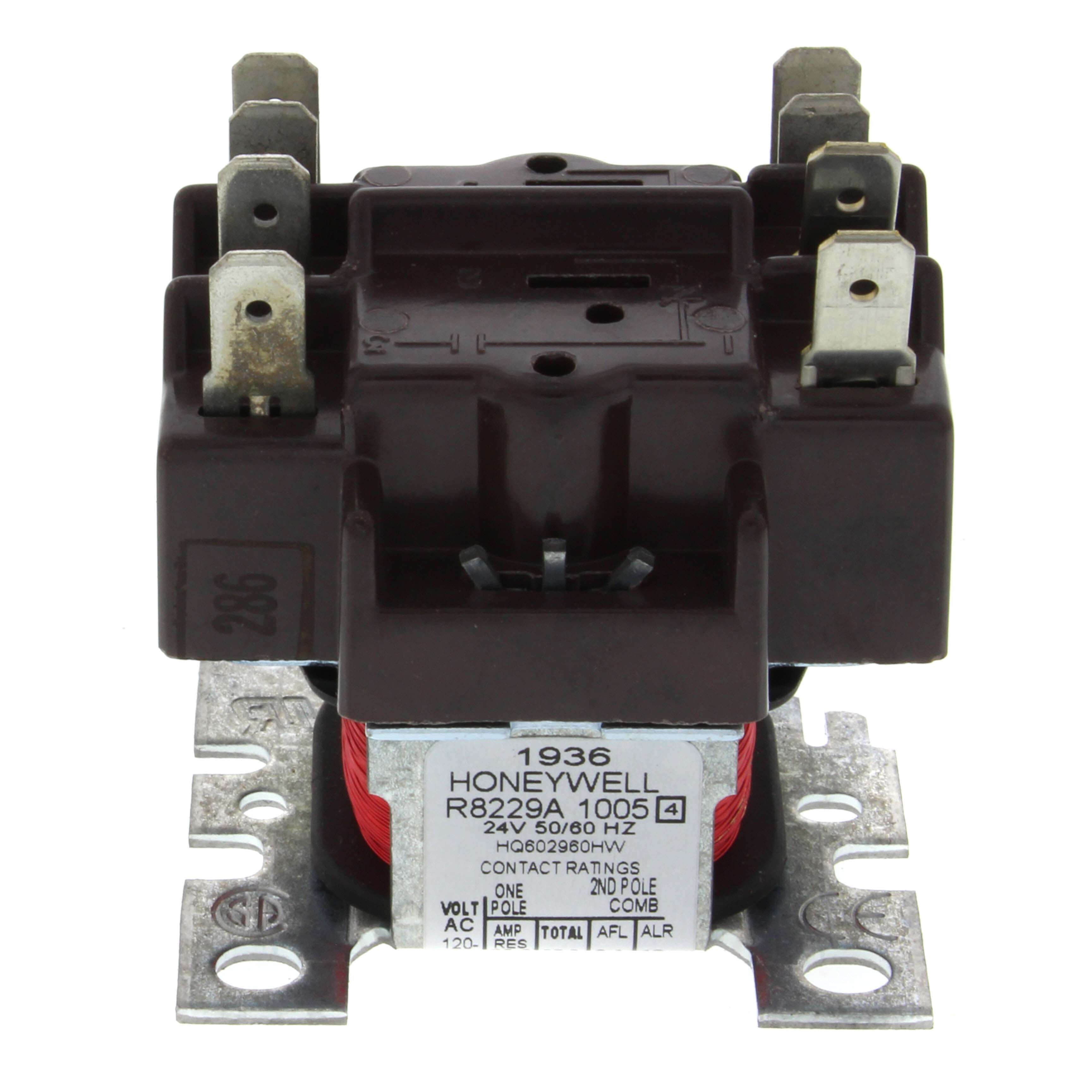

Resideo R8229A1005 Electric Heater Relay 24V DPST Switching

Product Description

The Resideo R8229A1005 is a twenty-four volt electric heater relay designed for load control systems. This relay functions with a double pole single throw (DPST) switching mechanism to manage heating systems effectively.

• Operating voltage: 24V
• Durable construction for reliable use in heating applications
• Normally closed design for enhanced safety

Product Highlights

This relay is ideal for refrigeration and air conditioning systems, providing reliable performance under various conditions.

Product Information

Standard Information

• Brand: Resideo
• Type: Electric Heater Relay

Technical Specifications

• Voltage: 24V
• Current Ratings (AFL): 7 A @ 277 VAC, 2.8 A @ 600 VAC, 7 A @ 208 VAC
• Current Ratings (ALR): 35 A @ 208 VAC, 14 A @ 600 VAC
• Operating Temperature Range: -40°F to 165°F
• Width: 2-3/32 inches
• Height: 2-3/16 inches
• Depth: 2-1/4 inches
• Wiring: #10 Combo Head Screws
