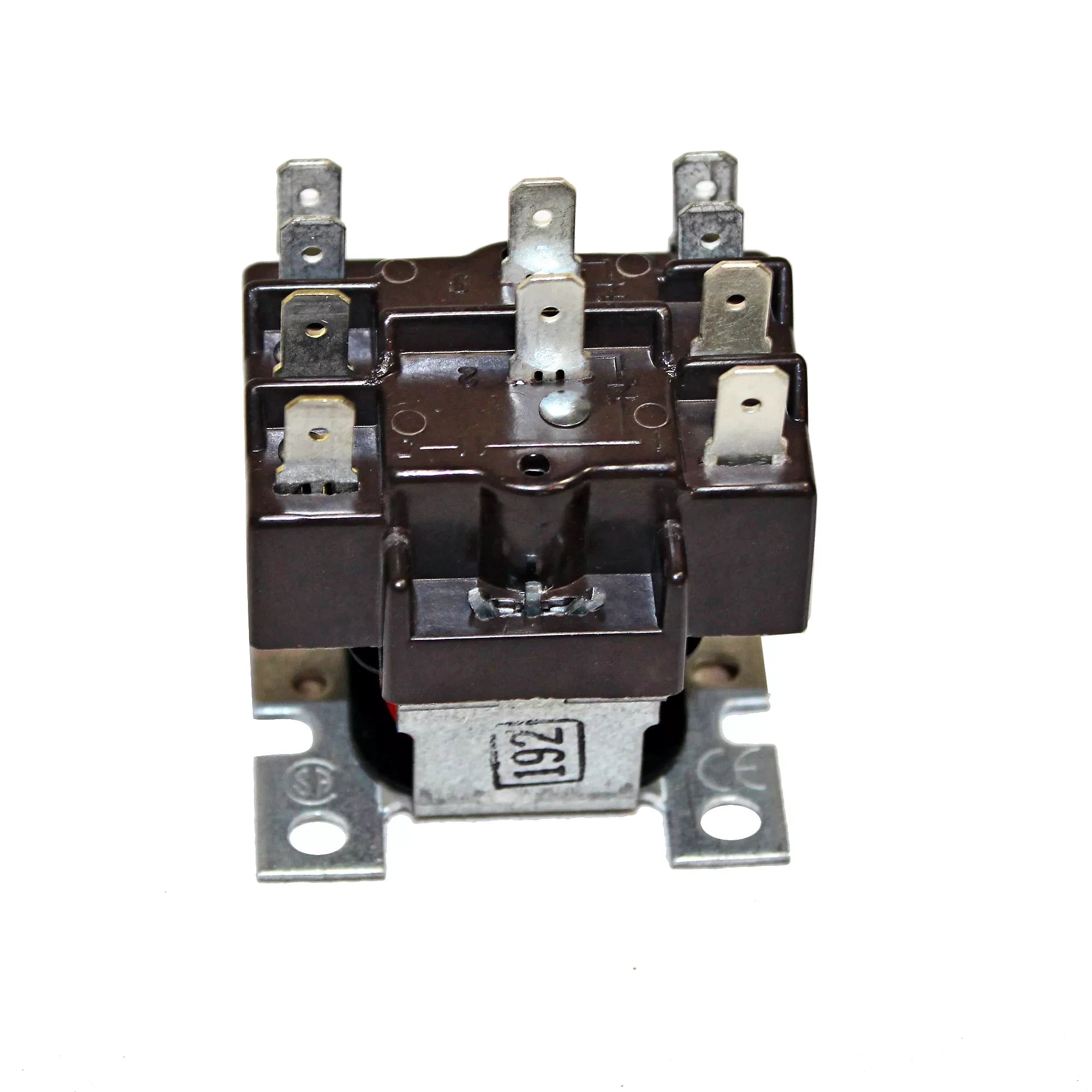

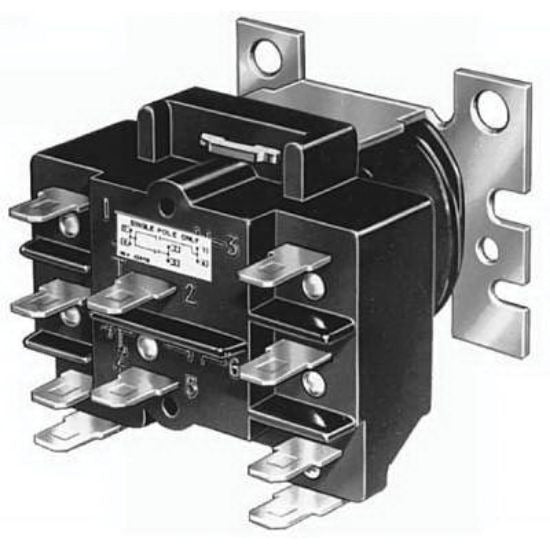

Resideo R8228B1012/U General Purpose Relay SPDT 24 VAC (2.38 x 2.16 x 1.88 in)

Brand: RESIDEO
SKU: R8228B1012/U
Availability: In Stock

Ships same day if ordered by 12 pm
$66.49
$66.49
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Resideo R8228B1012/U is a general purpose relay with a 24 VAC coil and SPDT (single-pole double-throw) contact configuration. The compact relay measures approximately 2.38 x 2.16 x 1.88 inches and is rated for 60 Hz operation and single-phase applications. It provides quick-connect terminals, molded terminal numbering with a circuit diagram, and plug compatibility with Steveco 90-340 and Mars 90340 for control and fan relay applications.

  • Coil voltage: 24 VAC, frequency: 60 Hz; contact configuration: SPDT
  • 1/4 in. quick-connect terminals and double quick-connect coil terminals; molded terminal numbers and circuit diagram on top
  • Untaped coil and laminated magnet construction; plug compatible with Steveco 90-340 and Mars 90340

Product Highlights

24 VAC SPDT control relay with quick-connect terminals, compact 2.38 x 2.16 x 1.88 in dimensions, UL and CSA approvals, and compatibility with common relay bases.

Product Information

Standard Information

  • Brand: RESIDEO
  • Manufacturer Part Number: R8228B1012/U
  • Country of Origin: Mexico
Technical Specifications
Brand
Resideo
MPN
R8228B1012/U
Product Type
General purpose relay
Coil Voltage
24 VAC
Frequency
60 Hz
Contact Configuration
SPDT (Single-Pole Double-Throw)
Connection Type
1/4 in quick connect terminals
Coil Terminals
Double quick-connect
Dimensions (L x W x H)
2.38 x 2.16 x 1.88 in
Weight
0.5 lb
Phase
Single
Country of Origin
MEX
UPC
085267079938
Certifications
UL Component Recognized; CSA Approved
Temperature Rating
-29 to 68 C
Compatibility
Plug compatible with Steveco 90-340 and Mars 90340
Application
Fan relay
