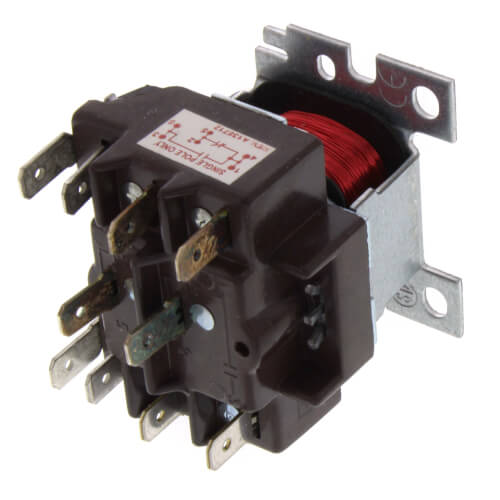

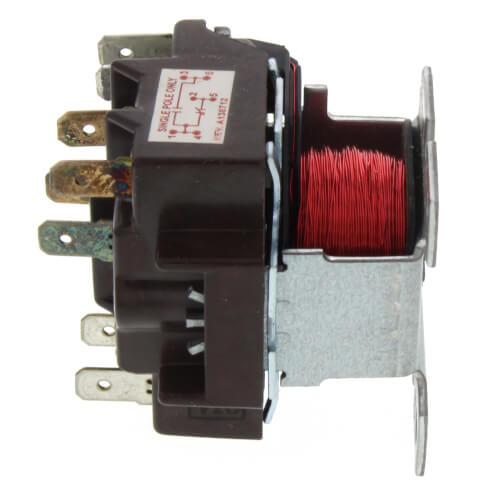

Resideo R8228B1012 24V General Purpose Relay with SPDT Switching

Product Description

The Resideo R8228B1012 is a robust 24-volt general-purpose relay designed for various applications including refrigeration, air conditioning, and vending machines. This device facilitates reliable heavy-duty switching, ensuring efficient operation and system longevity.

• Easy wiring and operation verification with clearly molded terminal numbers and circuit diagrams.
• Features untaped coil for enhanced cooling performance.
• Compatible with Steveco 90-340 and Mars 90340 for effortless replacement.

Product Highlights

This relay is built with a laminated magnet construction to improve efficiency and includes double quick-connect coil terminals for straightforward installation. Its design is optimized for easy replacement of similar competitive units.

Product Information

Standard Information

• Brand: Resideo Braukmann
• MPN: R8228B1012

Technical Specifications

• Switch Type: SPDT
• Voltage: 24V
• Frequency: 60/50 Hz
• Dimensions: Width: 2-5/32 inches, Height: 1-7/8 inches, Depth: 2-3/8 inches
• Temperature Range: -20°F to 155°F
• Electrical Ratings: Varied ratings across multiple AC voltages, ensuring compatibility and versatility for various electrical applications.
