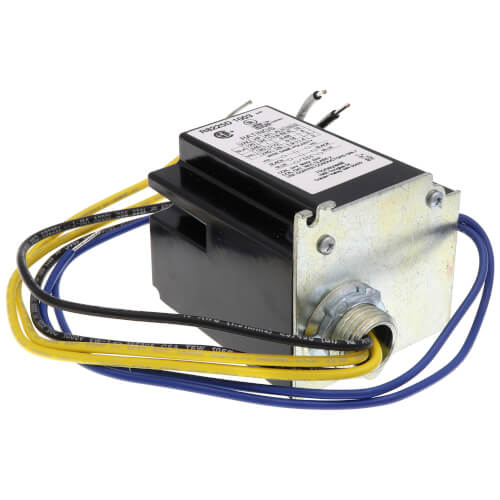

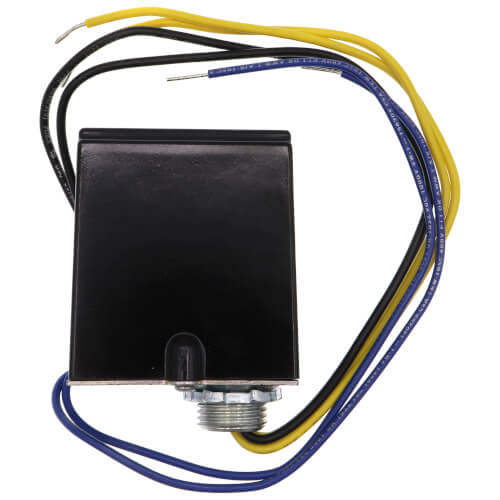

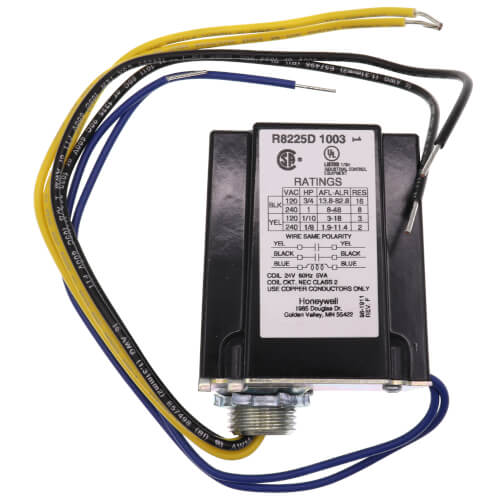

Resideo R8225D1003 24V Fan Relay DPST Normally Open Switch 1 AUX

Product Description

The Resideo R8225D1003 is a 24V fan relay equipped with a DPST normally open switch. Designed to meet the needs of trade professionals, this relay includes a 1 auxiliary contact, which enhances its versatility. Ideal for HVAC and other electrical control applications.

• 24V coil ratings
• DPST normally open switch
• 1 auxiliary contact

Product Highlights

This relay offers reliable performance with coil ratings of 24V. It features a DPST normally open switch and includes an auxiliary contact for expanded functionality.

Product Information

Standard Information

• Coil Ratings: 24V
• Switch Type: DPST Normally Open
• Auxiliary Contact: 1 AUX

Technical Specifications

• Hertz: 60 Hz
• Dimensions: 5.2 inches length, 3.6 inches width, 3.05 inches height
• Weight: 0.74 lbs
• Max Ambient Temp: 115inchu00b0F
• Electrical Ratings (AFL): 8 A @ 240 VAC (N.O)
• Electrical Ratings (ALR): 18 A @ 120 VAC (Aux), 48 A @ 240 VAC (N.O), 12 A @ 240 VAC (Aux), 84 A @ 120 VAC (N.O)
• Electrical Ratings (Resistive): 2 A @ 240 VAC (Aux), 8 A @ 240 VAC (N.O) 3 A @ 120 VAC (Aux), 16 A @ 120 VAC (N.O)
• Wiring: Leadwires
• Position: Normally Open
