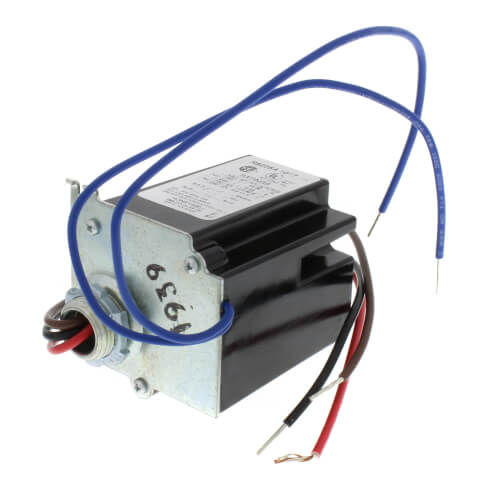

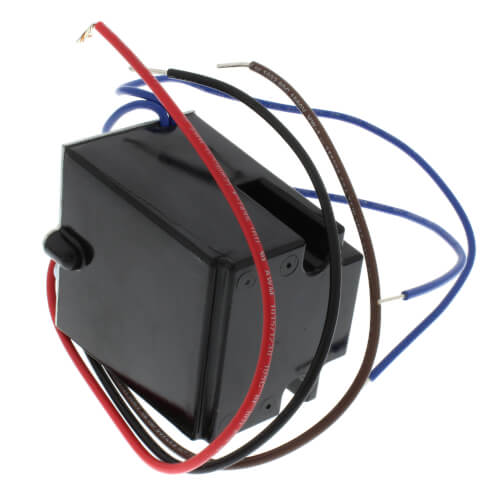

Resideo R8225A1017 24V Fan Relay SPDT Switch 143978

Product Description

The Resideo R8225A1017 is a 24V fan relay designed for SPDT (Single Pole Double Throw) switching, suitable for refrigeration and air conditioning equipment, appliances, and similar applications. The relay is engineered to provide both general purpose and heavy duty switching.

• Efficient operation with an untaped coil and laminated magnet construction.

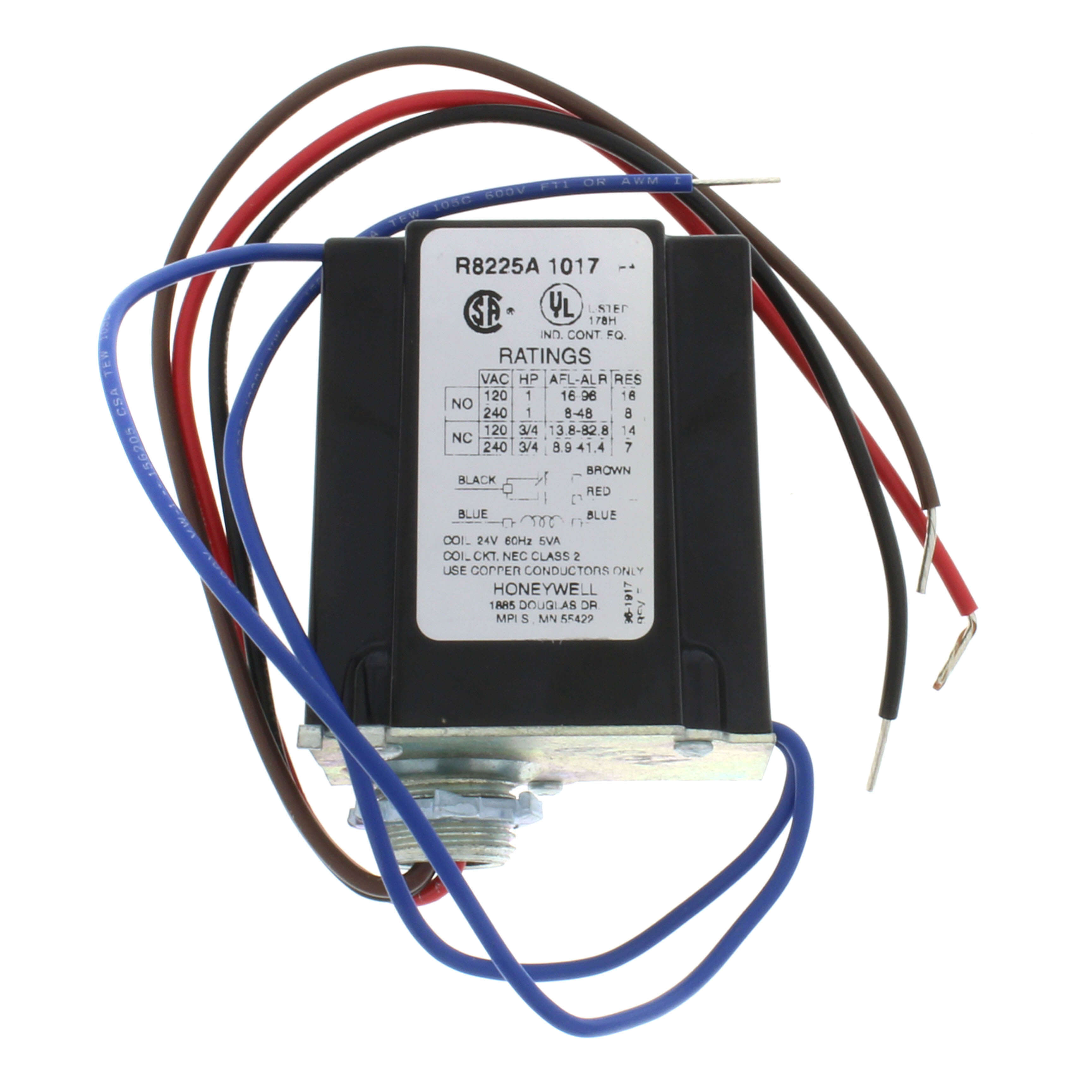

• Easily identifiable wiring and system operation with molded terminal numbers and circuit diagrams.
• Compatible with Steveco 90-340 and Mars 90340 for easy replacement.

Product Highlights

This 24-volt relay is built to optimize electrical efficiency with its cool operating untaped coil and high-efficiency laminated magnet. It's designed with durable materials for reliable long-term use.

Technical Specifications

• Brand: Resideo
• MPN: R8225A1017
• Switching Capacity: SPDT
• Electrical Connections: Lead wires
• Full Load: 8.0A at 240VAC, 14.0A at 120VAC
• Locked Rotor: 48.0A at 240VAC, 84.0A at 120VAC
• Resistive: 8.0A at 240VAC, 16.0A at 120VAC
• Frequency: 60Hz
• Dimensions: 2-11/16 inches high x 2-1/2 inches wide x 3-7/16 inches deep
• Temperature Rating: 115°F
