Resideo R8222V1003 24V General Purpose Relay DPDT Switching R8222B1067

Product Description

The Resideo R8222V1003 is a 24V general purpose relay that offers DPDT switching for various applications. It is designed specifically for refrigeration and air conditioning equipment, as well as appliances and vending machines.

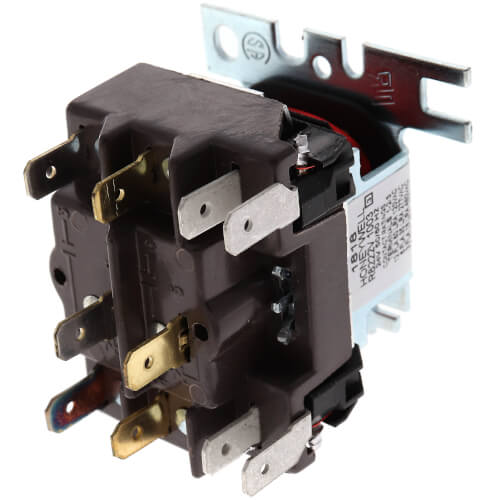

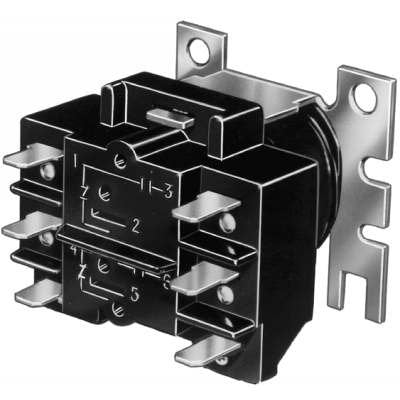

• Easy wiring identification through molded terminal numbers and circuit diagrams on the relay top.

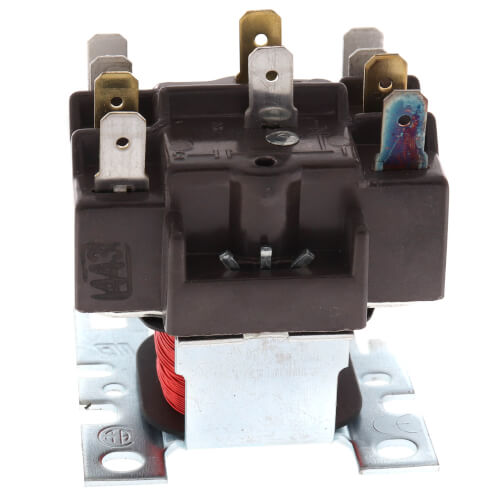

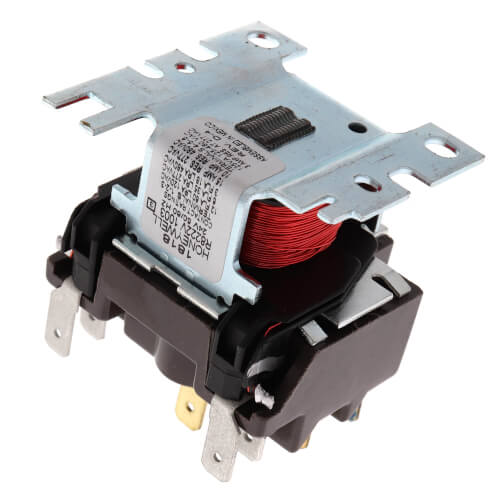

• Untaped coil for better cooling and efficiency.
• Compatible with Steveco 90-340 and Mars 90340 for hassle-free replacement.

Product Highlights

This relay is engineered for durability and efficient operation, with a laminated magnet and a design that facilitates simple replacement of competitive units.

Product Information

Technical Specifications

• Switch Type: DPDT
• Voltage: 24V
• Full Load Electrical Ratings: 3 A at 480 Vac, 6 A at 208/240/277 Vac, 12 A at 120 Vac
• Locked Rotor Ratings: 18 A at 480 Vac, 35 A at 208/240/277 Vac, 60 A at 120 Vac
• Resistive Ratings: 10 A at 480 Vac, 20.8 A at 120/208/240/277 Vac
• Pilot Duty Ratings: Min 3 VA, Max 125 VA across various voltages
• Dimensions: 1-7/8 inches high x 2-5/32 inches wide x 2-3/8 inches deep
• Temperature Range: -20°F to +155°F
