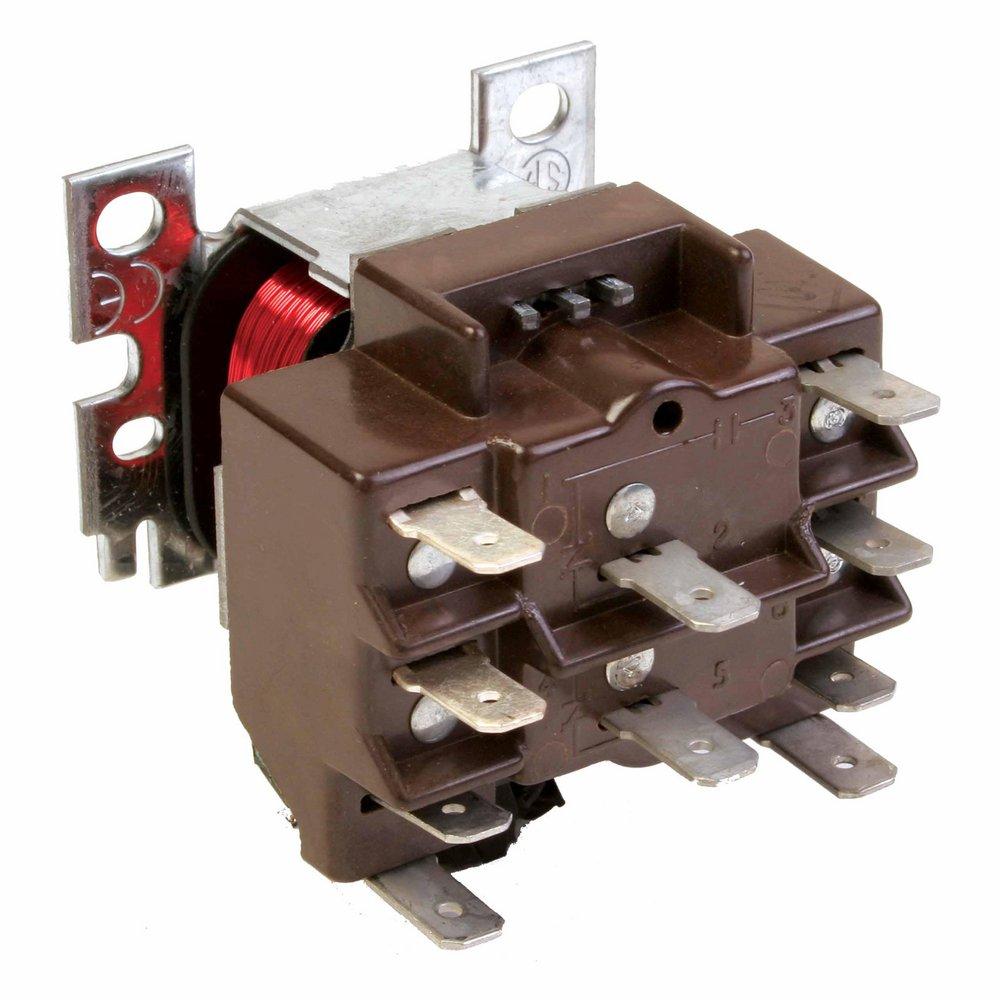

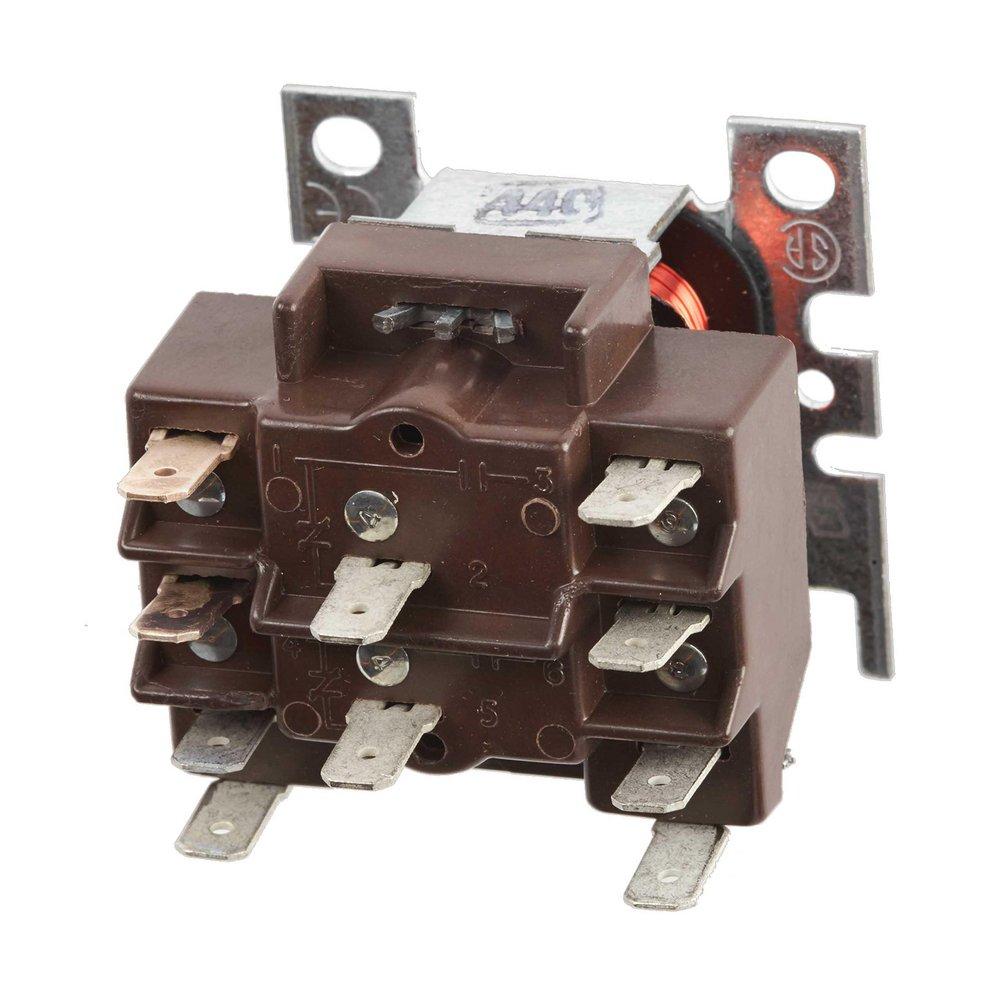

Resideo R8222U1079 24V Magnet General Purpose Relay with DPST

Product Description

The Resideo R8222U1079 is a 24V magnet general purpose relay with DPST functionality. It is designed for general purpose switching in refrigeration and air conditioning systems, appliances, and vending machines.

• 24V Voltage Rating
• DPST Normally Open Switching

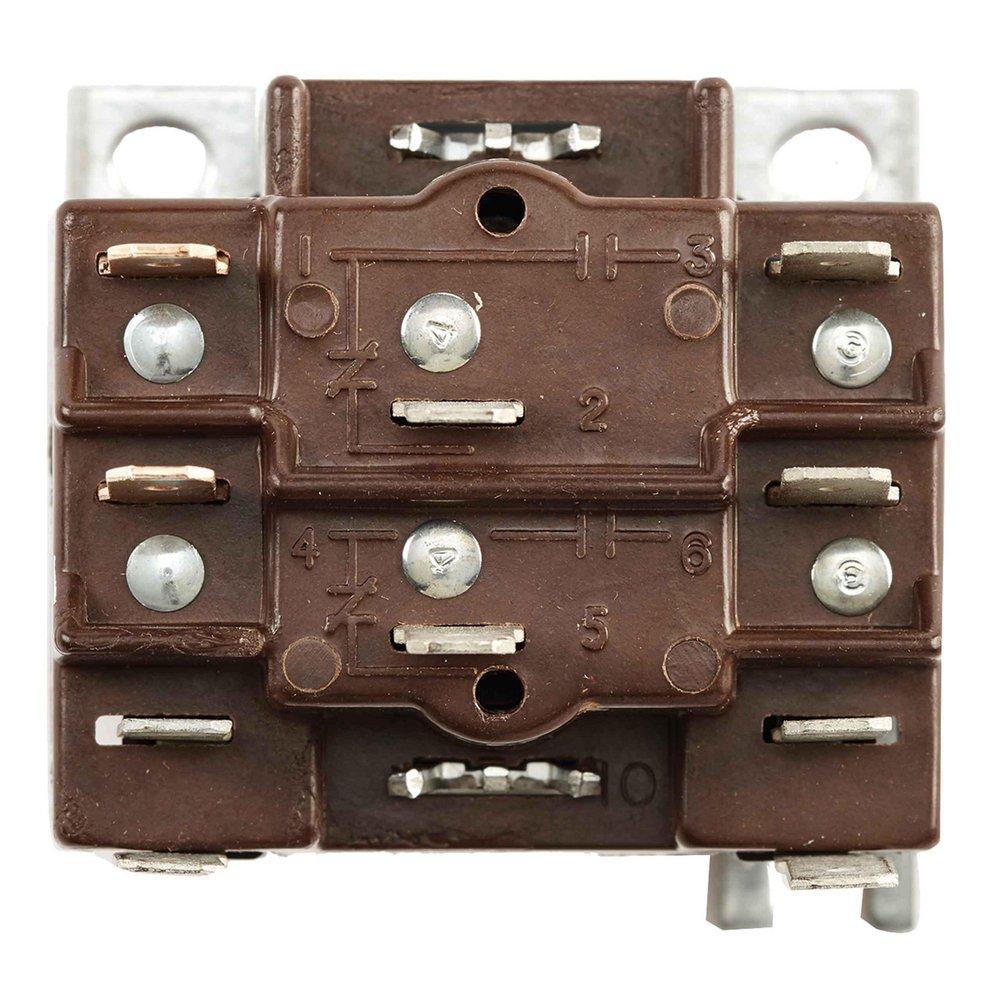

• Easy wiring with molded terminal numbers

Product Highlights

The relay features a laminated magnet construction for better efficiency and an untaped coil to ensure cooler operation.

Product Information

Standard Information

• Manufacturer: Resideo
• Part Number: R8222U1079

Technical Specifications

• Voltage: 24V
• Coil Ratings: 24V
• Switching Type: DPST N.O.
• Electrical Connections: Single 1/4 inch quick-connect on coil terminals
• Full Load Ratings: 12 A @ 120 Vac, 6 A @ 208 Vac, 240 Vac, 277 Vac, 3 A @ 480 Vac
• Locked Rotor Ratings: 60 A @ 120 Vac
• Temperature Rating: -20 F to +155 F
• Dimensions: 1-55/64 inches high x 2-7/64 inches wide x 2-3/8 inches deep
• Frequency: 50 Hz, 60 Hz
