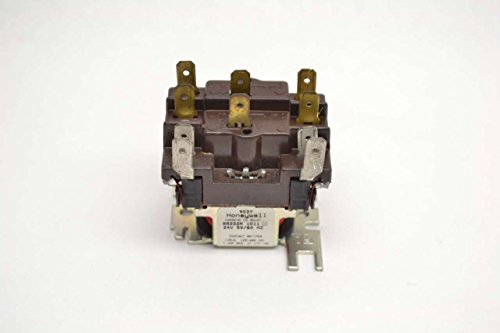

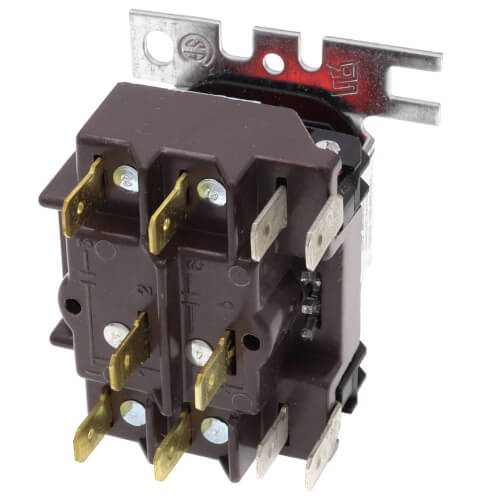

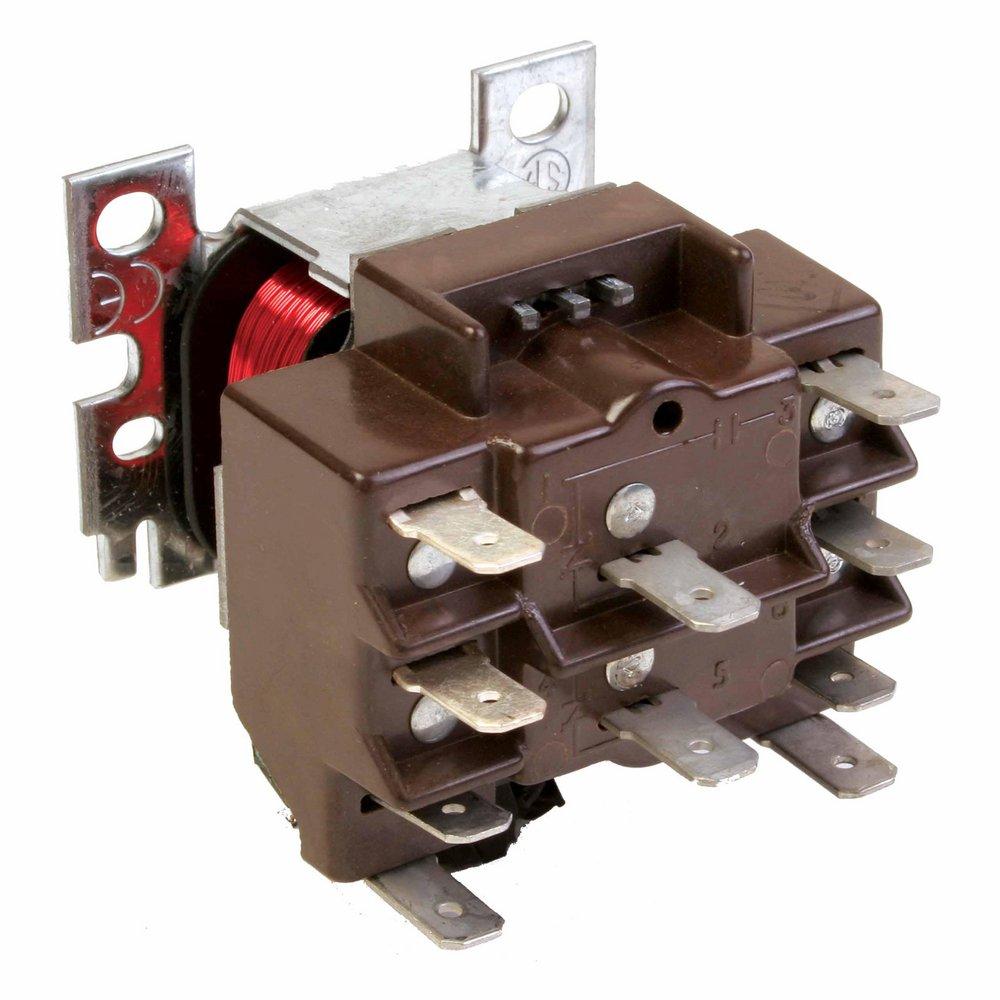

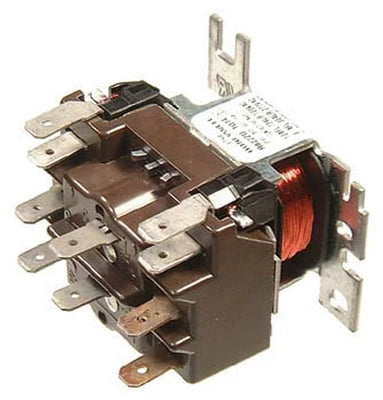

Resideo R8222N1011 24V Double Pull Double Throw Pilot Duty Relay

Brand: RESIDEO
SKU: R8222N1011
Availability: In Stock

Ships same day if ordered by 12 pm

Same-day delivery
Greater Chicago, IL area
If ordered prior to 4pm CT (Mon-Fri)
$44.02
$44.02
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Explore the Resideo R8222N1011, a 24V DPDT pilot duty relay designed for efficient performance in various applications. This product is widely recognized for its robust design, making it a reliable choice for refrigeration, air conditioning equipment, and more.

  • Supports both general purpose and pilot duty operations.
  • Features untaped coil for cooler operation and laminated magnet construction enhancing efficiency.
  • Clearly molded terminal numbers and circuit diagram atop the relay simplify wiring and system checks.

Product Highlights

This relay is engineered to facilitate easy wiring checks and replacement, compatible with competitive relay models like Steveco 90-340 and Mars 90340. Its double quick-connect coil terminals ensure a hassle-free setup.

Product Information

Technical Specifications
Electrical Ratings
3 A @ 480 Vac, 6 A @ 208 Vac, 12 A @ 120 Vac
Temperature Range
-20 F to +155 F
Dimensions
1 7/8 in. high x 2 5/32 in. wide x 2 3/8 in. deep
