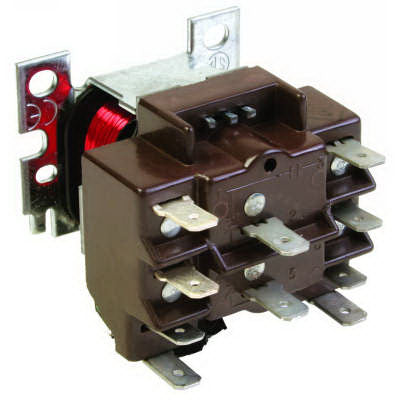

RESIDEO R8222D1014/U General Purpose Relay DPDT Contact 24 VAC

Product Description

The Resideo R8222D1014/U is a general-purpose relay with DPDT contact form and a coil voltage of 24 VAC. This relay is suitable for refrigeration, air conditioning equipment, and automation systems. It features a compact design and quick-connect terminals for efficient installation.

• Easy identification with molded terminal numbers and circuit diagram
• Durable construction for long-lasting performance
• Compatible with multiple control systems

Product Highlights

Resideo R8222D1014/U provides reliable switching for various applications.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: R8222D1014/U

Technical Specifications

• Application: Refrigeration and Air Conditioning Equipment, Appliances, Vending Machines
• Coil Voltage: 24 VAC
• Contact Form: DPDT
• Dimensions: 2-5/32 inches W x 2-3/8 inches D x 1-7/8 inches H
• Frequency Rating: 50/60 Hz
• Number of Poles: 2
• Temperature Rating: -20 to 150 degrees F
• Terminal Type: Quick-Connect
