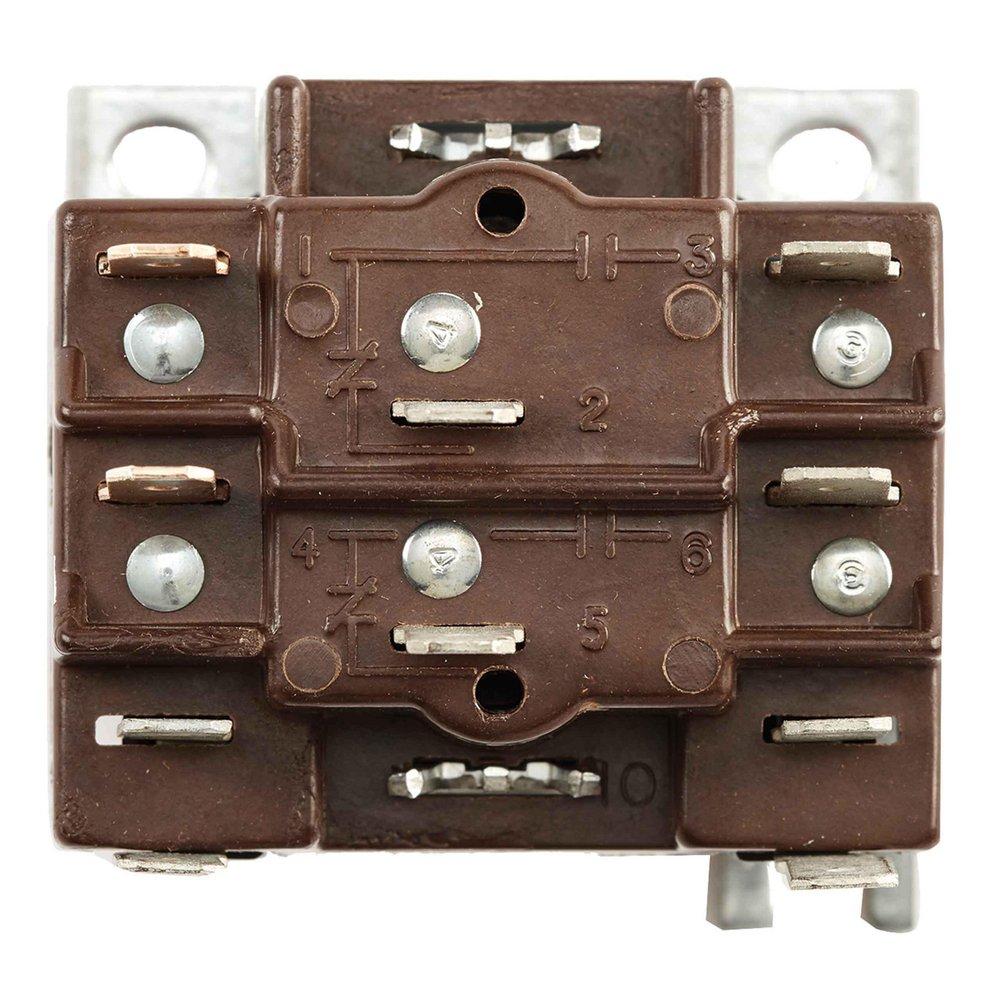

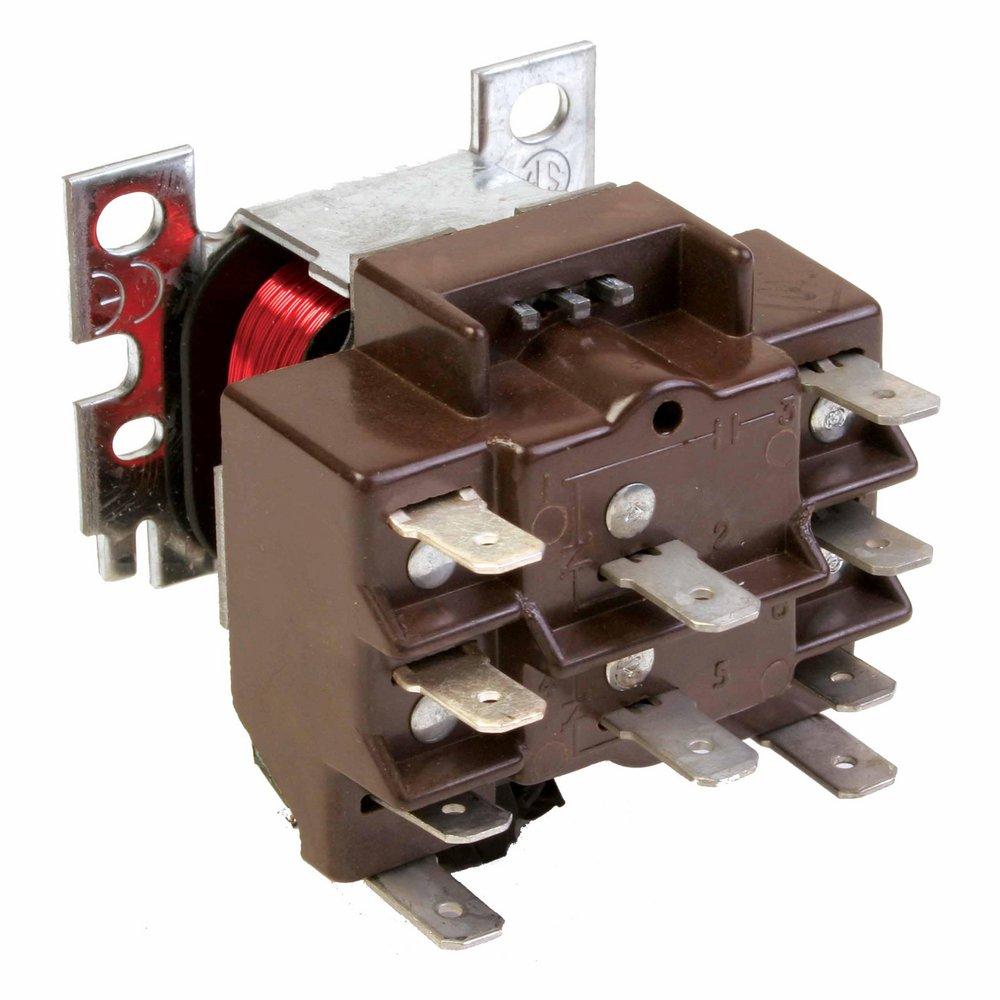

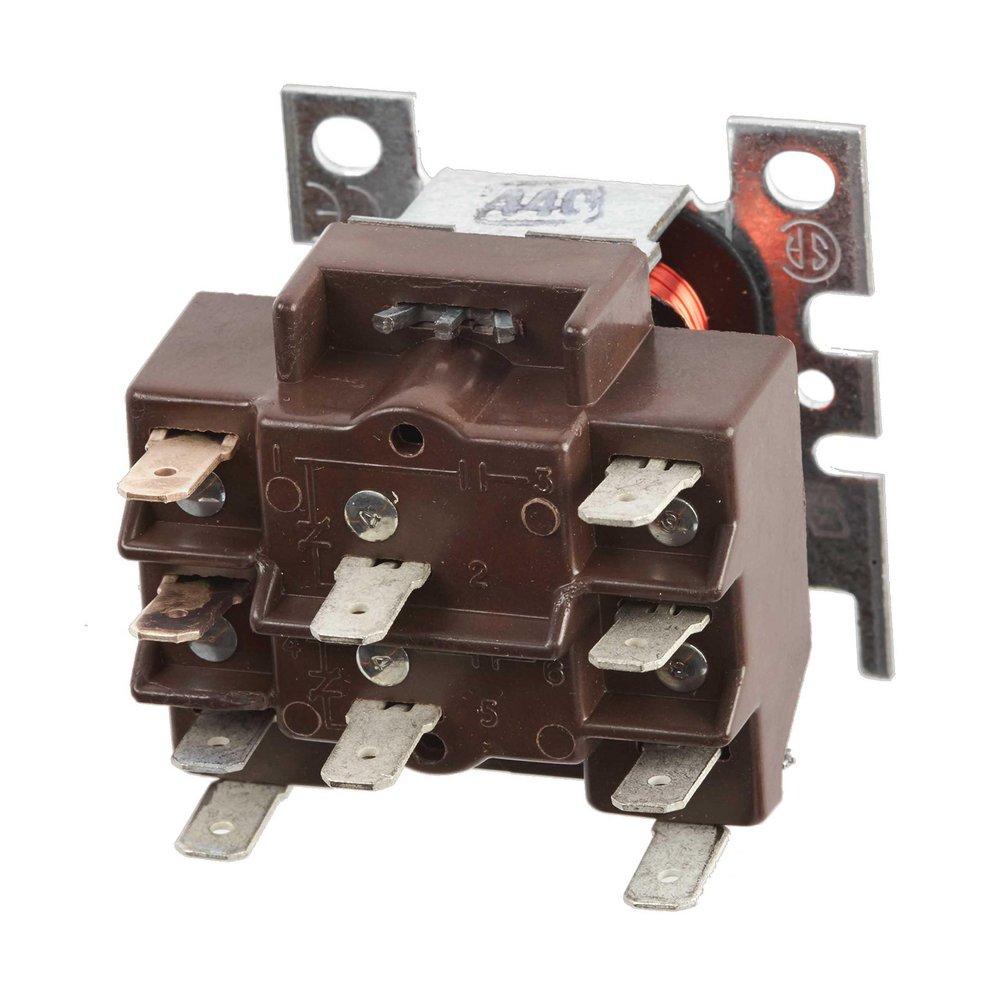

Resideo R8222D1014 24V DPDT Switching Relay

Product Description

The Resideo R8222D1014 is a 24V DPDT switching relay designed for versatile switching applications. Its double-pole, double-throw contacts make it adaptable to various control systems.

• 24V DC operation provides reliable performance
• Compact design for easy installation and integration
• UL and CE certified for safety and compliance

Product Highlights

This relay ensures versatile switching capabilities in industrial environments. Its durable construction supports a variety of control systems, making it an essential component in HVAC, security, and automation systems.

Product Information

Standard Information

• Brand: Resideo
• MPN: R8222D1014

Technical Specifications

• Voltage: 24V
• Switching: DPDT
• Electrical Ratings Contacts (Full Load): 3A at 480V, 6A at 208V, 240V, 277V, 12A at 120V
• Electrical Ratings Contacts (Locked Rotor): 18A at 480V, 35A at 208V, 240V, 277V, 60A at 120V
• Pilot Duty Rating: 3-25 VA at 480V, 3-25 VA at 120V, 3-25 VA at 24V
• Dimensions: 1-7/8 in high x 2-5/32 in wide x 2-3/8 in deep
• Temperature Ratings: -20 F to 155 F
