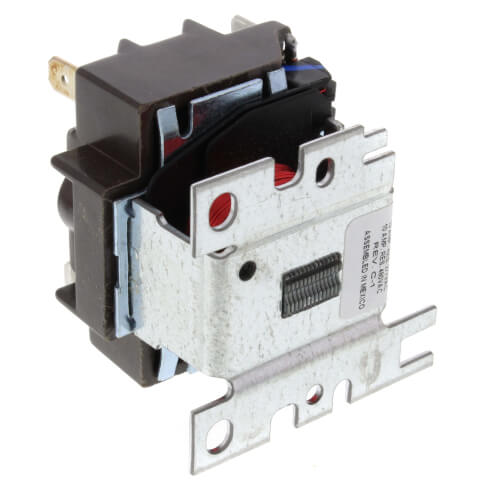

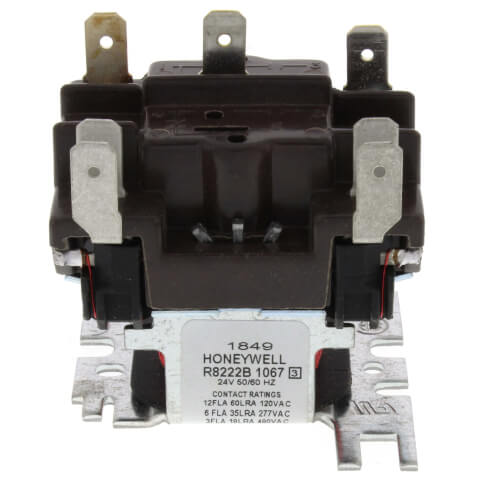

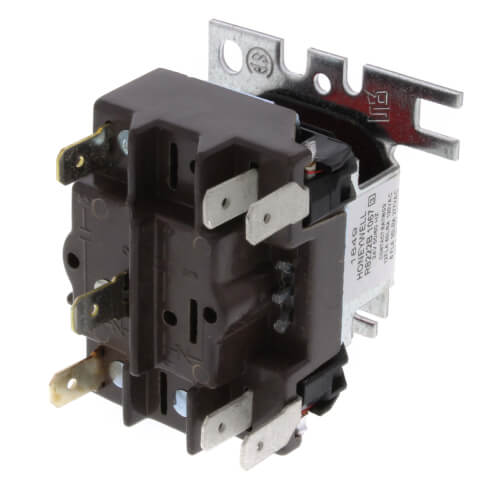

Resideo R8222B1067 24V General Purpose Relay with SPDT Switching

Product Description

The Resideo R8222B1067 is a 24V general purpose relay designed for various applications including refrigeration and air conditioning systems. This relay provides reliable switching capabilities, making it suitable for appliances and vending machines.

• Voltage: 24V with SPDT switching
• Quick-connect electrical connections for easy installation
• Laminated magnet construction enhances efficiency

Product Highlights

This relay comes with molded terminal numbers for easy wiring. Its untaped coil ensures cooler operation, making it ideal for high-load applications.

Product Information

Standard Information

• Brand: Resideo
• MPN: R8222B1067

Technical Specifications

• Coil Ratings Voltage: 24V
• Electrical Connections: 1/4 inch quick-connect terminals
• Electrical Ratings Contacts (Full Load): 3 A @ 480 Vac; 6 A @ 208 Vac and 240 Vac; 12 A @ 120 Vac
• Electrical Ratings Contacts (Locked Rotor): 18 A @ 480 Vac; 35 A @ 208 Vac and 240 Vac; 60 A @ 120 Vac
• Electrical Ratings Contacts (Resistive): 10 A @ 480 Vac; 20.8 A @ 120 Vac, 208 Vac, 240 Vac, 277 Vac
• Pilot Duty Ratings: Minimum: 3 VA @ 24 Vac; Maximum: 25 VA @ 24 Vac
• Frequency: 50 Hz, 60 Hz
• Dimensions: 1.875 inches high x 2.1875 inches wide x 2.375 inches deep
• Temperature Ratings: -20 F to +155 F
