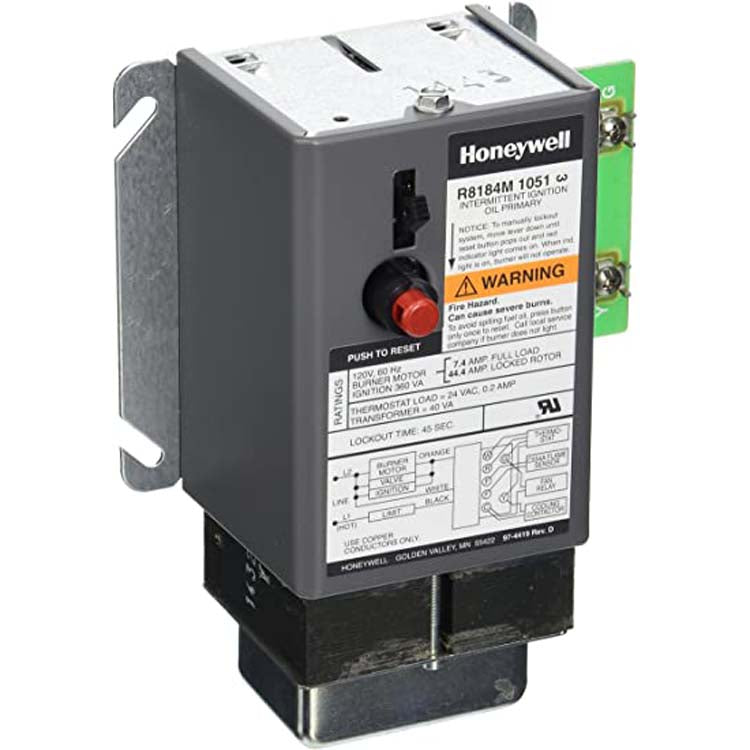

Resideo R8184M1051/U Burner Control Oil Relay Primary with 45 Second Lockout and Transformer for 4x4 Inch Junction Box

Product Description

The RESIDEO Burner Control Oil Relay Primary R8184M1051/U is engineered for effective burner management. It features a 45-second lockout to prevent fuel flow issues, enhancing safety during operation. This relay control can be mounted on a standard four by four inch junction box or directly on the burner housing, providing installation flexibility.

• Designed with a 45-second safety lockout
• Includes a transformer for easy setup
• Compatible with direct mounting options for ease of installation

Product Highlights

This burner control ensures precise operation in various industrial environments.

Product Information

Standard Information

• Brand: Resideo
• MPN: R8184M1051/U

Technical Specifications

• Voltage: 120/240 VAC
• Fuel Type: Oil
• Cycle/Hertz: 60 Hz
• Weight: 2.95 lbs
• Mounting: Standard 4 x 4 in. junction box
• Operating Temperature Range: -40°F to 130°F
• Full Load Amps: 3.7-7.4
• Ignition Type: Intermittent
