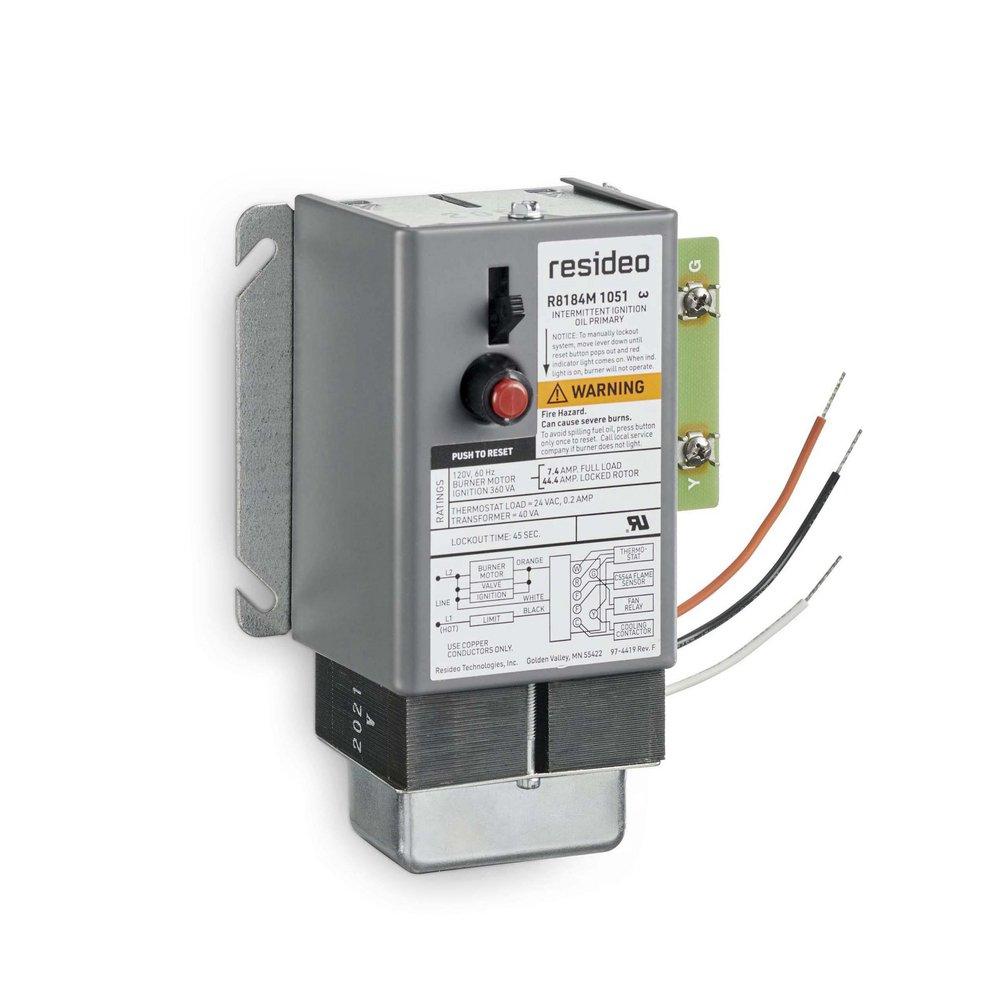

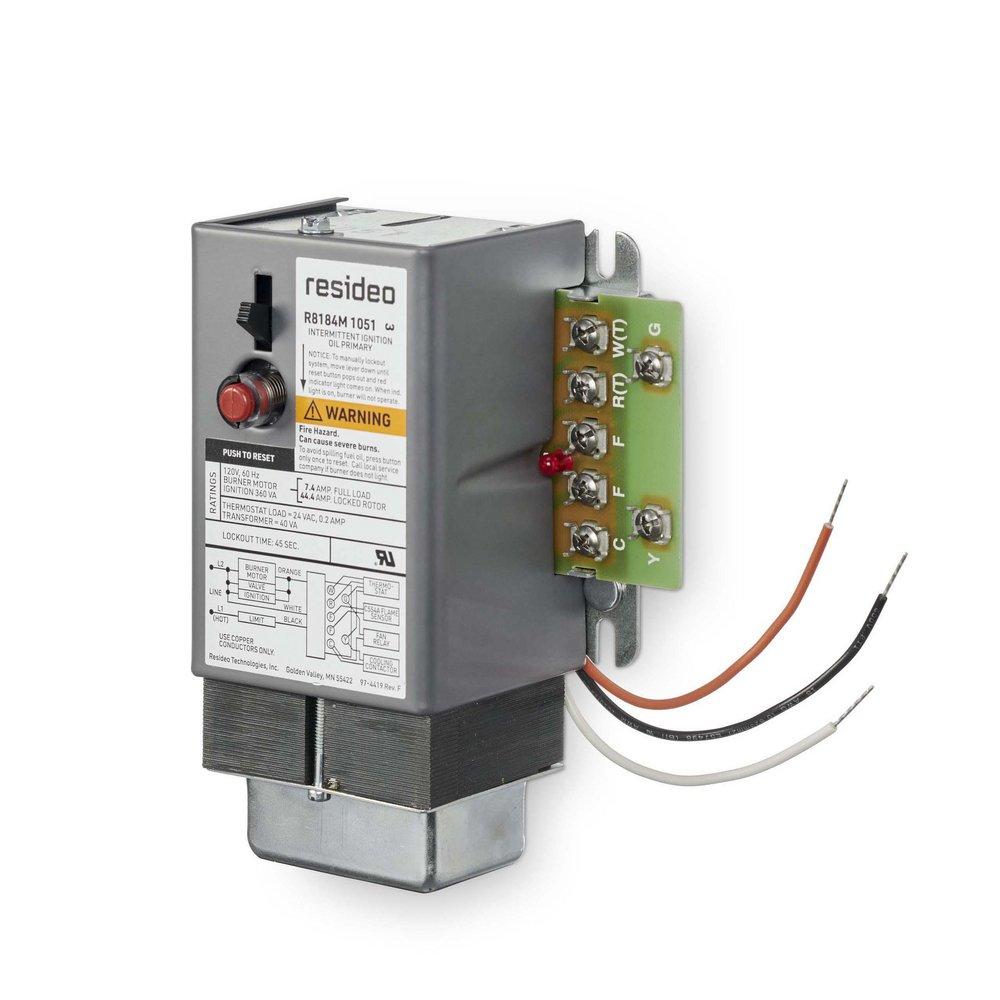

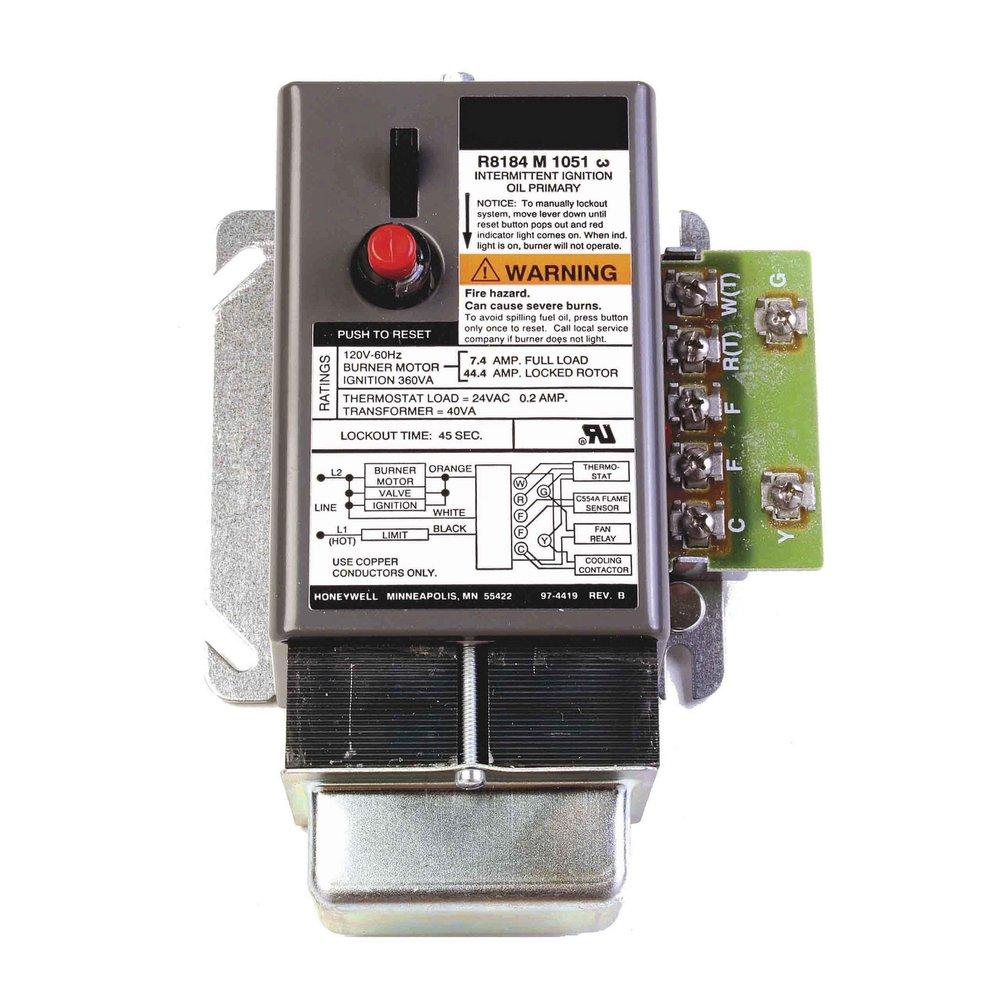

Resideo R8184M1051 R8184 120 V Oil Burner Control

Product Description

The Resideo R8184M1051 is an oil burner control designed for reliable performance. This control unit operates at one hundred twenty volts and manages the ignition transformer while ensuring safety through its solid-state flame sensing circuit.

• Solid-state flame sensing circuit for reliable operation
• External button allows for manual reset after safety lockout
• Mounts easily on standard junction boxes

Product Highlights

This oil burner control unit features an intermittent ignition system that ensures the burner operates efficiently. The lockout timing is set at forty-five seconds, providing safety and functionality.

Product Information

Standard Information

• Brand: Resideo
• MPN: R8184M1051

Technical Specifications

• Dimensions: Four and three-eighths inches high x four and one-eighth inches wide x two and one-half inches deep
• Electrical Rating Full Load @ 120 Vac: Seven point four Amps
• Electrical Rating Full Load @ 240 Vac: Three point seven Amps
• Locked Rotor @ 120 Vac: Forty-four point four Amps
• Locked Rotor @ 240 Vac: Twenty-two point two Amps
• Temperature Range: Minus forty degrees Fahrenheit to plus one hundred thirty degrees Fahrenheit
• Ignition Type: Intermittent
• Power Consumption Running: Six point five Amps
• Power Consumption Start: Nine Amps
