RESIDEO BRAUKMANN R8184G4082 CONTROL BOARDS
RESIDEO BRAUKMANN Resideo R8184G4082 Protectorelay Oil Burner Control 45 Seconds Lock Out Timing With Remote Alarm Dry Contacts R8184G4025
RESIDEO BRAUKMANN Resideo R8184G4082 Protectorelay Oil Burner Control 45 Seconds Lock Out Timing With Remote Alarm Dry Contacts R8184G4025
RESIDEO BRAUKMANN R8184G4082 CONTROL BOARDS
Resideo R8184G4082 Protectorelay Oil Burner Control 45 Seconds Lock Out Timing With Remote Alarm Dry Contacts R8184G4025
Resideo R8184G4082 Protectorelay Oil Burner Control 45 Seconds Lock Out Timing With Remote Alarm Dry Contacts R8184G4025

Resideo R8184G4082 Protectorelay Oil Burner Control 45 Seconds Lock Out Timing With Remote Alarm Dry Contacts R8184G4025

Brand: RESIDEO BRAUKMANN
SKU: R8184G4082
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

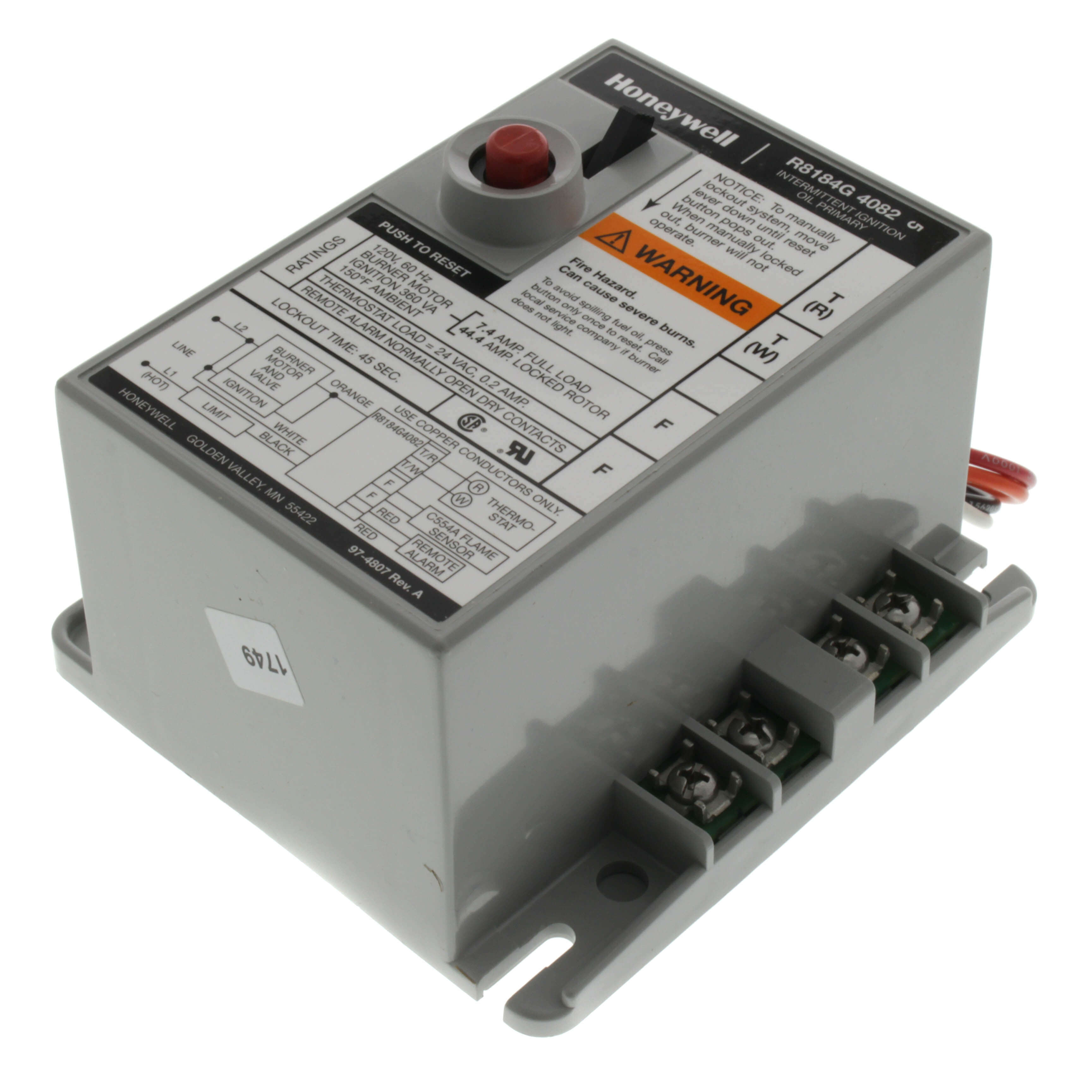

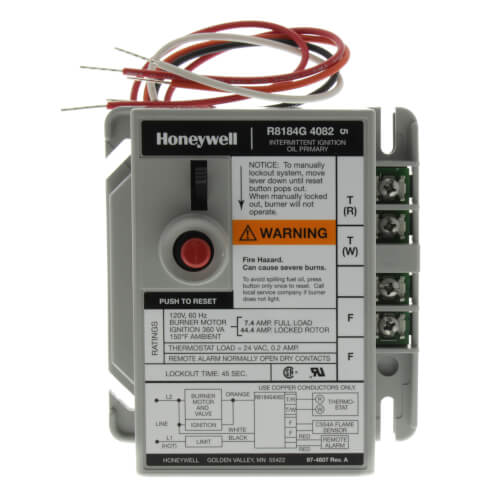

The Resideo R8184G4082 Protectorelay Oil Burner Control provides advanced, non-recycling operation for intermittent ignition oil burner systems. Utilizing solid state technology for precise, reliable performance, this product is designed with safety and efficiency in mind.

  • Enhanced with a LED indicator for clear lockout status.
  • Features a built-in safety switch with an external reset button.
  • Supports remote alarm dry contacts for extended functionality.

Product Highlights

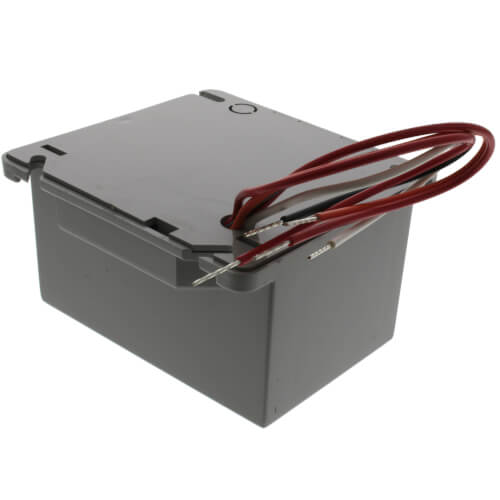

Perfect for optimizing oil burner operation, the Resideo R8184G4082 control unit is equipped for both standard junction box mounting and direct burner housing installation. It includes a manual trip lever to ensure burner shutdown for maintenance, enhancing overall safety during use.

Product Information

Technical Specifications
Ignition Type
Intermittent
Timing, Safety Switch
45 seconds
Electrical Ratings (Full Load)
7.4 A at 120 Vac, 3.7 A at 240 Vac
Electrical Ratings (Locked Rotor)
44.4 A at 120 Vac, 22.2 A at 240 Vac
Alarm Load Ratings (Pilot Duty)
75 VA at 120/240 Vac, 25 VA at 24V
Temperature Range
-40 F to +130 F
Dimensions
4 3/8 inches high x 4 1/8 inches wide x 2 1/2 inches deep
