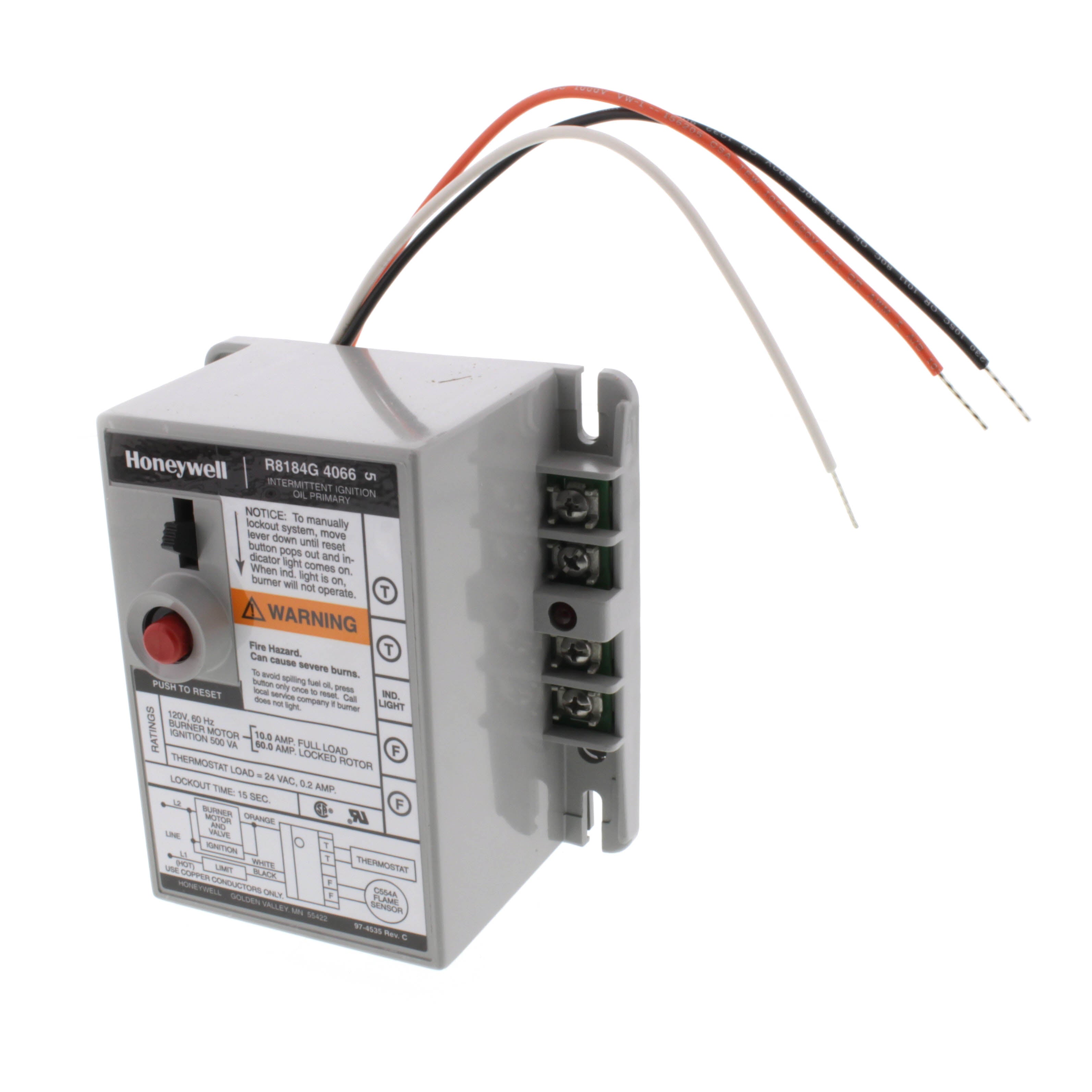

Resideo R8184G4066 Protectorelay 240V Oil Burner Control with 15 Seconds Lock Out Timing

Product Description

The Resideo R8184G4066 is a 240V protective relay designed for oil burner control. It provides essential functionality in heating applications, ensuring efficient operation. With solid-state flame sensing technology, this device controls the oil burner, oil valve, and ignition transformer in response to heating needs.

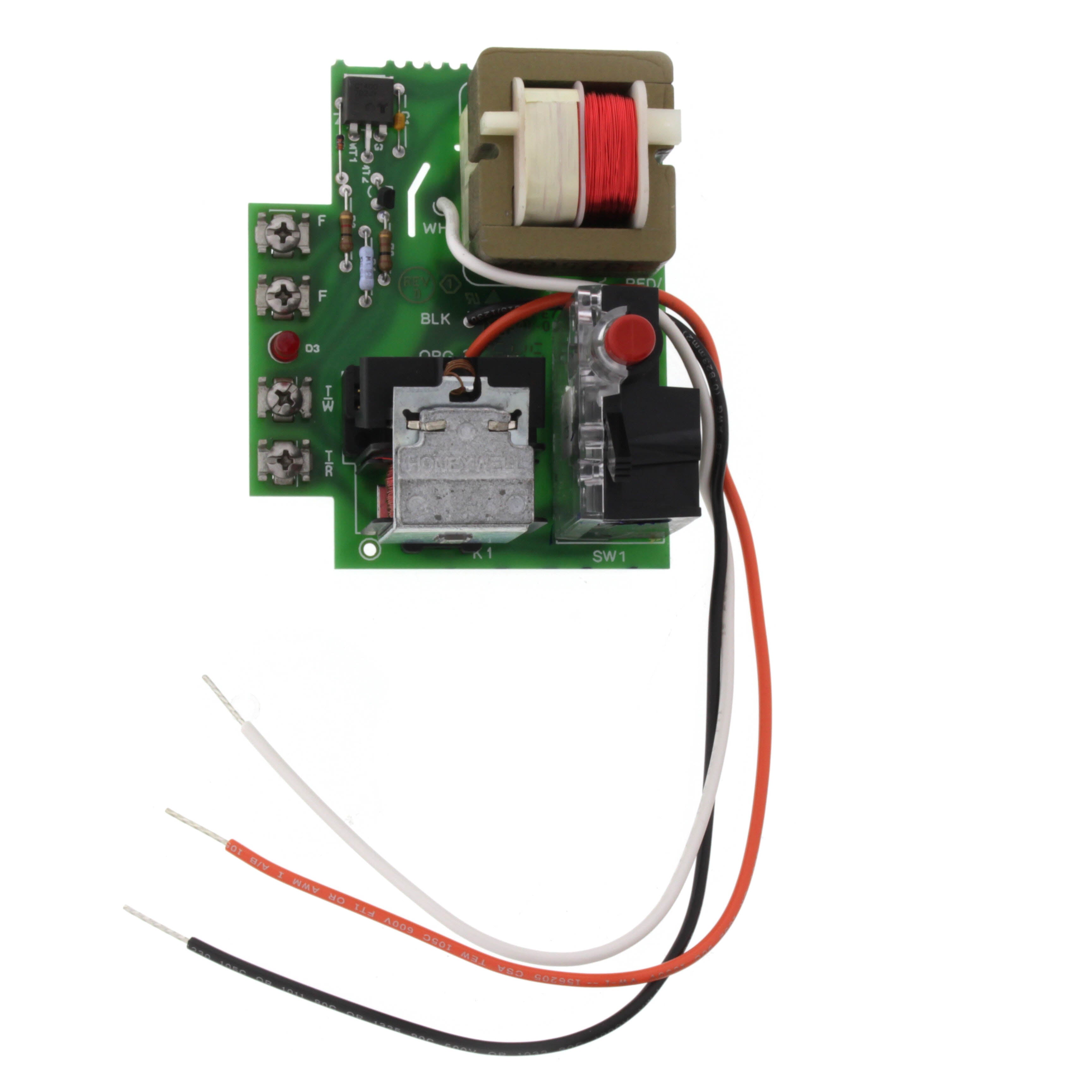

• Features a solid state flame sensing circuit
• Manual trip lever for safety switch
• LED indicator shows system lockout status

Product Highlights

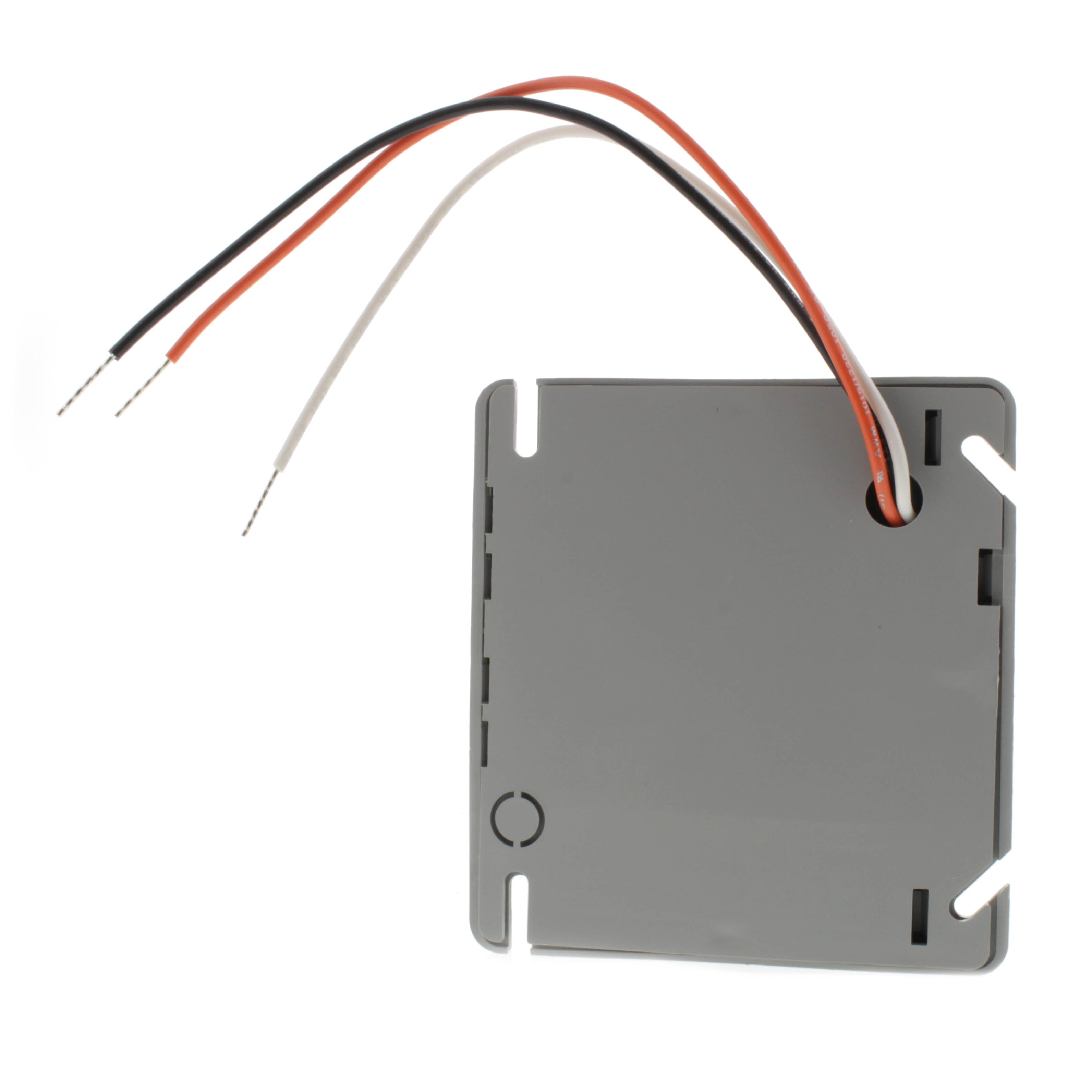

The R8184G4066 is built to provide reliable control in oil-fired heating systems. It features automatic operation and is designed for mounts on standard junction boxes or directly on burner housings.

Product Information

Standard Information

• Brand: Resideo
• MPN: R8184G4066

Technical Specifications

• Power Supply: 240V
• Lockout Timing: 15 seconds
• Dimensions: 4.375 inches high x 4.125 inches wide x 2.5 inches deep
• Electrical Ratings: 7.4 A at 120 Vac; 3.7 A at 240 Vac
• Temperature Range: -40°F to +130°F
