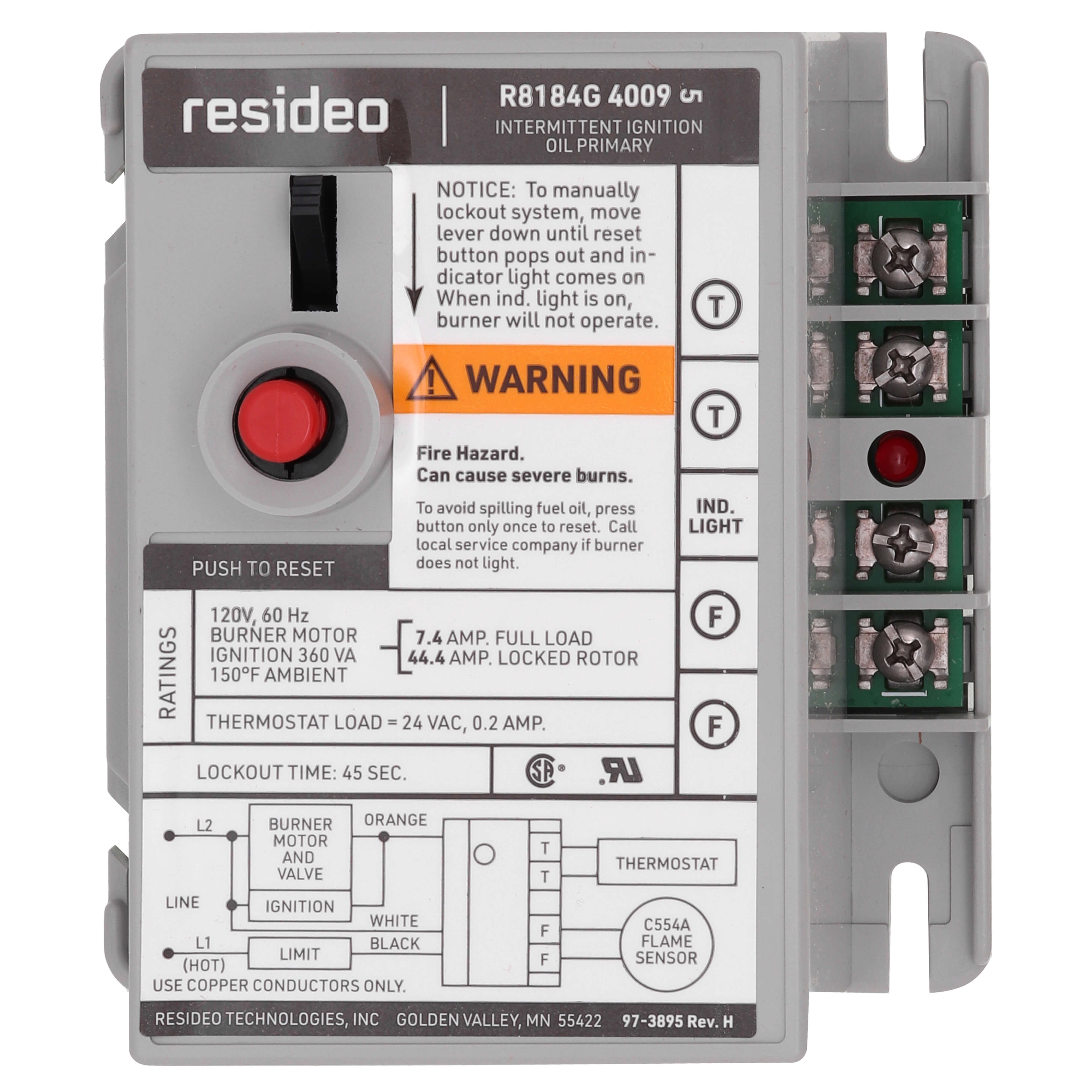

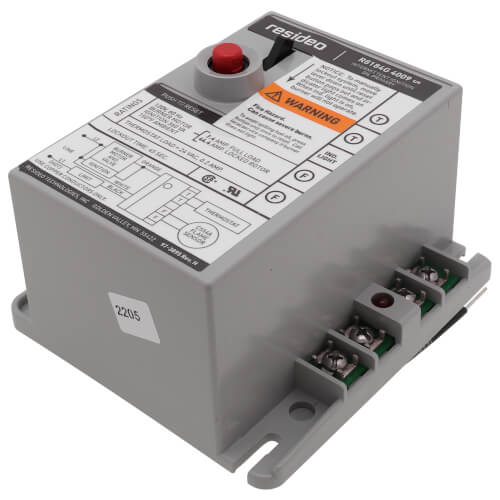

Resideo R8184G4009 Protectorelay Oil Burner Control with 45 Seconds Lock Out

Product Description

The Resideo R8184G4009 Protectorelay Oil Burner Control ensures efficient management and safety of oil burner systems with a 45-second lockout timing. Designed to control oil burner, oil valve, and the ignition transformer, this product is essential for heating systems requiring precise operation control.

• 45-second lockout feature to enhance safety
• LED indicator for system lockout status
• Robust construction suitable for industrial environments

Product Highlights

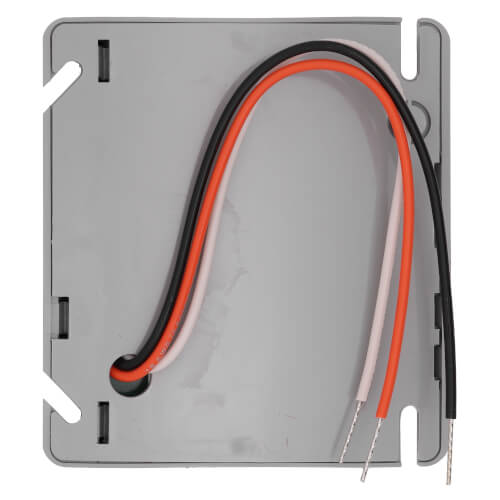

This control unit is equipped with a solid state flame sensing circuit and a manual trip lever for safety during maintenance. It is designed to mount on standard 4 x 4 inch junction boxes or directly on burner housings.

Product Information

Standard Information

• Brand: Resideo
• Model: R8184G4009

Technical Specifications

• Dimensions: 4 3/8 inches high x 4 1/8 inches wide x 2 1/2 inches deep
• Electrical Ratings (Full Load): 7.4 A @ 120 Vac; 3.7 A @ 240 Vac
• Temperature Range: -40 F to +130 F
• Ignition Type: Intermittent
• Safety Features: Manual trip lever, LED lockout indication
